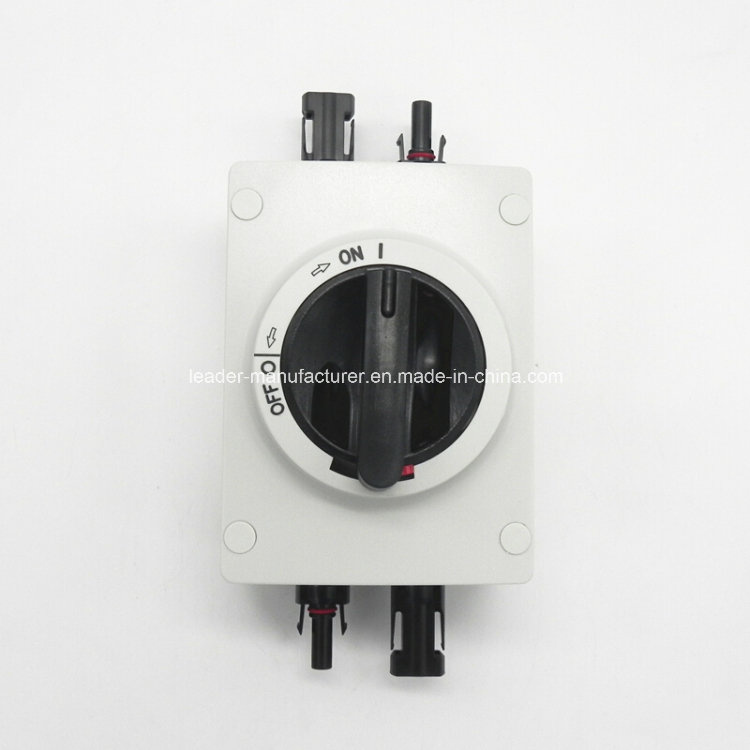

DC1000V 4 Pole Solar DC Isolator Switch

Prod Model:	005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof:	IP66
AMP:	10-32A
Rated Voltage:	600-1500V DC
Poles:	2-4 Poles
Wiring:	Upside Input, Downside Output
Wiring Methods:	Can Mc4 Connector
Color:	Grey White
Working Temperature:	-5 Degree-+60 Degree
Assembly:	Can Be Come with Mc4 Connector
Type:	High-voltage
Structure:	Single-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Double Ground
Run:	Plug-In
Switching Mode:	Double-Throw Type
Certification:	SAA TUV
Number Of Poles:	2/3/4 Poles
Series:	2/3/4
Common Model:	Siso
Brand:	Leader

Product Description

Safety design:

We offer a comprehensicve range of isolating switches designed with safety in mind.
In stand-alone and enclosed formats, this switch range are padlockable and available in yellow/red or grey/black makeing it ideal for any electrical isolation requirement, such as repair, maintenance, installation and inspection.


Features:

Compact and suitable where space is limited.
DIN rail mounting for easy installation.
Load-breaking up to 8 times rated current making it ideal for motor isolation.
Double-break with silver rivets- superior performance, reliability and long lasting.
Padlockable handle- tamper-proof.
Highly visible red/yellow handle.
DC1000V/DC1200V, 10A, 16A, 20A, 32A.


Technical parameters:

Rated Voltage	DC600V, DC900V, DC1000V,1500V
IP Rating	IP66
Connection Type	MC4, M20, M25
Working Temperature	-5 °C-+60 °C
Standard	IEC 60947-3

Our service:

We will give you a best service.
1) Reply inquiry in 24 hours.
2) Answer your questiong detailed.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which items you are interested & the reasonable price will be provided you upon.
