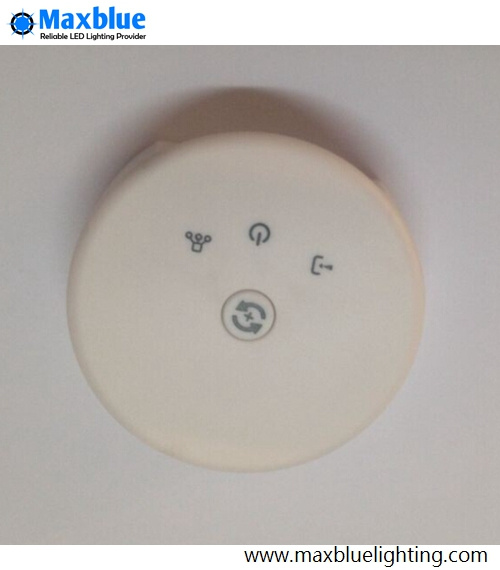

DC12-24V RGB RGBW WiFi LED Controller

Prod Model:	MB-UFO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Voltage:	DC12-24V
Output Current:	4A*4
Wattage:	162W/384W
Connection Mode:	Common Anode
Application:	LED Products
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Not Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AAA Battery
Type:	Touch
Voltage:	12-24V

Product Description

NEW Magic UFO - RGB RGBW LED WiFi Controller DC12-24V for intelligent led light, compatible with ISO Android system

Summarize
Welcome to use LED WiFi Controller, this controller is designed for low voltage(12V-24V) light, such as 12V LED strip,12V panel light etc. After installation and settings,your phone (IOS or Android system) can control light directly.
 The remote control distance reachs 50 meters indoor and more than 100 meters outdoor

I. Features
(A) RGB/RGBW,16 million colors, built-in 20 dynamic models,DIY models,music modes
(B) divide into groups function
(C) timing function, automatic turn on/off as your setting time. Set any dynamic models
(D) allocate to router by one key"WPS"
(E) after connecting router,controller's wifi signal will be hided automatically to prevent hotlinking
(F) memory function,keep same status as last time after power off
(G) single control by phone  or integrated control by router
(H) operating platform:requires Android 2.3.3 or later,IOS 6.0 or later

2. Specification:
Voltage: DC12V-DC24V
Wattage: DC12V:162W; DC24V:384W;
Output current: 4A*4
Connection: common  anode

Voltage	DC12V-DC24V
Wattage	DC12V:162W; DC24V:384W
Output current	4A*4


3. Wiring
Input: Terminal  or DC connector
V+:  + of power
V-: - of power

Output:
 V+: + of light
 R: red
G: Green
B: Blue


4. Supporting system

Android system
Name: Magic UFO - WiFi Controller
System: support Android 2.3 above version, with wifi  function
Install: login in Google Play , search " Magic UFO - WiFi Controller", download and install;

IOS system:
Name: Magic UFO-WiFi
System: Support  IOS 6.0  and above version
Install: login in App Store, search"Magic UFO-WiFi", download and insta
