| Prod Model: |
KL-K103LA |
| Model Name: |
Kl-K103la |
| Channel: |
1 |
| Operating Voltage: |
DC9-12V |
| Static Current: |
16mA |
| Compatible Remote Control: |
Kl5000-1/2 |
| Frequency: |
434MHz / 868MHz / 915MHz/ Customized |
| Receiver Sensitivity: |
-148dBm |
| Encoding Type: |
Private Learning Code |
| Work Mode: |
Momentary, Latching, Toggle |
| Output Way: |
Dry Contact |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Type: |
1 Channel |
| Transmission Distance: |
5km |
| Voltage: |
DC6/9/12/24V |
Product Description

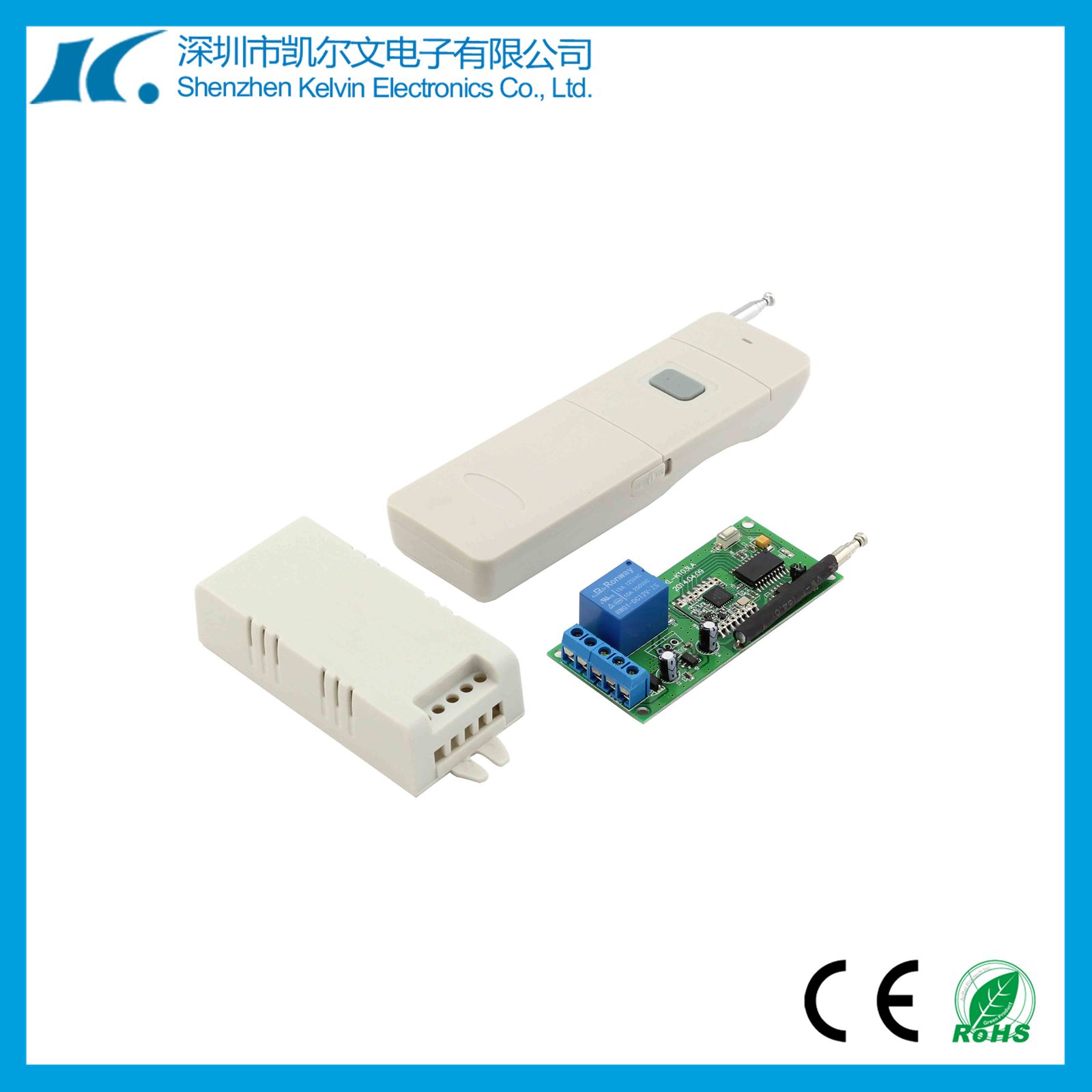

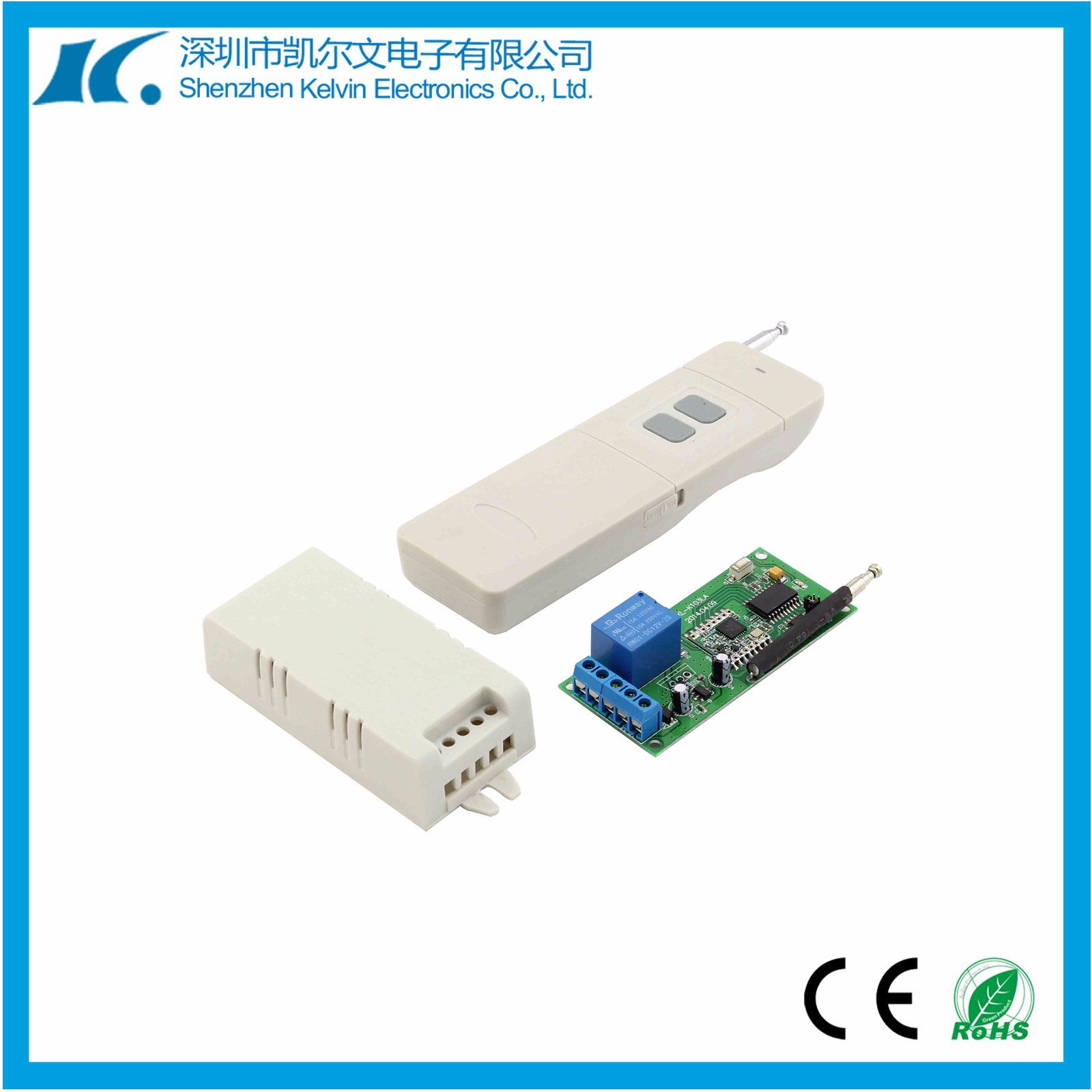

DC12V 1 channel 5km rf remote switch for light KL-K103LA
User Manual & Tech data
KL-K103LA is our currently developed super far distance bidirectional remote control series. According to
number of channels, KL-K103LA has 6 different channels 1,2,4,6,8,12. The receiver module switch using
spread spectrum communication technology, greatly enhancing the anti-jamming performance. U.S. imports of chips, strict testing to ensure the quality of reliability
The remote control and a matching receiver module, its measured distance can reach more than 5000m.
Mostly use light,signal, irrigation and door opener and others
If you select bidirectional mode, KL5000-N (N=1.2.4.6.8.12) can match our instantly receive feedback signal from the receiving device.
Tech Data:
DC 12V 1-Ch 6km Remote Control Switch KL-K103LA
| Input | DC12V (AC220V/380V is customized) |
| Quiescent Current | 16mA |
| Working Current | 65mA |
| Max Load | 7A (Relay Contact) |
| Channels | 1 |
| Working Frequency | 434MHz (Customize 868MHz / 915MHz, shorter distance.) |
| Receiving Sensitivity | 148dBm |
| Modulation Type | FSK+LORA |
| Coding Type | Private Learning Code |
| Temperature | Temperature -10ºC~70ºC |
| Dimension | 95*40*25mm |
Operation Method:
1.Match Code: Press learning button K1 for 3seconds, LED indicator lights, and press any button on the remote control. When LED flashes twice, matching is done.
2.If need to add more remote controls, please repeat step 1 and max 20pcs can be matched.
3.Delete Code: Press K1 and hold on, do not release until LED flashes 3 times, and then delete code successfully.
4.Select output mode:
(By adjusting DIP switch)
(1)DIP switch No.1→ ON, Toggle Mode;
(2)DIP switch No.2→ ON, Latching Mode;
(3)Both are not ON, Momentary Mode.
(4)Both are ON, Setting is invalid, no output.
5.DIP switch NO.3 is used to select if you need feedback signal. If yes, push it to ON (corresponding S1 on remote control). The remote control will sound "Di…" after receiving the feedback from the receiver. This way is used to let the user know if the receiver works well.
Working Mode:
1. Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.
2. Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.
3. Latching: Press remote button A, the relay A is on, B is off. Press button B, the replay B is on, A is off.
Wiring Way & Diagram:
G=Common, K=Normally Open, B=Normally Closed
Please refer to below diagram as wiring.
