DC12V 10A 2CH 433MHz Wireless RF Remote Control Switch Yet402PC-Jr

Name: DC12V 10A 2CH 433MHz Wireless RF Remote Control Switch Yet402PC-Jr
Brand: all-electronics-online.com
SKU: 836365305
Availability: InStock
Rating: 4.5 (88 reviews)

Price:	US $ 3.55-5/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YET402PC-JR
Working Temperature:	-40°c - +80°c
Sensitivity:	≥-105dBm
Use Range:	Industrial ,Car,Motorcycle,Door Opener,Windows Con
Oscillation Resistance:	Under Your Requests
Remote Controlcapacity:	32
Ransmitting Frequency:	315m/433.92m/Oters
Static Working Current:	≤6mA
Control Voltage:	AC/DC 12V/24V
Channels:	2 Channel
Receiving Sensitivity:≥:	-112dBm
Application:	Alarm
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Voltage:	12V/24V
Battery Type:	No Battery

Product Description

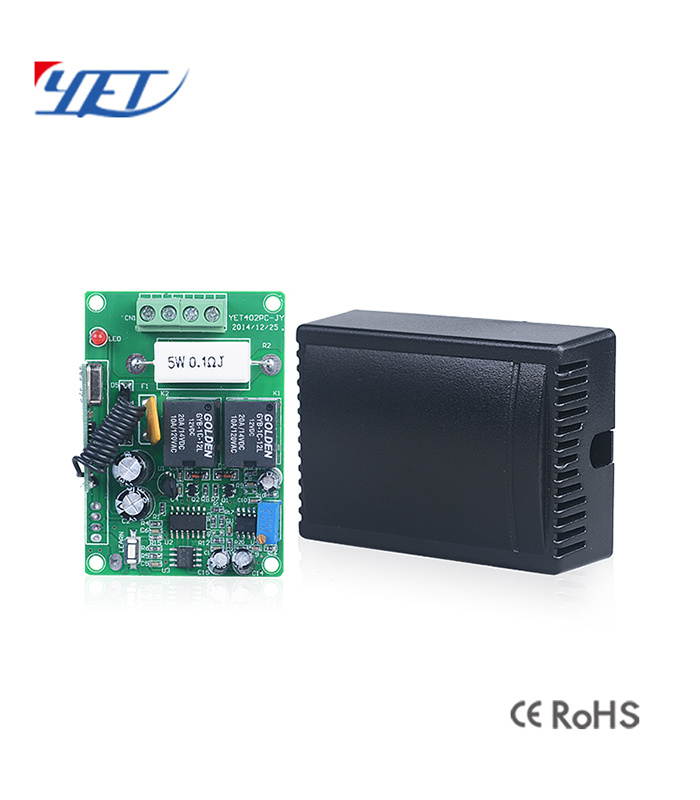

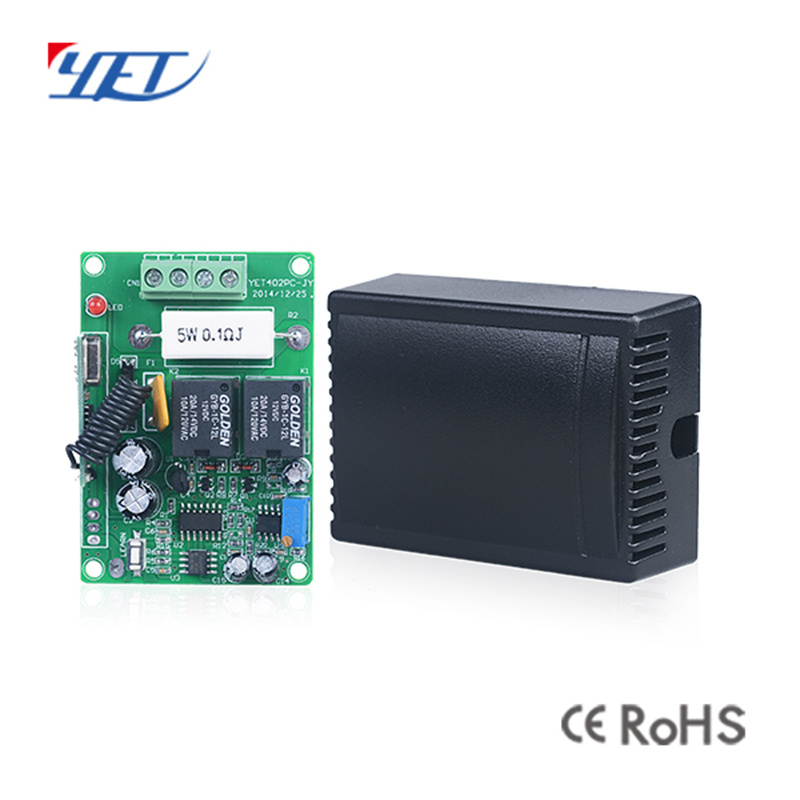

DC12V 10A 2ch 433mhz Wireless RF Remote Control Switch YET402PC-JR

Use range:

Our remote control widely used in garage door ,rolling door ,electronic gate,led light,window industral control ,home appliance,car alarm system, home/store anit-theft alarm,other industrial control and so on.

12-24V DC Universal Remote Control Receiver 433 Rolling Code YET402PC

1. Brief introduction
YET402PC-JY through intelligent processing internal circuitry to achieve DC motor forward and reverse control and motor automatic overload protection. Mainly used in electric doors, windows, gateways, lifts and security industries.
Supporting the use of only achieved after learning remote control.

2.Motor over-current protection
If the motor is running it encountered obstacles so that current suddenly increases and reaches a certain limit, the controller will automatically shut down the motor, to achieve personal property and motor protection.
Current limit protection can be adjusted by the adjustable resistor, clockwise adjustment knob, adjustable resistor current protection limit increases; adjustable resistance knob counterclockwise to adjust the current limit protection is reduced.

3. Learning way and steps
a. Press learning key of receiver-the pilot lamp light-release learning key and pilot lamp extinguish , indicate enter into the status of learning.
b. Press any button of the remote control, indicate learning success as the pilot lamp flash 5 times and automatically exit learning state. Receiver automatically exit learning state if you do nothing in 32 seconds. (Can store up to 30pcs this type remote control)
Note: please remove the memory of receiver if you lost the learned remote control, and learned new remote control again so that the lost one can not work.

5. Main Technique Data

Working voltage	DC12V/ 24V (optional)
Static working current	≤7mA
Working temperature	-40ºC to +80ºC
Receiving sensitive	≥-105dBm
Working frequency	315MHz,433MHz (optional)
Relay capacity	10A 250VAC or 10A 30VDC
Motor over current limit	0.15-0.3A (can be customized)
Maximum storage for transmitter	30pcs of learning or fixed code; 6pcs of rolling code
Size	74.5mm54.5mm27mm
