DC12V 4 Gang Switch Panel Rocker Switch Panel

Prod Model:	DC12V 4 Gang Switch Panel Rocker Switch Panel
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Vehicle
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: MAI YU
Model Number: MY-AP4S/P
Max. Current: 10A\20A
Max. Voltage: 12V\24V
Mechanical Life: 10000cycles
Material:: ABS
Type:: Breakers
LED Color:: Red/Green
Packaging & Delivery

Packaging Details:	packing with plastic box and card, 60pcsin a brown carton
Delivery Detail:	15~20days after payment

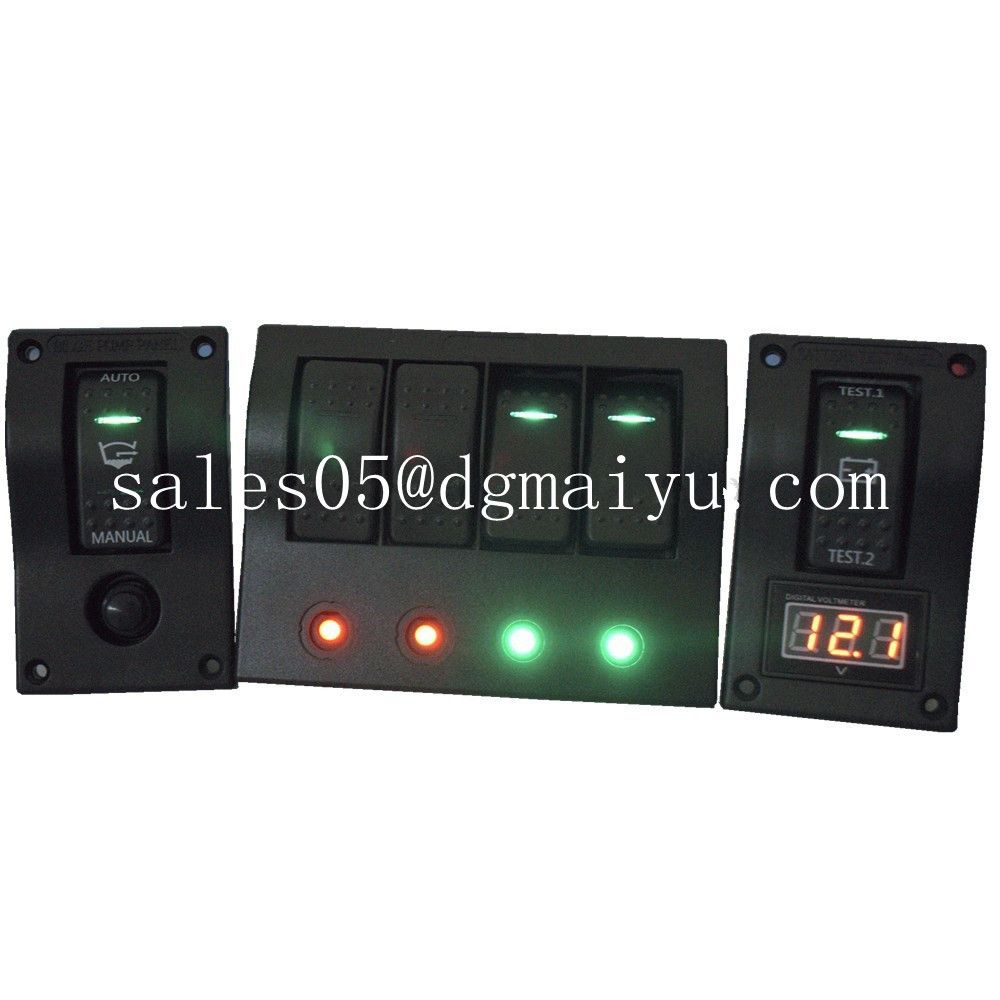

Black DC12V 4 Gang Car Boat Switch Panel with LED Light Rocker Circuit Breakers

Good design,perfect for your machine
High quality,Made of UV Stabilized Plastic
Each switch comes with LED indicator
With rubber seal-cap to keep it water-tight,best for marine
Overload protection
UL approved
Competitive price
SplashProof,anti-corrosion
Easy to install,can be  installed horizontally or vertically

Specification:
Waterproof LED Backlight 4 Gang  Switch Panel
Material Description:ABS
Led:red or green
Installation:Pre-wired
Switches Available:4 Gang
Amp Rating per circuit:15amp Max
Rocker Switch:4
Breaker:4(10A x 2;15A x 2)
Loop Circuit:3(ON-OFF); 1((ON)-OFF,This is for horn)
Switch System: Water-resistant enclosed  Rocker switch
Rating:DC 12V 20A,24V  10A
Dielectric Strength:AC 1500V 1minute
Operating Temperature:-25degree to 80degree
Electrical Life:10000 make and break cycles  at full load
IP Rating:IP68
UL approved
Dimensions: 5.1"x3.9"

Included:
 - (1) 4-Gang LED Switch Panel
 - (60) Labels for Easy Identification of Switches
 - (1) Cover Plate
 - (1) Silicone Gasket
 - (4) Screws
 - (1) PCB+LED
 - (4) Breakers
