| Prod Model: |
KL506 |
| Buttons Sum: |
4 |
| Operating Current: |
10mA |
| Operating Frequency: |
315MHz / 433.92MHz / Customized |
| Modulation Way: |
Ask/Ook |
| Ambient Temperature: |
-20ºC ~ +50ºC |
| Encoding Type: |
Fixed, Learning Code |
| Encoding Chip: |
Encoding Chip |
| Color: |
Black |
| Use: |
Cars, Garage Doors , Gates Doors, Alarm Systems Et |
| Weight: |
20g |
| Application: |
Special Equipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
12V |
| Material: |
Plastic |
Product Description

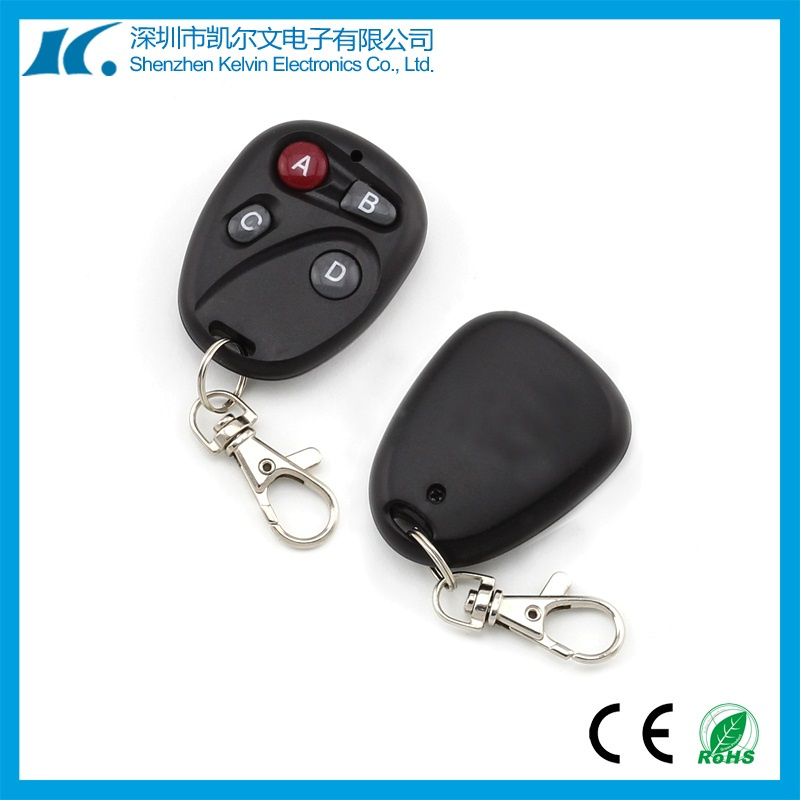

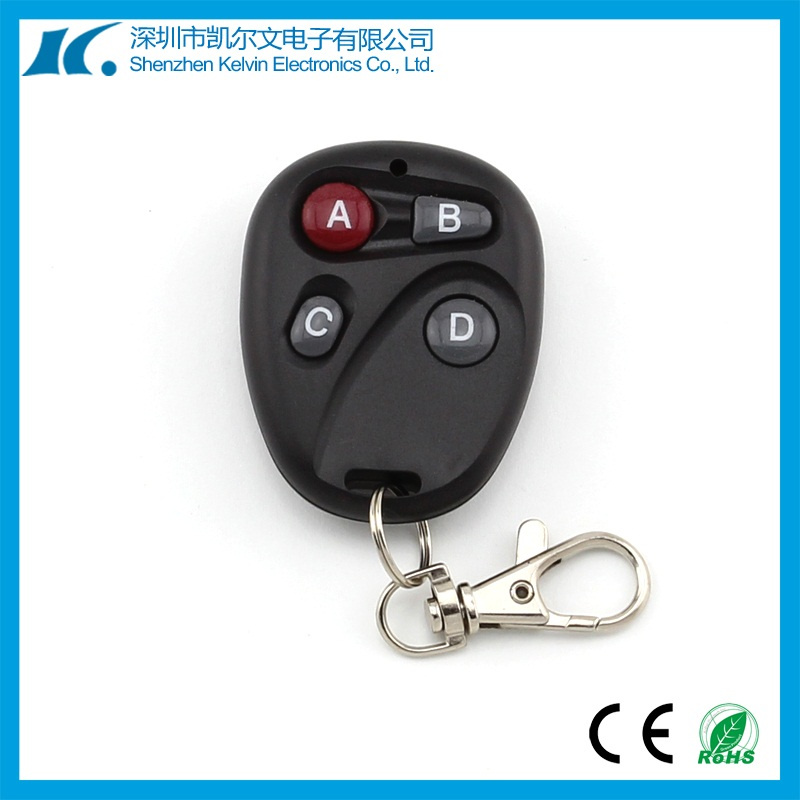

DC12V 433MHz Universal Low Power RF Remote Control Kl506Technical Specifications:| Antenna Type: | External |
| Modulation Type: | Reliable ASK technology / FSK technology with 868MHz & 915MHz |
| Working Voltage: | DC12V |
| Operating Current: | 10mA |
| RF Output Power (ERP) @433MHz: | 3-10mW |
| Transmitting Distance: | 50-150m (150-500 ft.)* |
| Encoding Type: | Fixed Code (2260, 2262, HT12E, etc.), Learning Code (1527, 527, RT1587, etc.), Rolling Code (HCS301)** |
| Encoding Method: | Soldering or by Learning code - Fixed Code / Auto code learning - Learning Code and Rolling Code |
| Frequency: | 315MHz / 433MHz, 868MHz / 915MHz |
| Channel / Button Number : | 4 |
| Dimension: | 52*40*14mm |
| Weight: | 23.0g |
| Operating Temperature: | -20° to 72°C (-4° to 161.6°F) |
| Enclosure Material: | As shown in product photo, plastic or metallic |
| Other: | Sleek new case with flashing LED transmission indicator, handsome key chain ring provided |
| Manufacturing: | High-quality SMT manufactured |
| Certificate: | CE, R&TTE, FCC compatible*** |
Shipping1) Express: DHL, FedEx, UPS, TNT, EMS, etc.
2) By air
3) By sea
4) By special line
Depends on buyer's requirement.
FAQ1) What is your warranty period?
Generally, we provide 1 year warranty for all our products unless otherwise mentioned. (Some are 2 years.)
For DOA (Defective On Arrival) items, which will be replaced or refund, please inform us within 3 days of arrival, please also keep all components and original packaging as further checking maybe required, faulty items must be returned for repair or exchange.
2) If i don't know how to use the products, what can i do?
Pls contact us whenever you need our help, even we are not online.
You can write email to us, or contact us byTrademanager, Skype, and other IM tools.
We are all very glad to answer your questions.

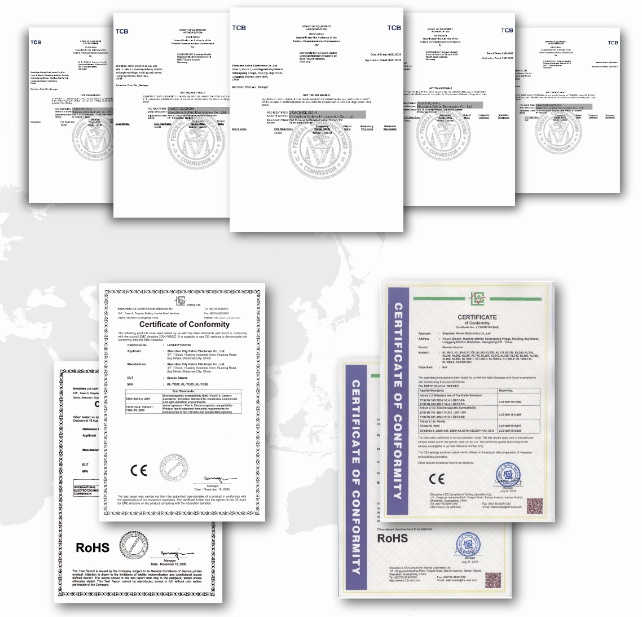

3) What certifications do you have?
Most of our products are approved with CE certification, some are with FCC.
If you have any other requriements with certifications, we also would like to help you.
Our Service1. Accept OEM, ODM &silk-screen printing you logo on the shell.
2. Response in 10 hours.
3. Experienced R&D staff.
4. Professional SMT equipments.
5. Accept payment via T/T, Paypal, Western Union, Escrow, and so on.
6. Delivery by DHL,UPS,EMS or by sea as your requirments.
Shenzhen Kelvin Electronics Co., Ltd. is one of the leading manufacturers of RF products in China. We were established in 2006, and equipped with professional R&D team and abundant technical skills.

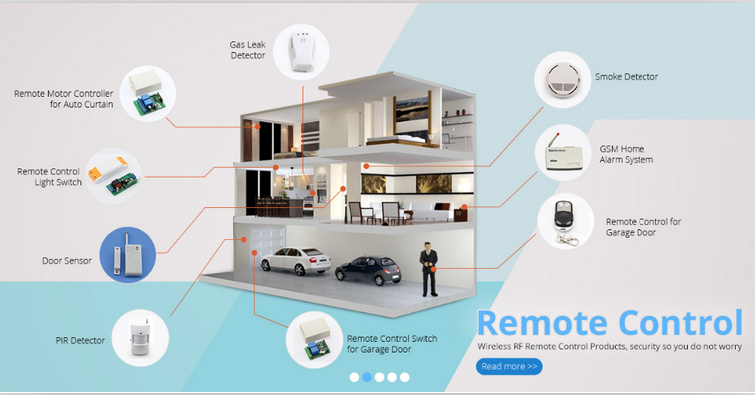

Our main business covers RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.
Kelvin always wins customers' recognition with quality and after-sales service. All items designed with Europe standard, meeting the CE and RoHS requirement. We have been ISO9001: 2000 certified since 2015. It's carried out strictly from raw material purchasing to packing and warehousing, also effectively lower down the defective rate. Besides, we are trying to make a real difference to the environment by improving our production processes and adopting environmental material, etc.
Company History: Feb 2006 Company Founded--DEC 2006 1st SMT production line--Nov 2008 1st Ce Certification--Feb 2016 Subsidiary company established
Sales performance: Turnover in 2012 Over 10million RMB--2016 Over 10million RMB
Scope of business: RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.
Prospects for development: Bright future is coming
