DC12V 8A ABS Shell Knob-Prerated Controller

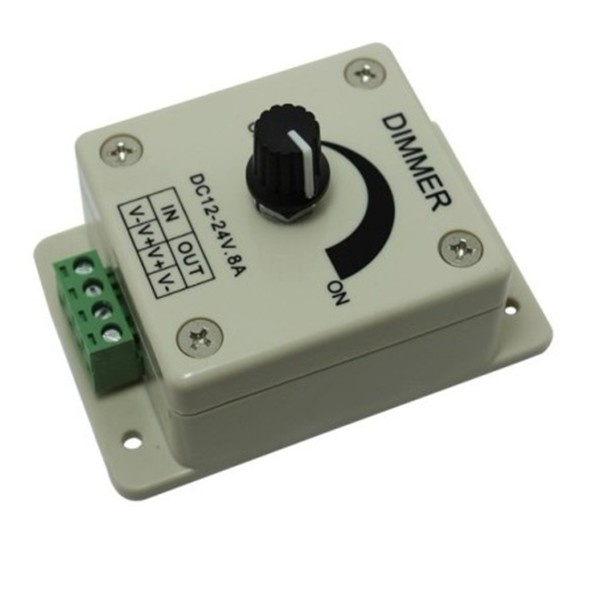

Name: DC12V 8A ABS Shell Knob-Prerated Controller
Brand: all-electronics-online.com
SKU: 808165445
Availability: InStock
Rating: 4.5 (112 reviews)

Price:	US $ 1.27-1.28/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-T1
Working Temperature:	-20-60
Output Current:	<8A
Output:	1channel
Net Weight:	60g
Application:	Air-Conditioner
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	12-24V

Product Description

Basic Info

place of origin:	Shenzhen,China	Brand name:	louita	model no.:	LYD-K
Net weight:	60g	Gross weight:	82g	output current:	<8A
color:	white	voltage:	5v,12v,24v	External dimension:	895935mm

Product Description
Single color dimmer can achieve step-less dimming. It adopts the knob control manner. According to actual needs, users can transfer the light to the appropriate brightness.

Technical Parameters

Working temperature	-20-60
Supply voltage	DC5V, 12V~24V optional (specify the required voltage on orders)
0utput	1 channel

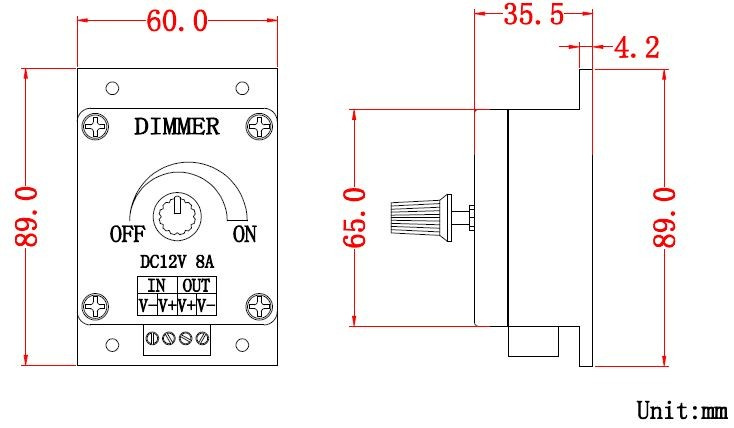

External dimension	L89W59H35 mm
Packing size	L92xW63xH62mm
Net weight	80g
Gross weight	90g
Static power consumption	<1W
Output current	<8A
Output power	5V:<40W, 12V:<96W, 24V:<192W

Direction for use Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;Adopt rotary button, its function as follows: Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.

This products Input voltage is DC12V,other input voltage are not allowed.

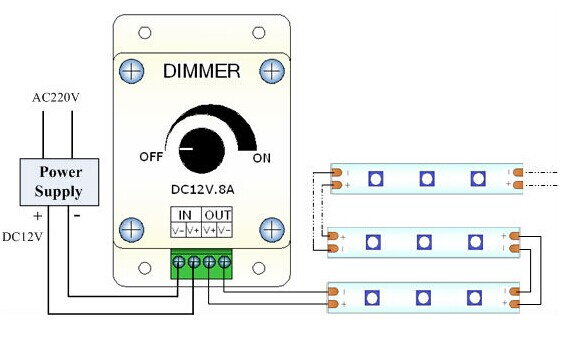

Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.Overload are prohibited.
