| Prod Model: |
QW-150MUSB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
150W |
| Surge Power: |
300W |
| Input Voltage: |
DC12V |
| Output Voltage: |
AC220V |
| Output Frequency: |
50/60Hz |
| Output Waveform: |
Modified Sine Wave |
| Format Of Plug: |
EU/German/ USA/UK/Universal/Australia |
| Housing Material: |
Aluminum Alloy |
| Size: |
115*65*38mm |
| Package: |
Box |
Product Description

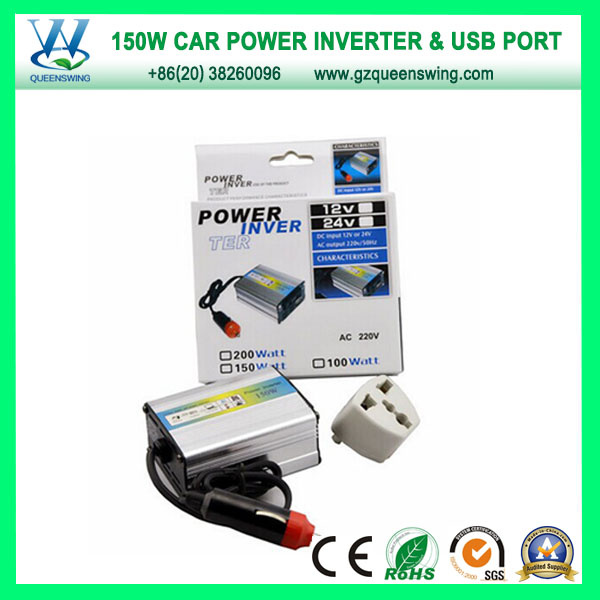

DC12V AC220V 150W Car Power Inverter with USB (QW-150MUSB)
Description:
150W Off Grid DC AC Car Power Inverter converts 12/24V DC into 110V/220V AC, Only simply plug your inverter into the cigarette lighter socket from the console in your vehicle then get power for your electronic
devices such as laptops, DC players, phone chargers etc. USB charging port offers an additional choice
for user. It can charge for digital equipments.
Features:
1. Multiple protection circuit designed, no harm for battery and machines.
2. Intelligent temperature control cooling fan, effectly prevent inverter over-temperature inside
3. Aluminium alloy housing, sturdy and durable
4. With battery clamp & car cigarette plug on 100W, 150W, 200W, 300W, 400W, 500W, 600W, 800W, & 1000W
5. With over-load, over-voltage, lack-voltage, over-temperature and short circuit protection
6. USB port with external fuse
7. Small size, light weight, easy to carry to anywhere
8. High quality, was approved CE & Rohs
Protect functions
1. Over load protection
2. Over current protection
3. Over voltage protection
4. Low voltage protection
5. Short circuit protection
6. High temperature protection
7. Reverse connection protection
Application:
Perfect to supply power to Notebook, digital camera, video camera and other appliances when you travel on the vehicle, camp, voating or other outside activities.
Supply stable power for household appliance such as TV, computer, DVD, VCD, satellite receiver, printer, light, fan, game player etc.
Also it can be widely used in the districts with unstable power or supplied Power by the solar or wind energy sources.
Warranty: 1 year.
If you can cooperate with us, we will be honored and you will benefit from:
1. The good construction warranty-1 year
2. Your client is satisfied with the right schedule and quality
3. You can get good reputation from your market and obtain more orders
4. Our professional service before and after sale
5. The free inverter sample after your first 3 orders
6. The reasonable price +1% free spare parts
7. Any question are welcomed and will be replied in 24 hours
FAQ:
1. What is Inverter?
Inverter is an electronic equipment that turn DC12V/24V/48V into AC110V/220V/230V/240V.
2. How many kinds of output wave form for Inverters?
Two kinds:
Pure sine wave Inverter: It could provides high quality AC and carry various loads, While it requires high tech and high cost.
Modified sine wave Inverter: It can load poorly not carrying inductive load, but the price is moderate.
3. How to choose a power inverter?
Mose of the electronic products are signed out their rated power, and the rated power should be less than the rated power of the power inverter.
The method of how to estimate the power(W): The total of load power should be equal to the rated power(W) of the power inverter.
About us:
Queenswing is a professional manufacture specialized in Power inverter and solar products, We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
Product category
Car Power inverter
Car Inverter with USB Port
Pure sine wave invertrer
UPS Pure sine wave inverter with charger
Modify sine wave inverter
UPS power inverter with charger
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.
Payment: Western Union, T/T or Cash.
Shipment: By sea, by air or International express -- DHL, EMS, Fedex, UPS or customer assigned.
Lead Time:
Sample orders will be delivered within 7 working days.
If order quantity below 100pcs, delivery time is 7-15 working days.
Container orders will be delivered within 15-30 working days.
Technical Parameters:
| Model | 100W | 150W | 200W | 300W | 400W | 500W | 600W | 1000W | 1200W |
| Rated Power | 100W | 150W | 200W | 300W | 400W | 500W | 600W | 1000W | 1200W |
| Peak Power | 200W | 300W | 400W | 600W | 800W | 1000W | 1200W | 2000W | 2400W |
| Input Voltage Range | 12VDC(10VDC~15VDC) or 24VDC(20VDC~30VDC) |
| Output Voltage & Frequency | AC110V/220V/230V/240V 50Hz/60Hz |
| Waveform | Modified Sine Wave |
| Lack-voltage alarm | 10VDC~10.5VDC or 20.5VDC~21.5VDC |
| Lack-voltage cut off | 9VDC~10VDC or 19.5VDC~20.5VDC |
| Over-voltage cut off | 14.5VDC~15.5VDC or 29VDC~31VDC |
| Temperature protection | ≥65ºC |
| Protect function | over-load, over-voltage, short-circuit, lack voltage, high temperature, reverse conection |
| Convert effective | ≥90% |
| Working temperature | 0ºC~40ºC |
| Cooling fan | no | yes | yes | yes | yes | yes | yes | yes | yes |
| Buzzer alarm | no | no | no | no | no | yes | yes | yes | yes |
| Size(L*W*H) | 115*65*38mm | 160*100*54mm | 200*100*54mm | 270*100*55mm |
| N.W(kg) | 0.3kg | 0.5kg | 0.7kg | 1kg |
