| Prod Model: |
F24-60 |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Joystick |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
DC/AC12V,AC380V,AC110V,AC220V,DC/AC36V |
Product Description

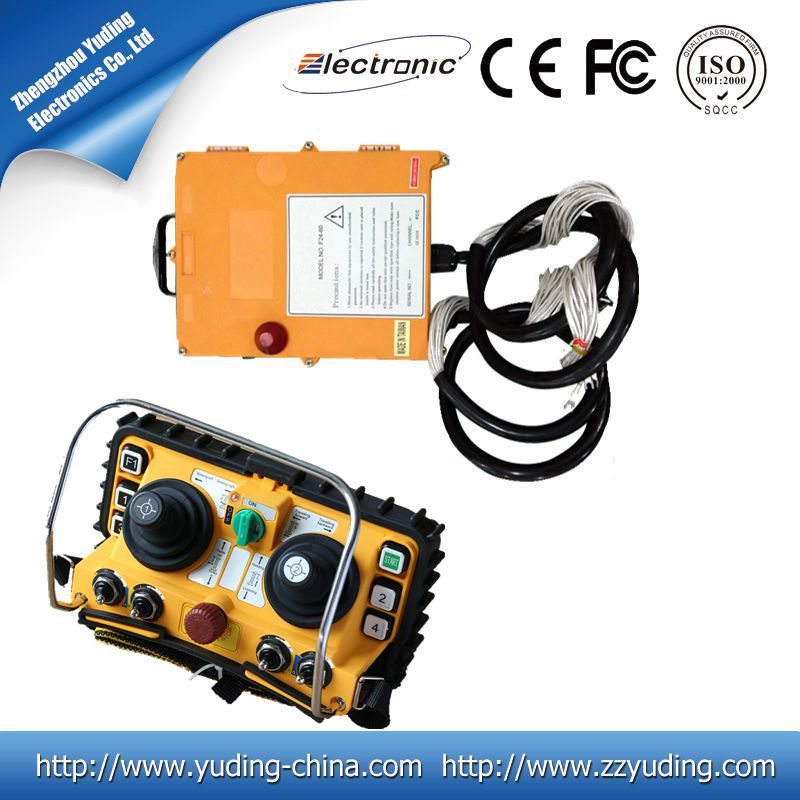

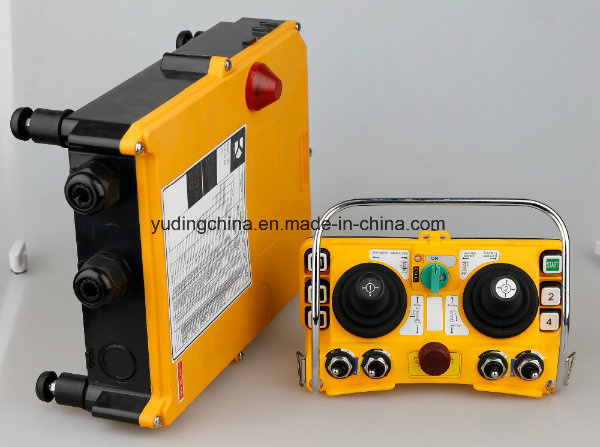

DC12V F24-60 Industrial Radio Wireless Dual Joystick Remote Controller

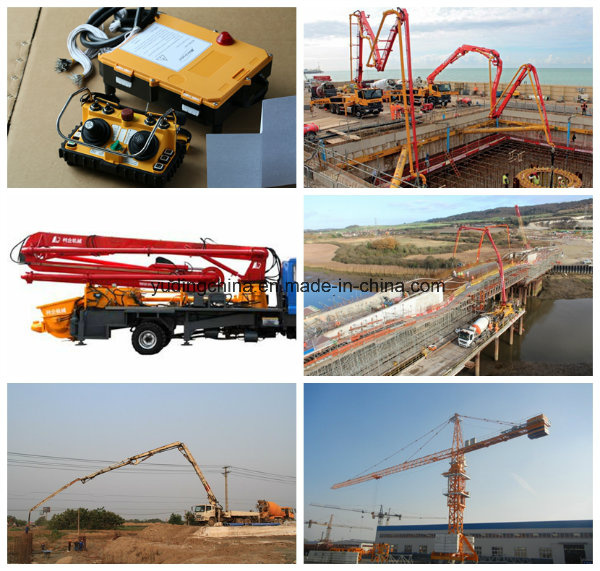

F24-60 Industrial joystick crane radio controller are used for tower crane, truck crane ,concrete pump, used concrete pump, mixer pump, easy to operate to keep workers safety.
Description:As double joystick remote control, F24-60 is one of the most advanced dual joystick remote controller on the market and it is developed in ISO9001 certificated factory with more than 15 years history.
F24-60 is designed with strong safety features. It has more than 4.3 billion unique safety code, automatic frequency tracking and locking and failure self-diagnosis, etc. Stop button is automatic. When components such as switches, joysticks, or relays are in fault, the system stops working till it is fixed.
F24-60 has extraordinary communication design-simultaneous encoding and decoding transmission, interference elimination, error detection and correction, and frequency resettable manually.

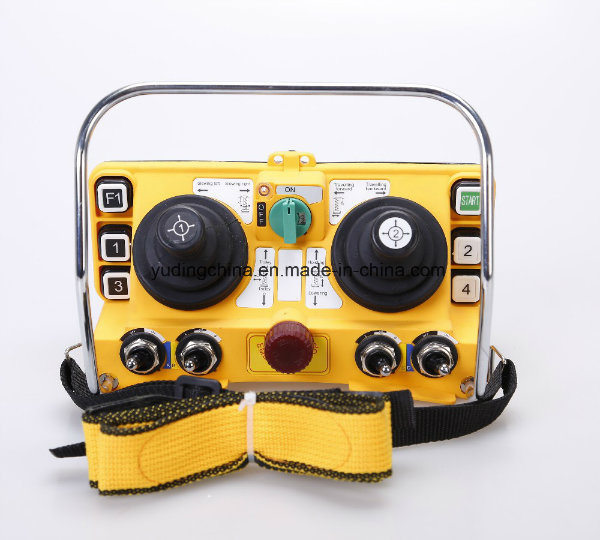

F24-60 has large amounts of programmable functions and is extensible using Windows compatible software with free update. Functions are all programmable.F24-60 joystick crane radio controller transmitter:

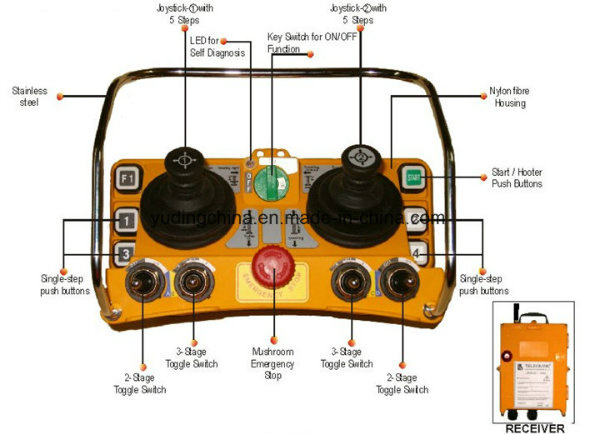

Basic Information of F24-60 transmitter:| Model | F24-60-TX-V-(E) |
| TX Size | about 21.5x10.7x9.6cm |
| TX Weight | about 1137g |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C |
| TX power Supply | Four 1.5 volts Batteries(AA Size) |
| Number of buttons | 5 single speed buttons,1 START button |
| Button Marking | English + number |
| Joystick | Two 5-steps Joysticks |
| switch | 4 selector switch |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 4.8V |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | ≤12DBm |
| Fault Detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |

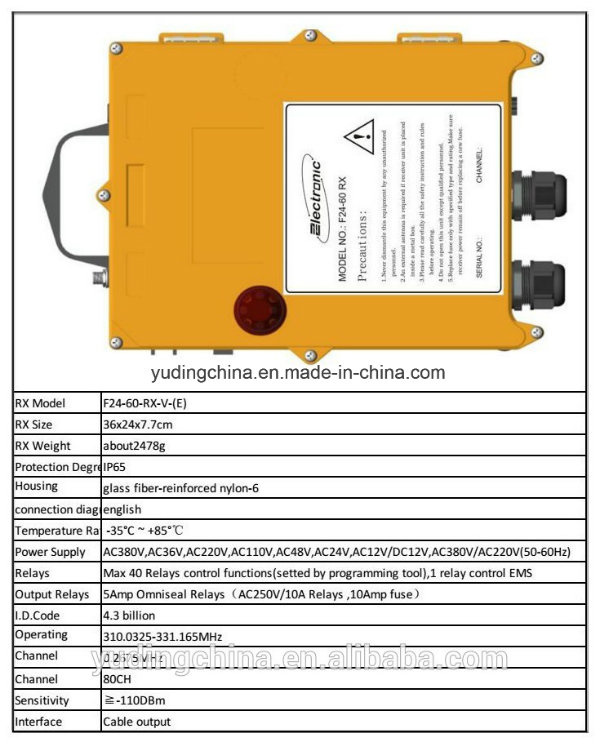

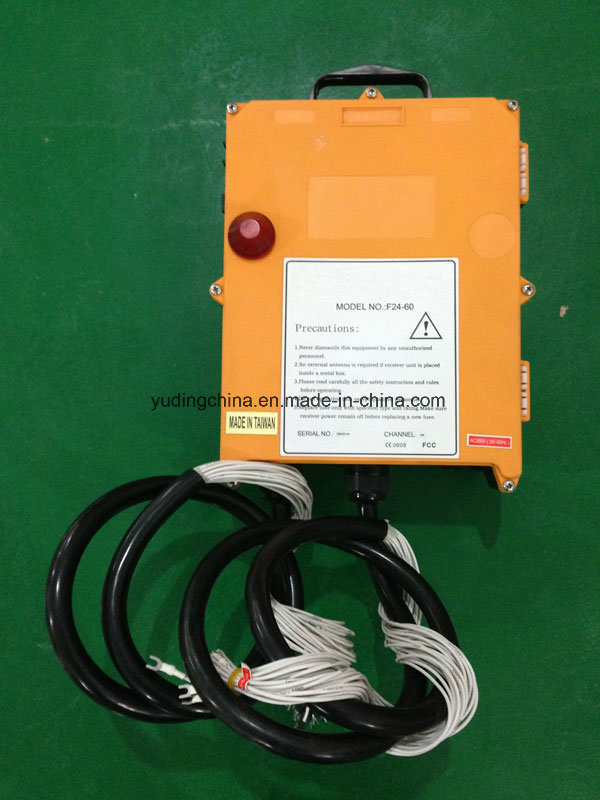

Specification of receiver:
Feature:
Durable nylon-fiber housing for extra shock resistance..
• Fully programmable relay configuration with maximum 16
relays output per command.
• Operating range up to 100 meters
• Pre-wiring standard cable making installation quick and easy.
• Economic efficiency, ease of operation.
• 3 stages LED battery power indicator.
• Feature acceleration delay time control (smooth moving for
multiple speeds cranes)
Safety features:
4.3 billion unique ID code
Hamming code
enhanced watch-dog circuit
Standard configuration:One transmitter ;
One receiver;
One 1m cable connect with receiver
Operation and Maintenance manual
F24-60 packing & shipping:
1 set per carton, carton size: 55X31X27cm
1-7 working days after receiving your payment.
FAQ:
Question 1: How to place order?
Question 2: How to pay money?
A: T/T or Western Union are both ok
Question 3: What's the delivery time?
A: For sample, most specification in stock can be sent to you within 1 day,
2-7 working days for customized product or bulk order.
More question, pls contact lily
Question 4: How did you sent me?
A: Usaully by Express, such as DHL,FEDEX,TNT,UPS,etc
or acccording to your requirement.
Question 5: Is there any warranty?
A: Of course, for product, all of our product have 1 year warrant, also, technology support forever.
Question 6: Can i buy the controller parts?
A: Of course, any controller parts, pls contact lily, she will quote to you, such as fuse, dust bag, crystal, copier, etc.Our Service:♦ Your inquiry will be replied within 24hours
♦ If any problem during installation or operation,please contact us directly,we will provide our professional instruction.
♦ OEM and sample orders acceptable, provide customized products for our customers.
♦ One year warranty.
More information and your special requirment, please email lily: lily @yuding-china.com or add lily's whatsapp: +86-15136229290, all of your question will be reply within 12 hours.
