| Prod Model: |
DC200-12 |
| Color: |
Deep Grey |
| Battery Type: |
AGM Battery |
| Cycles: |
Deep Cycle |
| Application: |
Golf/Nev/Utility Vehicles |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Power |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

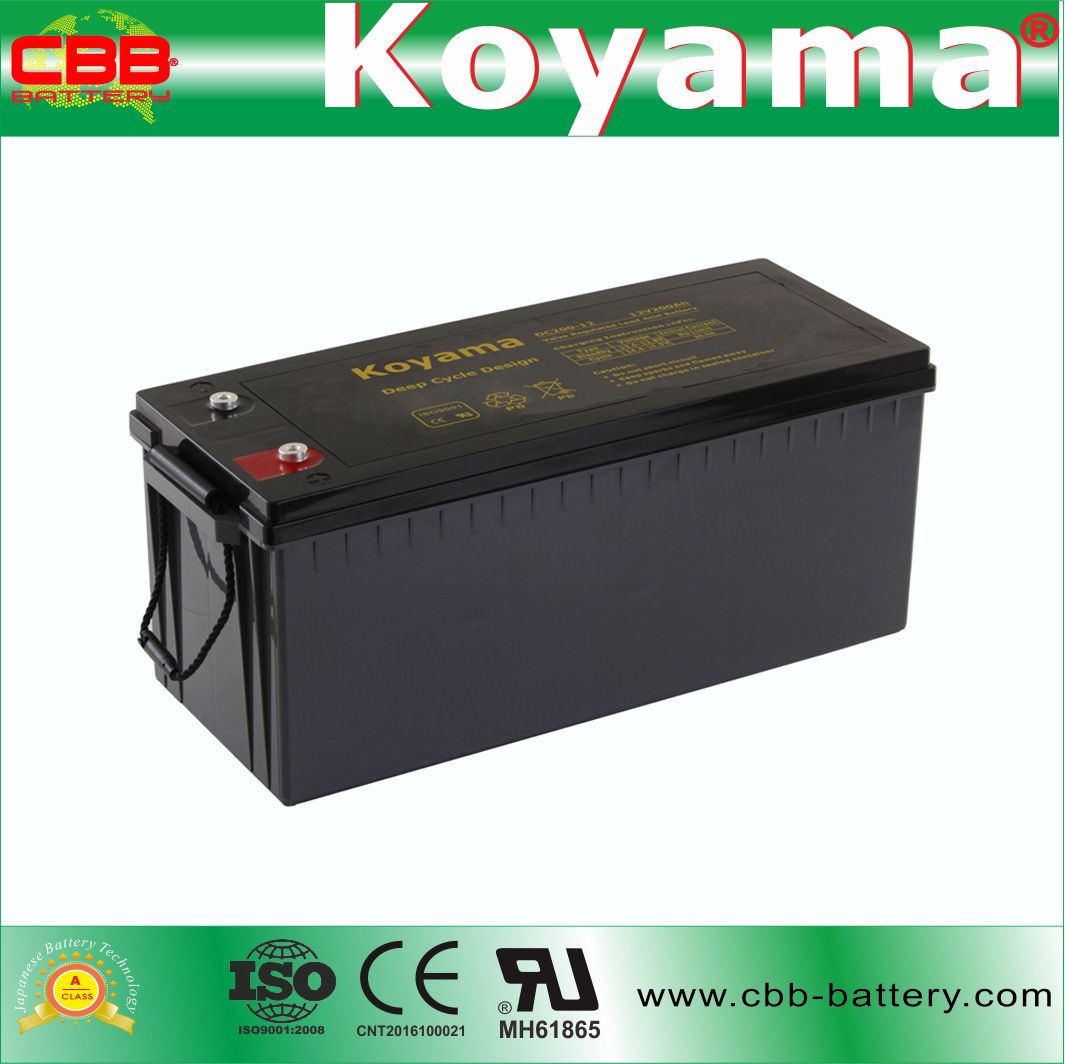

Solar Power Deep Cycle Battery
Deep Cycle AGM Battery
Motive power battery
Electric Vehicle battery
NPC Series AGM Batteries for Deep Cycle Services
Description
Deep-cycle batteries typically feature thick plates with a high-density active material. The thick battery Plates allow for reserve energy to be stored deep within the battery plate and released during slow Discharge such as trolling or electronic instrument use. The high-density active material remains Within the batteries 'plate/grid structure longer, resisting the normal degradation found in cycling Conditions. They are typically used where the battery is discharged to great extent and then Recharged.
Deep Cycle refers to applications that typically discharge 60 to 70% or more of the battery Capacity. An automotive battery is an SLI battery (Starting, Lighting & ignition. )Its plates are designed To deliver maximum power for a short duration.
Starting an engine typically discharges an SLI battery 3% or less. When an SLI battery is used In a deepcycle application or in a vehicle with heavy accessory loads, the battery life will be Shortened proportionally to how deeply and frequently it is discharged.
The Roppon Deep Cycle battery uses a different chemistry for the plates 'active paste material, and A slightly stronger acid. This chemistry allows for a much longer life in deep cycle applications with Only a slight reduction in maximum power output.
Features
-Superior Deep Cycle Design
-High Power Density
-Thick Plates and High-density Active Material
- Excellent energy storage capacity combined with high reliability
-Designed in accordance with IEC 60254-1
-700 Cycles at 75%DOD, 1600 Cycels at 30% DOD,
Applications:
-Golf/NEV/Utility Vehicles
-Aerial Work Platforms/Access
-Floor Machine
-Material Handing
Certificates: ISO9001 ISO14001 CE UL
Specification
Model No.: DC200-12
Nominal Voltage: 12V
Nominal capacity: 200Ah
Dimension: L532*W206*H216*TH222
Weight: 58.5Kgs
Terminal: Threaded Post
| DC Series-AGM Batteries for Deep Cycle Services | | |
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg |
| mm | mm | mm | mm |
| DC200-6 | 6 | 200 | 306 | 168 | 220 | 222 | 30.5 | T5 |
| DC210-6 | 6 | 210 | 260 | 180 | 247 | 249 | 30 | T5 |
| DC220-6 | 6 | 220 | 306 | 168 | 220 | 222 | 32.0 | T5 |
| DC225-6 | 6 | 225 | 243 | 187 | 275 | 275 | 31.5 | T5 |
| DC310-6 | 6 | 310 | 295 | 178 | 354 | 360 | 46.0 | T5/T6 |
| DC330-6 | 6 | 310 | 295 | 178 | 354 | 360 | 46.6 | T5/T6 |
| DC380-6 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 | T5/T6 |
| DC420-6 | 6 | 420 | 295 | 178 | 404 | 410 | 57 | T5/T6 |
| DC200-8 | 8 | 200 | 260 | 182 | 295 | 301 | 39.5 | T5 |
| DC14-12 | 12 | 14 | 152 | 99 | 96 | 102 | 4.1 | F1/F2 |
| DC20-12 | 12 | 20 | 181 | 77 | 167 | 167 | 6.1 | T1/L1 |
| DC24-12 | 12 | 24 | 166 | 175 | 126 | 126 | 8.5 | T1 |
| DC26-12 | 12 | 26 | 165 | 126 | 174 | 174 | 9.0 | T2 |
| DC35-12 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 | T3 |
| DC40-12 | 12 | 40 | 198 | 166 | 174 | 174 | 14.5 | T3 |
| DC55-12 | 12 | 55 | 229 | 138 | 208 | 212 | 16.8 | T3 |
| DC70-12 | 12 | 70 | 350 | 167 | 178 | 178 | 23.5 | T3 |
| DC75-12 | 12 | 75 | 260 | 169 | 211 | 215 | 25 | T3 |
| DC85-12 | 12 | 85 | 260 | 169 | 211 | 215 | 26.1 | T3 |
| DC90-12 | 12 | 90 | 307 | 169 | 211 | 216 | 28.5 | T3 |
| DC100-12 | 12 | 100 | 307 | 169 | 211 | 216 | 30.5 | T3 |
| DC110-12 | 12 | 110 | 331 | 174 | 214 | 220 | 33.5 | T4 |
| DC120-12 | 12 | 120 | 407 | 173 | 210 | 233 | 39.5 | T5 |
| DC135-12 | 12 | 135 | 341 | 173 | 283 | 289 | 41.5 | T5 |
| DC150-12 | 12 | 150 | 484 | 171 | 241 | 241 | 46.0 | T4 |
| DC180-12 | 12 | 180 | 532 | 206 | 216 | 222 | 56 | T4 |
| DC200-12 | 12 | 200 | 532 | 206 | 216 | 222 | 58.8 | T4 |
| DC210-12 | 12 | 210 | 522 | 240 | 219 | 225 | 66 | T5 |
| DC240-12 | 12 | 240 | 520 | 269 | 203 | 209 | 71.0 | T5 |
| DC260-12 | 12 | 260 | 520 | 268 | 220 | 226 | 77 | T5 |
