| Prod Model: |
DC75-12 |
| Color: |
Deep Grey |
| Battery Type: |
AGM Battery |
| Battery: |
Lead Acid Battery |
| Cycles: |
Deep Cycle |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Power |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

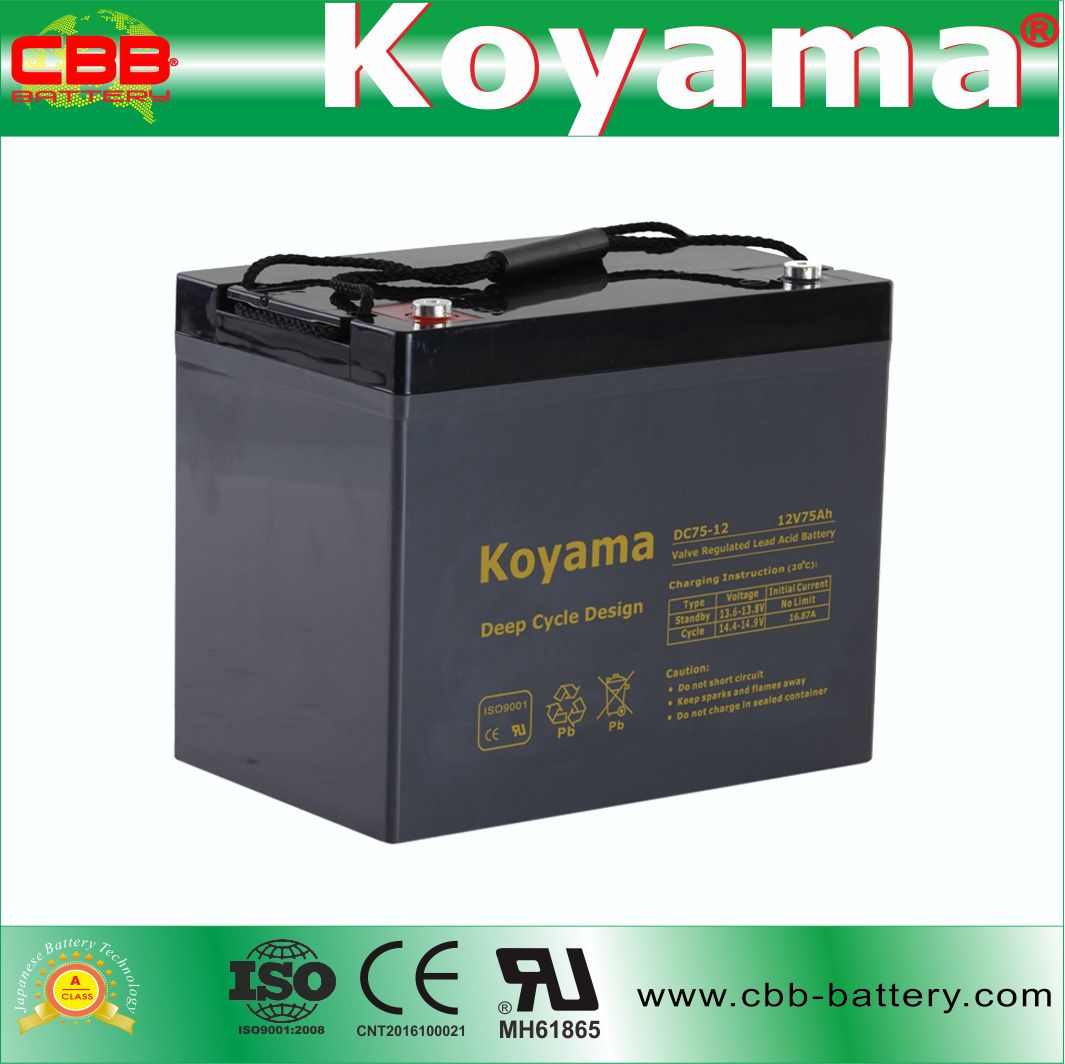

Recreation equipment deep cycle batteries
Deep-cycle batteries typically feature thick plates with a high-density active material. The thick battery
Plates allow for reserve energy to be stored deep within the battery plate and released during slow
Discharge such as trolling or electronic instrument use. The high-density active material remains
Within the batteries 'plate/grid structure longer, resisting the normal degradation found in cycling
Conditions. They are typically used where the battery is discharged to great extent and then
Recharged.
Deep Cycle refers to applications that typically discharge 60 to 70% or more of the battery
Capacity. An automotive battery is an SLI battery (Starting, Lighting & ignition. )Its plates are designed
To deliver maximum power for a short duration.
Starting an engine typically discharges an SLI battery 3% or less. When an SLI battery is used
In a deep cycle application or in a vehicle with heavy accessory loads, the battery life will be
Shortened proportionally to how deeply and frequently it is discharged.
The Deep Cycle battery uses a different chemistry for the plates 'active paste material, and
A slightly stronger acid. This chemistry allows for a much longer life in deep cycle applications with
Only a slight reduction in maximum power output.
Features
-Superior Deep Cycle Design
-High Power Density
-Thick Plates and High-density Active Material
- Excellent energy storage capacity combined with high reliability
-Designed in accordance with IEC 60254-1
-700 Cycles at 75%DOD
Applications:
-Golf/NEV/Utility Vehicles
-Aerial Work Platforms/Access
-Floor Machine
-Material Handing
-Marine/Recreational Vehicle
-Transportation
-Renewable Energy
Certificates: ISO9001 ISO14001 CE UL
Specification
Model No.: DC75-12
Nominal Voltage: 12V
Nominal capacity: 75Ah
Dimension: L260*W169*H211*TH215
Weight: 25kgs
Terminal: Threaded Post
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg | pound |
| mm | inch | mm | inch | mm | inch | mm | inch |
| NPC200-6 | 6 | 200 | 306 | 12.05 | 168 | 6.61 | 220 | 8.66 | 222 | 8.74 | 30.5 | 67.10 | T5 |
| NPC210-6 | 6 | 210 | 260 | 10.24 | 180 | 7.09 | 247 | 9.72 | 249 | 9.80 | 30 | 66.00 | T5 |
| NPC220-6 | 6 | 220 | 306 | 12.05 | 168 | 6.61 | 220 | 8.66 | 222 | 8.74 | 32.0 | 70.40 | T5 |
| NPC225-6 | 6 | 225 | 243 | 9.57 | 187 | 7.36 | 275 | 10.83 | 275 | 10.83 | 31.5 | 69.30 | T5 |
| NPC310-6 | 6 | 310 | 295 | 11.61 | 178 | 7.01 | 354 | 13.94 | 360 | 14.17 | 46.0 | 101.20 | T5 |
| NPC380-6 | 6 | 380 | 295 | 11.61 | 178 | 7.01 | 404 | 15.91 | 410 | 16.14 | 55.3 | 121.66 | T5 |
| NPC200-8 | 8 | 200 | 260 | 10.24 | 182 | 7.17 | 295 | 11.61 | 301 | 11.85 | 40.5 | 89.10 | T5 |
| NPC14-12 | 12 | 14 | 152 | 5.98 | 99 | 3.90 | 96 | 3.78 | 102 | 4.02 | 4.1 | 9.02 | F1/F2 |
| NPC20-12 | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 6.1 | 13.42 | T1 |
| NPC24-12 | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 126 | 4.96 | 126 | 4.96 | 8.5 | 18.70 | T3 |
| NPC26-12 | 12 | 26 | 165 | 6.50 | 126 | 4.96 | 174 | 6.85 | 174 | 6.85 | 9.0 | 19.80 | T2 |
| NPC35-12 | 12 | 35 | 196 | 7.72 | 130 | 5.12 | 155 | 6.10 | 167 | 6.57 | 10.5 | 23.10 | T3 |
| NPC40-12 | 12 | 40 | 198 | 7.80 | 166 | 6.54 | 174 | 6.85 | 174 | 6.85 | 14.5 | 31.90 | T3 |
| NPC55-12 | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 212 | 8.35 | 17.8 | 39.16 | T3 |
| NPC70-12 | 12 | 70 | 350 | 13.78 | 167 | 6.57 | 178 | 7.01 | 178 | 7.01 | 23.5 | 51.70 | T3 |
| NPC75-12 | 12 | 75 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | 25 | 55.00 | T3 |
| NPC85-12 | 12 | 85 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | 26.0 | 57.20 | T3 |
| NPC90-12 | 12 | 90 | 307 | 12.09 | 169 | 6.65 | 211 | 8.31 | 216 | 8.50 | 28.5 | 62.70 | T3 |
| NPC100-12 | 12 | 100 | 307 | 12.09 | 169 | 6.65 | 211 | 8.31 | 216 | 8.50 | 30.0 | 66.00 | T3 |
| NPC110-12 | 12 | 110 | 331 | 13.03 | 174 | 6.85 | 214 | 8.43 | 220 | 8.66 | 33.5 | 73.70 | T4 |
| NPC120-12 | 12 | 120 | 407 | 16.02 | 173 | 6.81 | 210 | 8.27 | 233 | 9.17 | 39.5 | 86.90 | T5 |
| NPC135-12 | 12 | 135 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 289 | 11.38 | 42.5 | 93.50 | T5 |
| NPC150-12 | 12 | 150 | 484 | 19.06 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | 46.5 | 102.30 | T4 |
| NPC180-12 | 12 | 180 | 532 | 20.94 | 206 | 8.11 | 216 | 8.50 | 222 | 8.74 | 56 | 123.20 | T4 |
| NPC200-12 | 12 | 200 | 532 | 20.94 | 206 | 8.11 | 216 | 8.50 | 222 | 8.74 | 58.5 | 128.70 | T4 |
| NPC210-12 | 12 | 210 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 225 | 8.86 | 66 | 145.20 | T5 |
| NPC240-12 | 12 | 240 | 520 | 20.47 | 269 | 10.59 | 203 | 7.99 | 209 | 8.23 | 71.0 | 156.20 | T5 |
| NPC260-12 | 12 | 260 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 226 | 8.90 | 77 | 169.40 | T5 |
