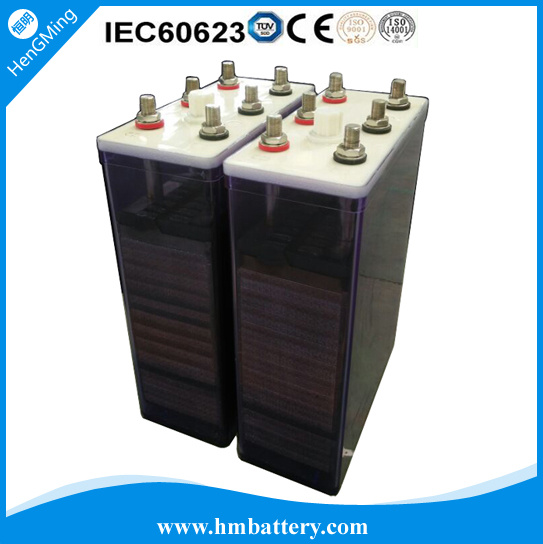

Deep Cycle 1.2V Nickel-Iron Battery 1200ah 48V Storage Battery System

Prod Model:	TN1200
Certificate:	IEC60623/ISO9001/ISO18001/14001
Type:	Iron-Nickel Batteries
Nominal Voltage:	1.2V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Usage:	Solar Power

Product Description

1. Product description
Type: Ni-Fe storage battery 1.2V 1200Ah
Dimension: 395*185*560mm
Weight: 62Kg
Brand: Hengming
Application:UPS, solar power
2.Type list

Pocket Plate Nickel-IRON Alkaline Batteries
Type	Nominal Voltage (V)	Nominal Capacity (Ah)	Dimension(mm)			Thread of Pole	Weight (filled) (Kg)	Electrolyte (L)	Material of Container
			L	W	H
TN  10	1.2	10	85	39	156	M8	0.8	0.3	ABS / PP
TN 20	1.2	20	82			M10	1.3	0.3	ABS / PP
TN 30	1.2	30	135	54	265	M10	2.2	0.6	ABS / PP
TN 40	1.2	40	135	54	265	M10	2.5	0.6	ABS / PP
TN 50	1.2	50	138	61	266	M10	3.2	0.7	ABS
TN 60	1.2	60	143	76	275	M10	4.1	1.1	ABS
TN 70	1.2	70	139	79	295	M10	4.5	1.1	ABS
TN 80	1.2	80	139	79	295	M10	4.7	1.1	ABS
TN 90	1.2	90	139	79	362	M10	6	1.4	ABS / PP
TN 100	1.2	100	139	79	362	M10	6	1.4	ABS / PP
TN 150	1.2	150	165	105	345	M20×1.5	9.3	2	ABS / PP
TN 200	1.2	200	167	162	345	M20×1.5	14	3.3	ABS / PP
TN 250	1.2	250	167	162	345	M20×1.5	14	3.4	ABS / PP
TN  300	1.2	300	282	170	348	M20×1.5	22.5	5	ABS
TN  400	1.2	400	282	170	348	M20×1.5	25	5.4	ABS
TN  500	1.2	500	285	172	490	M20×1.5	34	7.8	ABS
TN 600	1.2	600	285	172	490	M20×1.5	35	7.5	ABS
TN 700	1.2	700	285	172	490	M20×1.5	40	8.4	ABS
TN 800	1.2	800	395	185	560	M20×1.5	58	15.5	ABS
TN 1000	1.2	1000	395	185	560	M20×1.5	60	14	ABS
TN 1200	1.2	1200	395	185	560	M20×1.5	62	11.3	ABS

3.Advantages of Hengming Battery
1. Environmentally-friendly battery production
2. Temperature is kept below 35 ºC and good maintenance, cycle life of up to 3000-4000 times.
3. float charging life is more than 15 years.
4. low Self-discharging
5. Convenient for installation and low maintenance
6. PP/ABS container
7. OEM service available
8. widely used as DC back-up power supply for railway, rolling stocks, mine tractors, petrochemical, oil and gas, electricity industries, photovoltaic and other renewable power applications.

4.Company Information
Henan Hengming Fengyun Power Souce Co.,Ltd is professional ni-cd railway storage batteries manufacturer in China and have been in this line for 30 years.
our products have been exported to more than 20 countries, which performance is better and widely used for DC power, back-up power of railway, railway signaling, UPS, boat, Solar home application, boat, engine starting, etc
Hengming have attained the certificates of ISO9001 & ISO14001, and our products are accredited with TUV / CE/ IEC.

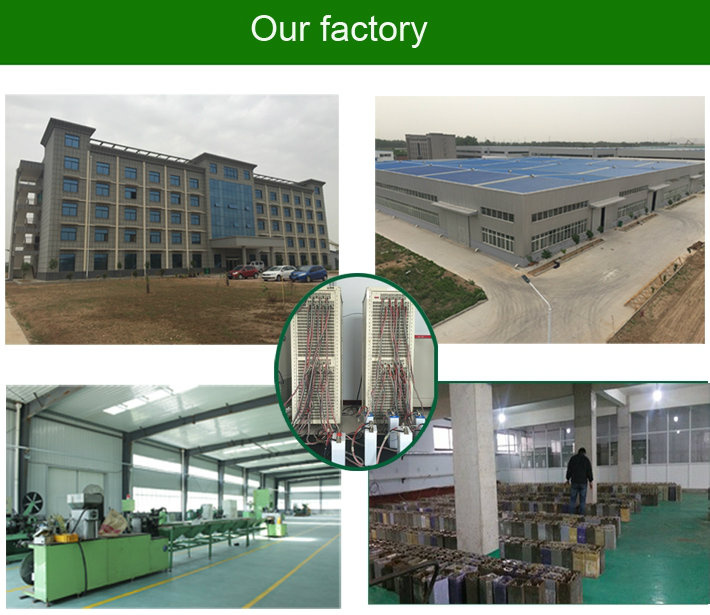

We built a new factory to expand our business.
Welcome to visit our new factory.


5. Packing and Shipping
The battery will be packed by polywood case. Electrolyte powder or wet electrolyte will be sent with accessories.

6. Certification
