| Prod Model: |
CS12-200 |
| Voltage: |
12V Solar Battery |
| Capacity: |
200ah Lead Acid Battery |
| Size: |
L*W*H*Th=522*240*218*242mm |
| Weight: |
56kg Sealed Lead Acid Battery |
| Warranty: |
3 Years Deep Cycle Battery |
| Expected Cycle Time: |
10-12 Years Solar Battery |
| Delivery Time: |
7 Days Storage Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global, Rechargeable Battery |
| Terminal Type: |
T11 Lead Acid Battery |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

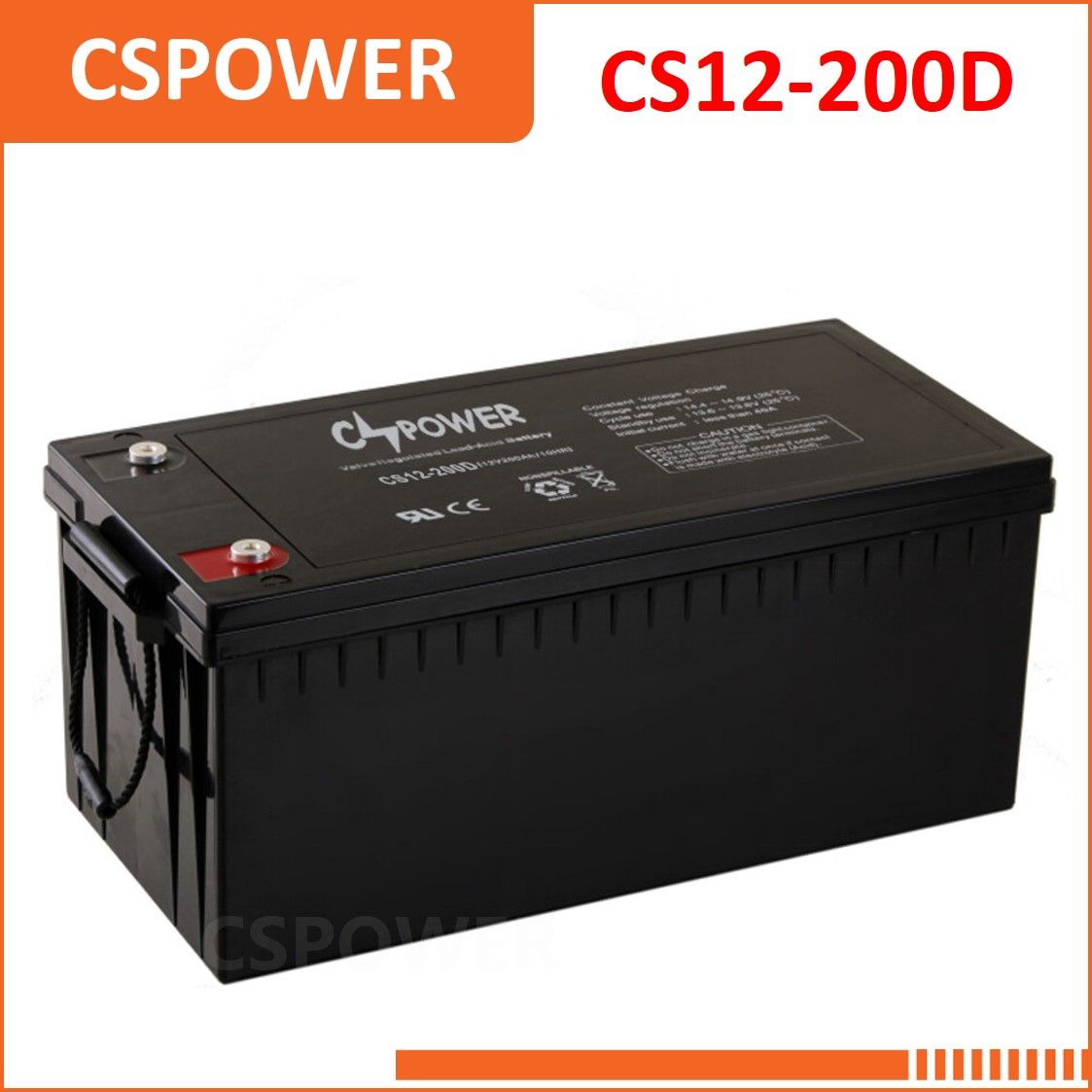

Deep Cycle 12V 200ah Solar Storage Power Battery Solar Battery
12V Deep Cycle Solar Battery Lead Acid Battery with long life 12V100Ah 150Ah 200Ah 250Ah 300Ah
1. Rechargeable Battery deep cycle battery
2. Sealed free maintenance
3. solar Lead Acid battery
4. OEM/ODM free charge
5. Warranty 3years free replacement
CSPOWER Battery Tech Co.,Ltd manufacturer 2V/6V/12V solar battery, UPS Battery, Solar GEL battery, AGM sealed free maintenance lead acid battery, Solar deep cycle battery upto 2V3500Ah, 6V420Ah, 12V300Ah, total over 400models, mainly used for solar power, wind power, ups system, inverter system, telecom, golf cart, electric vehicles and so on.
Sealed lead acid battery
Super quality and best prices
10-15 days delivery time
CE, IEC, ISO900l approved
Features:
1) Maintenance-Free Operation
2) Good Discharging Ability
3) Long Service Life
4) Low Self Discharge
5) Environmental & Non-polluting
6) Safe & Reliable
. Certificates: ISO9001&14001, CE, UL
. Standard: JIS, DIN, IEC & BS6290-4
. Data sheet: Available
. OEM: Accepted
Advanced Features
1. Environmentally friendly
2. Completely Maintenance-Free
3. Non-Spillable construction design.
4. Wide Operating Temperature Range(-20° C~+60° C)
5. Longer Life(20years designed life)
6. Explosion Proof
7. Valve Regulated & High Discharge Rate Capability
8. Low Self Discharge
9. Independent of Position
10. Ease of Shipment
11. No need of balanced charge or boost
12. No Memory
Applicition
1, Solar & Wind power systems
2, Fire & security systems
3, Uninterruptible power supplies
4, Golf cart, Electric vehicle
5, Electric powered bicycle and wheelchairs
6, Marine equipment
7, Communication equipment
8, Power tools
9, Telecommunication systems
Notice
- Matrix series batteries have acid in the case and are fully charged before leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye contact is made with electrolyte, seek medical advice immediately.
- Do not use a new battery with an old one.
- Do not use the battery in sealed container.
- Each battery should have detailed record including the ex-factory date, installing date and using record.
- Check the connection of wire in a fixed interval (once a year). If there is any looseness should tighten the wire.
- Wipe the surface of the battery with soft cloth in a fixed interval (once three months) and always keep the battery clean.
- Avoid using any kind of organic solvents for cleaning the surface of the battery.
Why choose us:
1. Door to door service.
2. Low cost raw material with high quality. We have own plates factory, can manufacture plates by ourselves.
3. Independent designer with more than 10 years design experience.
4. Chief engineers with more than 20years experience in battery field.
5. Product with the international market step.
6. We focus on quality, never use faulse gel and recycle lead.
7. All production lines in our factory are automatic and imported from Germany.
8. Our products are exported to Middle East, Europe, France, Canada, Japan, Korea and else.
9. We would like stand with you in same line to open market with long term business.
Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.

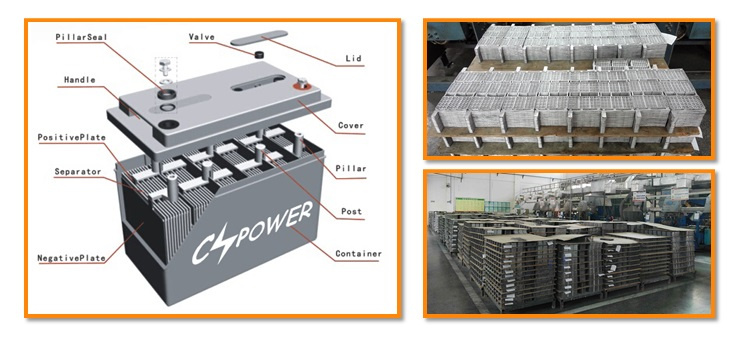

OUR BATTERY MATERIAL ADVANTAGES:
1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof.
2) 99.99% pure new lead NEVER use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
7) Vent Valve: Allows the release of the excess gas automatically for safety.
8) Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life.
About CSPOWER:
Our office is in Shenzhen, factories located in Dongguan and Shaoguan China.
We have obtained CE, ISO, IEC certificates and SGS test report for battery.
CSPOWER Battery Tech Co.,Ltd supply our customers reliable products with high quality and competitive price, since we have our own Lead mine & smelter factory & plate factory & SLA battery assembling factory, the purity quotient of our lead is99.998%.
Welcome to contact us for the battery details.
Contact CSPOWER Details:
Web: www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
www.cspowerinverter.com
http://cspower.en.made-in-china.com/
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25ºC | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS12-5D | 12 | 5 | 1.70 | 3.74 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-7D | 12 | 7 | 2.10 | 4.62 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.2D | 12 | 7.2 | 2.20 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.5D | 12 | 7.5 | 2.30 | 5.06 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-8D | 12 | 8 | 2.35 | 5.17 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-9D | 12 | 9 | 2.50 | 5.50 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-10D | 12 | 10 | 3.10 | 6.82 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-10D | 12 | 10 | 2.95 | 6.49 | 151 | 5.94 | 65 | 2.56 | 111 | 4.37 | 116 | 4.57 | T2 |
| CS12-12D | 12 | 12 | 3.35 | 7.37 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-14D | 12 | 14 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-15D | 12 | 15 | 4.80 | 10.56 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-17D | 12 | 17 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-18D | 12 | 18 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.50 | 12.10 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-24D | 12 | 24 | 7.60 | 16.72 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-24D | 12 | 24 | 7.80 | 17.16 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T32 |
| CS12-26D | 12 | 26 | 8.10 | 17.82 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 8.60 | 18.92 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 9.00 | 19.80 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T4 |
| CS12-33D | 12 | 33 | 10.00 | 22.00 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.20 | 22.44 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-38D | 12 | 38 | 12.20 | 26.84 | 197 | 7.76 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-40D | 12 | 40 | 13.0 | 28.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 13.50 | 29.70 | 197 | 7.76 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | T12 |
| CS12-50D | 12 | 50 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 224 | 8.82 | T12 |
| CS12-55D | 12 | 55 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 229 | 9.02 | T9/T16 |
| CS12-60D | 12 | 60 | 19.40 | 42.68 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T7 |
| CS12-65D | 12 | 65 | 20.50 | 45.10 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 22.00 | 48.40 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-80D | 12 | 80 | 23.40 | 51.48 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 22.50 | 49.50 | 350 | 13.78 | 169 | 6.65 | 179 | 7.05 | 179 | 7.05 | T14 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 307 | 12.09 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T8 |
| CS12-100D | 12 | 100 | 29.80 | 65.56 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-110D | 12 | 110 | 31.10 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-120D | 12 | 120 | 36.50 | 80.30 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-150D | 12 | 150 | 42.50 | 93.50 | 484 | 19.06 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-160D | 12 | 160 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T18 |
| CS12-165D | 12 | 165 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T11 |
| CS12-180D | 12 | 180 | 56.50 | 124.30 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-200D | 12 | 200 | 60.00 | 132.00 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64.00 | 140.80 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69.50 | 152.90 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T9 |
| CS12-250P | 12 | 250 | 68.00 | 149.60 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-300D | 12 | 300 | 73.00 | 160.60 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
FAQ:
Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipment.
Q2. How's the delivery time?
A. usually it will take about 3-5 days for sample and 10-15 days for bulk production
Q3. Would you accept to use our logo?
A. We would provide free OEM order depends on your quantity.
Q4. We want to know month capacity.
A. It depends on different model. Total capacity is upto 100000 pieces per month.
Q5. Where is your market?
A. Our products are popular all over the world as their cost-effictive perfermance.
We hope you can join us and make mutual benefit from our long-term and co-win cooperation.
Soalr Battery
Deep Cycle Battery
Storage Battery
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

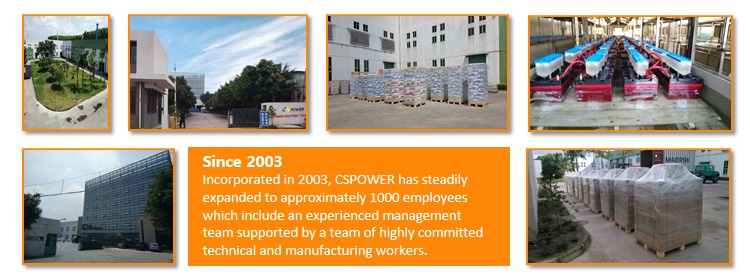

Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
