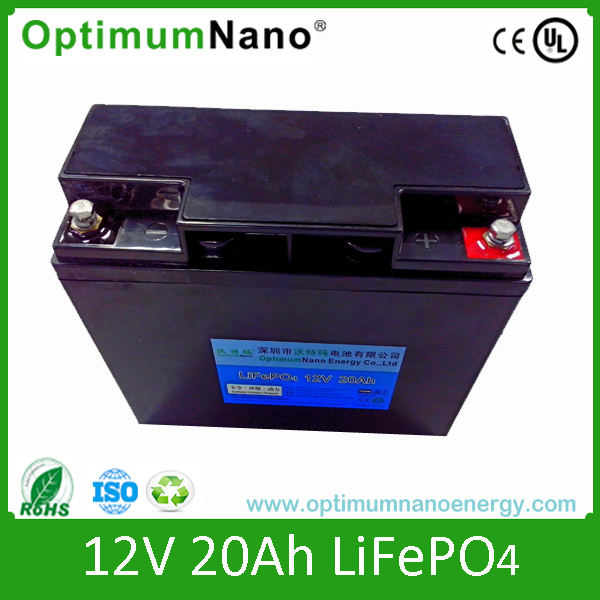

Deep Cycle 12V 20ah Lithium Battery for UPS Backup Supply
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
OPT-12020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Component: |
Lithoum Iron Phosphate |
| Standard Capacity: |
20ah |
| Rated Voltage: |
12.8V |
| Max. Charge Voltage: |
14.6V |
| Cut-off Voltage: |
10V |
| With BMS Internal: |
Yes |
| Operate Temperature: |
-20 to 60 Centigrade |
| Battery Weight: |
About 1.3kg |
| Battery Dimension: |
About 135*85*85mm |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
UPS |
| Standard Voltage: |
12V |
| Size: |
Customized |
| Rated Capacity: |
20ah |
| Discharge Rate: |
Less Than 3%/Month |
| Electrolyte: |
Lithum Iron Phoshate |
Product Description
Deep Cycle 12V 20ah Lithium Battery for UPS Backup SupplySpecification
1)Rated voltage 12.8V
2)Rated capacity 20AH
3)Max charge voltage 14.6V
4)Cut off voltage 10V
5)Charge method CC&CV
6)Weight about 2.8kg
LiFePO4 battery advantages
Safety: The safest Li-ion battery so far, accredited with CE&UL.
Environment-friendly: Accredited with RoHS, without any hazardous and noxious substances.
Powerful: Albe to discharge with 20C and 65Cmax.
Long cycle life: Over 2000 cycles with capacity staying at 80% min.
No memory effect: Always ready for charge and use, with no need to charge after full dischange.
Wide temperature range: Avaliable for use when the temperature ranges from -20° C to 60° C
Optimum Battery:
Main Supplier of New Energy Automobiles Power Battery for The Universide Shenzhen 2011
The leading Supplier of Lithiuim Iron Phosphate Battery for New Energy Automobiles in China
Large-Scale Supply of LiFePO4 Battery for Electric Bicycles and Other Light Vehicles.
We can design different capacity and size batteries to meet your demand.
Certification:
Packing&shipping
It according to customer's need:
Packing:
Carton or wooden case
1. PVC film
2. Epoxy board+ PVC film
3. SLA case
4. Customized iron case or aluminum alloy case
Shipping: International express, by air ,by sea
Shipping to: Worldwide
Payments:T/T in advanced or Western union
MOQ:1 unit is ok for your first battery pack to be tested.Welcome you to visit and negotiate in our factory!
| NO. | Item | General Parameter | Remark |
| 1 | Model | IFR 32650 |
|
| 2 | Casing material for single cell | steel case for single cells |
|
| 3 | Standard capacity(0.2C5A) | 20Ah |
|
| 4 | Mininum Capacity(0.2C5A) | 19Ah | larger than 95% of capacity clients requested; |
| 5 | Rated voltage | 12.8V | Work voltage |
| 6 | Max.Charge voltage | 14.6V |
|
| 7 | Cut-off voltage | 10.0V |
|
| 8 | Standard charge and discharge current | 0.2C5A |
|
| 9 | charging Time | 5.0hours |
|
| 10 | Max discharge current | 5C5A |
|
| 11 | length | 135±5.0mm |
|
| 12 | width | 66±5.0mm |
|
| 13 | height | 160±5.0mm |
|
| 14 | Weight(Approx,including case) | About 2.8kg |
|
| 15 | Impedance(Max, at 1000Hz.) | ≤ 60mΩ |
|
| 16 | Charge method
(CC/CV) | Standard | CC | 0.2C | 15.2V cut off |
|
| CV | 15.2V | 0.05C cut off |
|
| Rapid | CC | 1C | 15.2V cut off |
|
| CV | 15.2V | 0.05C cut off |
|
| 17 | Operate temperature | Charge | 0~45ºC |
|
| discharge | -20~60ºC |
|
| storage | -20~45ºC |
|
Company Name: OptimumNano Energy Co., Ltd
Name of Exhibition: The China Sourcing Fair
Address: Hong Kong Asia Exhibition Hall
Booth No: At at 9B05
Dates: Oct 11-14, 2015(4 Days)
In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.
In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future
In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.
In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".
In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.
In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.
In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.
In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry
OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.
After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
