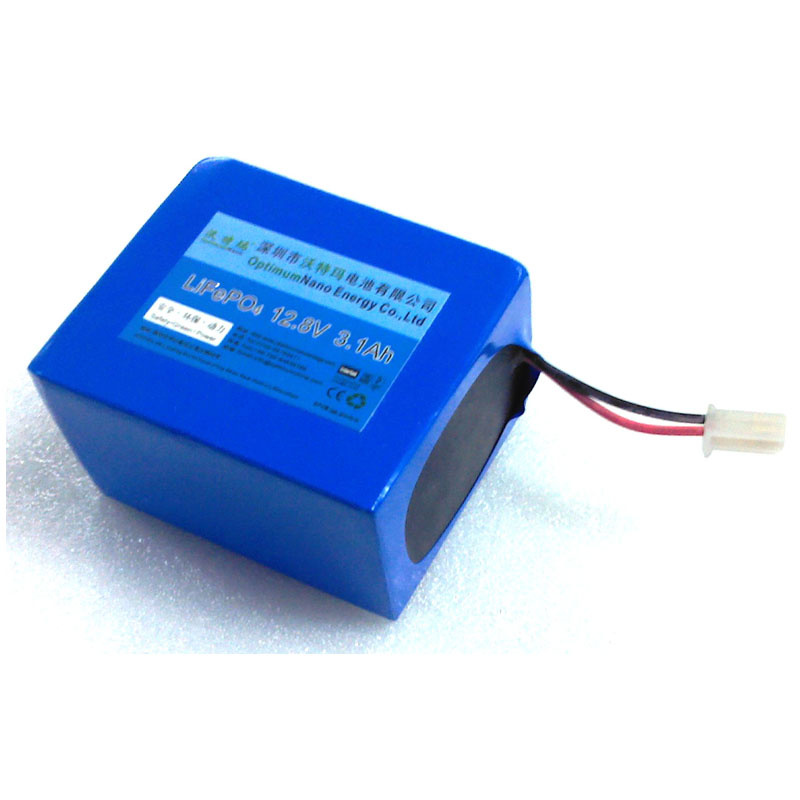

Deep Cycle 12V 3ah LiFePO4 Battery

Prod Model:	OPT-12003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	12V 3ah LED Battery
Rated Voltage:	12volt
Battery Size:	101*98*70mm or Customized
Battery Weight:	0.56kg
Application:	Lawn Light, UPS, LED Lighting
Life Cycle:	More Than 2000times
Self-Discharge Rate:	Less Than 3% Monthly
Capacity:	3ah
Type:	Lithium-Ion Batteries
Usage:	LED Battery
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Electrolyte:	LiFePO4

Product Description

Deep Cycle 12V 3Ah LiFePO4 Battery

No.	Item	General Parameters
1	Model	OPT-12-3
2	Standard capacity	3Ah
3	Rated voltage	12.8V
4	Max. Charge voltage	14.6V
5	Discharge Cut-off voltage	10V
6	Standard charge current	1A
7	Max Continuous discharge current	3A
8	Peak Instant Discharge Current	6A(5Seconds)
9	Dimension(Customized)	Customized
10	Total weight(Approx.)	About 0.5 Kg
11	Operate temperature	-20°C~60°C
12	Built-in Protection Circuit Module	YES
13	Cycle time	2000 times at 1C, 80% capacity remaining
14	Built-in PCM functions	Over charged protection
		Over discharged protection
		Short circuit protection

MOQ: 1pks is possible to be test at the first time.


--Feature

1. Safety: Passed abuse and safety test, no fire, no explosion with stable chemical structure,
2.Smaller space: 1/3 of the lead acid battery; 1/2 weight of lead acid battery,
3. Low self-discharge: Less than 3% per month,
4. Wide range temperature adaptability: LiFePO4 battery could work at -20º C~ 60º C,
5. Long life cycles: 1C mor than 2000 times, with long lifespan 5-10 years,
6. Low Maintenance Cost: Maintenance free,
7.Environment Friendly - Clean and Green energy poses no pollution on our environment,
8. Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE, IEC62133 etc...Product certificates.


--Application

1. Electric Propelling Applications
Engine Starting Battery
Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc; Intellectual Robots; Power tools: Electric drills, toys;

2. Energy Storage
Solar-Wind Power System; City Grid (On/Off); Community and Family

3. Back-up System and UPS
Telecom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment

4. Other Applications
Security and Electronics, Mobile POS, Mining Light / Torch / LED Light / Emergency Light


--Service by us

1.Give you the specific battery pack within 24hours according to your requirements
2.Professional:Professional technicians offer overall systematic service.
3. One-stop battery solution with battery cells, BMS, case and matching charger
4.Beyond customer demand: To think more for customer, do better for customer and make customer more satisfied.


--Why do you choose us?

? Quick response to clients' enquiries within 24hrs

? Tailor-made solution provided by our experienced team and professional engineers.

? More than 12 years experience in producing battery products for various application.

? Value quality and long-term cooperation to reach win-win relationship.
