Nanjing Greatsolar PV Technology Co., Ltd. >> Deep Cycle 150ah12V Gel Solar Battery Factory Direct

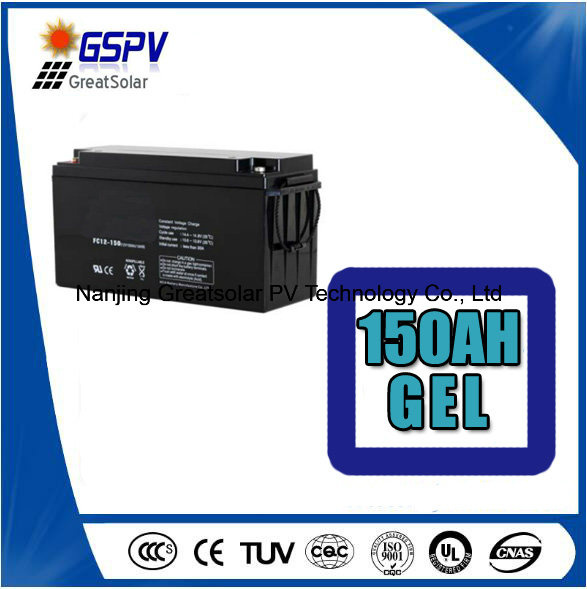

Deep Cycle 150ah12V Gel Solar Battery Factory Direct

Deep Cycle 150ah12V Gel Solar Battery Factory Direct
Price: US $ 125/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: GS12-150GEL
Color: Black or Gray
Type: Colloid
Usage: Boat
Nominal Voltage: 12V
Discharge Rate: Low Discharge Rate
Shape: Flat Battery
Rechargeable: Chargeable

Product Description

Detailed Characteristics
Nominal Voltage12V
Nominal Capacity (20 hours rate)150AH
Capacity10 hours rate (13.6A)     136H
5 hours rate (24A)120AH
1 hours rate (88.3A)88.3AH
Internal Resistance   Full Charged Battery 25ºC≤2.5mΩ
Capacity affected by
Temperature
(10 hours)


40ºC  (104°F)102%
25ºC  (77°F)100%
0ºC  (32°F)85%
-15ºC  (5°F)65%
Self-Discharge
25ºC(77°F)
Capacity


after 3 months storage90%
after 6 months storage80%
after 12 months storage62%
Charge(Constant Voltage)
25ºC(77°F)


Float

Initial Charging Current Less than 40A
Voltage 13.6-13.8V
Cycle

Initial Charging Current Less than 40A
Voltage 14.4-14.9V


Demensions and Packaging
  Battery Dimensions
Length                     484mm
Width                       171mm
Height                      241mm
Total Height            241mm

Box Dimensions
Length                      499mm
Width                       185mm
Height           299mm
Quantity Per Box1 PC per box
Net weight Per Cell43.0 kg±400g
Net weight Per Box43.0kg
Gross Weight44.0kg





Located in Nanjing City, Jiangsu Province, Nanjing GreatSolar PV Technology Co., Ltd(GSPV) is a professional and innovative company involved in R&D, manufacturing and popularization of Solar Panels and Solar Power System. It is near the speedway and 60km from Nanjing Lukou Airport, convenient transportation becomes one of its strong advantages.

GSPV was founded in the year of 2007 and specializes in manufacturing Solar Panel PV Modules, Solar Photovoltaic Power System, Solar Charge Controller, Solar Lights, Solar Inverter and LED lights. Solar Application Products Series are also to be promoted, such as Portable Solar lamp, Solar laptop bag Charger, Solar DC Water Pumping System, Solar Flashlight, Solar Resin lamp and so on.

As belong to the same originator, Nanjing Chuntai Control Equipment Co., Ltd is a manufacture for the Satellite ground controller series, Mechanical design of military products, it has the strong advantages on the hardware, software, the design of automatic control and precision machining.

GSPV carries out the principle of good faith, high efficiency, and hope to establish the long term cooperation with all of the worldwide friends.
