| Prod Model: |
Deep cycle AGM battery 12v180ah |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Deep Cycle AGM Battery 12V180ah |
| Size: |
532*206*216mm |
| Weight: |
53kg |
| Color: |
Black |
| Capacity: |
180ah |
| Warranty: |
3 Years |
| Delivery Time: |
10-15 Days |
| Certificate: |
CE, IEC, ISO |
| Brand: |
Cspower/OEM |
| Lifespan: |
10-12 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Wind and Solar System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Deep Cycle AGM Battery 12V180ah |
Product Description
Product Description

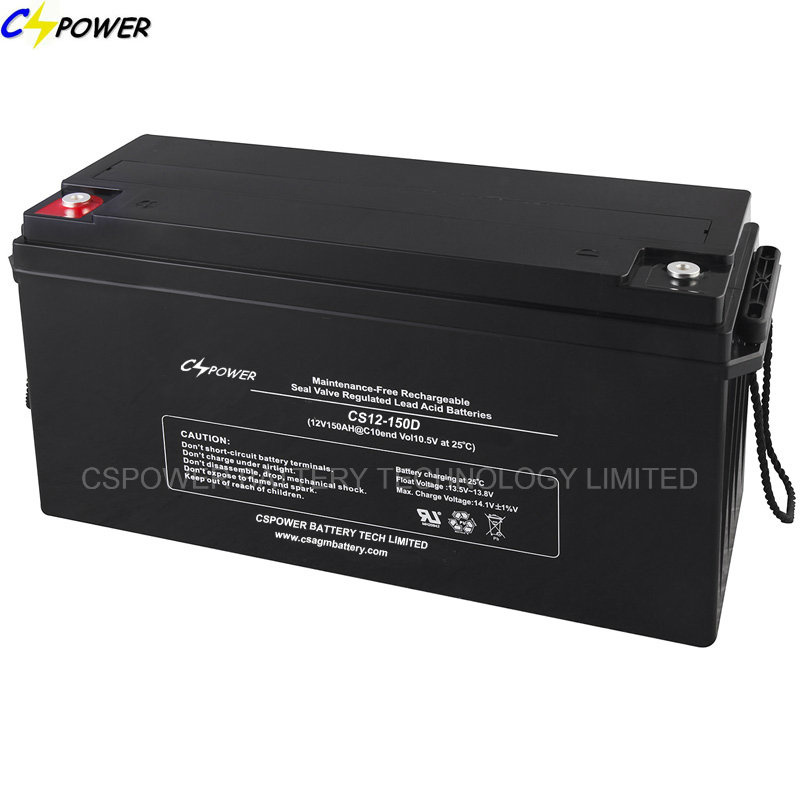

Deep Cycle AGM Battery for Solar off-Grid System 12V180ah for solar power
1. deep cycle agm battery 12V
2. 12V 180Ah,200Ah, 230Ah, 250Ah, 300Ah
3. Delivery time 7-10 days
4. Warranty: 3years free replacement
Storage Battery - Storage Deep Cycle VRLA AGM Battery 12V200Ah, 230Ah, 250Ah, 300Ah
Deep Cycle AGM Battery for Solar off-Grid System 12V180ah for solar power
Characters:
1: Deep Cycle Battery can be used both for Solar and Wind Power System
2: Battery Life time for 10-15 years
3: Warranty for 3 years
Deep Cycle AGM Battery for Solar off-Grid System 12V180ah for solar power Features:
1: Long service lifespan: 10 to 12 years design lifespan
2: Low self-discharge: Lower than 3% of rated capacity per month under normal operating temperature
3: ABS case (can be made with flame retardant V0)
4: No memory effect after repetitious usage or discharges
5: Maintenance-free operation
6: Sealed construction and leak proof
7: Safety valve regulated system and Non Spillable
8: Operating in any position
9: Deep discharge recovery
10: Wide operating temperature range -20degree to 60degree
Deep Cycle AGM Battery for Solar off-Grid System 12V180ah for solar power Applications:
1: Telephone switchboard, electric equipments, medical equipments, instruments, and meters
2: Computer, uninterrupted power source (UPS), Inverter
3: Power transmission and transformer station, switch control, and accident lighting
4: Fire fighting, safety device, and alarm monitoring
5: Aviation, spaceflight, and power storage
6: Automatic office system
7: Radio communication system
8: Emergency lighting and car/ship starting system
9: Portable electric appliances and mining system
10: Traffic and navigation signal lamp
11: Solar/Wind/Hybrid power systems
Terms Details:
Payment Terms: T/T
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen
Lead Time: 10-15 days
Product Certificate: CE, ISO, UL
Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS12-7D | 12 | 7 | 2.2 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-12D | 12 | 12 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-18D | 12 | 18 | 5.5 | 12.1 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.8 | 12.76 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-22D | 12 | 22 | 6.5 | 14.3 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3/T12 |
| CS12-24D | 12 | 24 | 8.1 | 17.82 | 166 | 6.54 | 126 | 4.96 | 174 | 6.5 | 181 | 7.13 | T32 |
| CS12-28D | 12 | 28 | 8.9 | 19.58 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-33D | 12 | 33 | 10.2 | 22.44 | 196 | 7.7 | 131 | 5.16 | 155 | 6.10 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.4 | 22.88 | 197 | 7.76 | 130 | 5.12 | 163 | 6.42 | 180 | 7.09 | T6/T16 |
| CS12-40D | 12 | 40 | 13.5 | 29.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 14.5 | 31.9 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T5 |
| CS12-55D | 12 | 55 | 16.2 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/16 |
| CS12-65D | 12 | 65 | 20.5 | 45.10 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 229 | 8.46 | T14 |
| CS12-90D | 12 | 90 | 27 | 59.40 | 307 | 12.1 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CS12-100D | 12 | 100 | 31.1 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-120D | 12 | 120 | 36.5 | 80.3 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-134D | 12 | 134 | 41 | 90.20 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 287 | 11.3 | T9/T20 |
| CS12-150D | 12 | 150 | 45 | 99.00 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-180D | 12 | 180 | 56.5 | 124.3 | 522 | 20.6 | 240 | 9.45 | 216 | 8.5 | 240 | 9.45 | T9 |
| CS12-200D | 12 | 200 | 60 | 132 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64 | 140.8 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69 | 151.8 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
| CS6-100D | 6 | 100 | 17 | 37.4 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.31 | T16 |
| CS6-105D | 6 | 105 | 18.5 | 40.70 | 280 | 11.02 | 128 | 5.03 | 203 | 7.99 | 203 | 7.99 | T16 |
| CS6-120D | 6 | 120 | 19 | 41.80 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.31 | T16 |
| CS6-150D | 6 | 150 | 27 | 59.40 | 260 | 10.2 | 180 | 7.09 | 247 | 9.22 | 252 | 9.92 | T16 |
| CS6-180D | 6 | 180 | 28 | 63.80 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.92 | T16 |
| CS6-200D | 6 | 200 | 29 | 61.60 | 306 | 12.04 | 169 | 6.63 | 223 | 8.77 | 228 | 8.97 | T16 |
| CS6-225D | 6 | 225 | 34.5 | 75.90 | 243 | 9.57 | 188 | 7.4 | 275 | 10.83 | 275 | 10.83 | T16 |
| CL2-300 | 2 | 300 | 18.8 | 41.4 | 171 | 6.7 | 151 | 5.9 | 330 | 13.0 | 366 | 14.4 | T20 |
| CL2-350 | 2 | 350 | 24.5 | 53.90 | 211 | 8.31 | 176 | 6.92 | 331 | 13 | 356 | 14 | T20 |
| CL2-400 | 2 | 400 | 26.7 | 58.7 | 210 | 8.27 | 176 | 6.93 | 329 | 13.0 | 366 | 14.4 | T20 |
| CL2-500 | 2 | 500 | 31 | 68.20 | 242 | 9.5 | 172 | 6.8 | 331 | 13.0 | 366 | 14.4 | T20 |
| CL2-600 | 2 | 600 | 38 | 83.80 | 301 | 11.9 | 175 | 6.89 | 331 | 13.0 | 366 | 14.4 | T20 |
| CL2-800 | 2 | 800 | 53 | 116.60 | 410 | 16.1 | 175 | 6.89 | 330 | 13.3 | 365 | 14.4 | T20 |
| CL2-1000 | 2 | 1000 | 63 | 138.60 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14.02 | T20 |
| CL2-1500 | 2 | 1500 | 101 | 223 | 401 | 15.8 | 351 | 13.8 | 342 | 13.5 | 369 | 14.5 | T20 |
| CL2-2000 | 2 | 2000 | 132 | 290. | 491 | 19.3 | 351 | 13.8 | 343 | 13.5 | 369 | 14.5 | T20 |
| CL2-3000 | 2 | 3000 | 195 | 430 | 710 | 28.0 | 352 | 13.9 | 342 | 13.5 | 369 | 14.5 | 20 |
