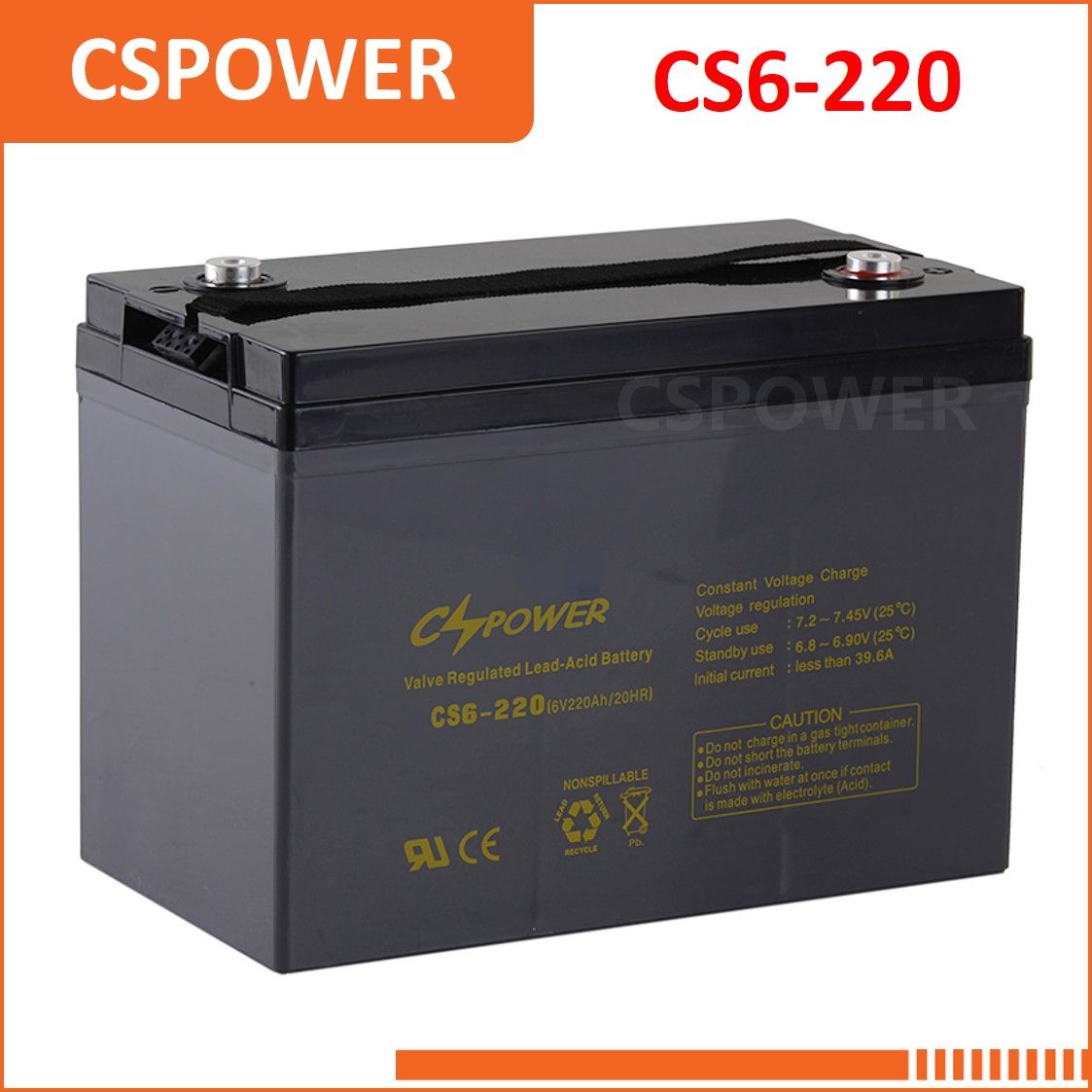

| Prod Model: |
CS6-220d |
| Size: |
322*178*226mm |
| Voltage: |
6V |
| Capacity: |
220ah |
| Weight: |
31.50kg |
| Warranty: |
3 Years |
| Expected Cycle Time: |
10-12years |
| Delivery Time: |
7 Days |
| Brand: |
Cspower/OEM |
| Terminal Type: |
T19 |
| Export Markets: |
Global |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
6V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
AGM |
Product Description
Deep Cycle AGM Battery VRLA 12V 220Ah UPS Battery Telecom Battery Characteristics:
VRLA valve regulated sealed free maintenance lead acid battery 6V up to 300Ah.
12V 220Ah Deep Cycle AGM Battery VRLA Battery Advanced Features:
1. Sealed and maintenance free operation
2. Non-Spillable construction design
3. Safety valve installation for explosion proof.
4. High quality and high reliability.
5. Exceptional deep discharge recovery performance.
6. Low self discharge characteristic.
7. Flexibility design for multiple install positions
8. The operating ambient temperature -40 to +65
9. Long life span 10-12years
10. Using oxygen recombination technology: Maintenance-free
11. Pb-Ca-Sn alloy for plate grids: Less gassing and less self-discharging
12. High quality AGM separator: Extend cycle life and prevents micro short circuit
13. ABS material: Increases the strength of battery container. (Flame-retardant ABS is optional)
14. High purity raw material: Ensures low self discharge rate
15. Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity
Deep Cycle AGM Battery VRLA 12V 220Ah for UPS and Telecom System Application:
~Engine starting, Communication equipment;
~Fire & security systems;
~Uninterruptible power supplies;
~Telecommunication systems;
~Electronic cash registers;
~Electronic test equipment;
~Processor based office machines;
~Control equipment; Electric powered bicycle and wheelchairs;
~Geophysical equipment; Marine equipment;
~Medical equipment; Portable cine & video lights;
~Solar powered systems; Television& video recorders;
~Vending machines; Alarm Systems, Computers;
~Power Tools; Emergency Lighting Systems;
~Toys; Geophysical Equipment; Vending Machines; Other standby or primary power supplies.
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 20hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS6-2.8D | 6 | 2.8 | 0.53 | 1.17 | 67 | 2.64 | 34 | 1.34 | 100 | 3.64 | 103 | 4.06 | T1 |
| CS6-1.3D | 6 | 1.3 | 0.30 | 0.66 | 98 | 3.86 | 25 | 0.98 | 52 | 2.05 | 56 | 2.20 | T0 |
| CS6-3.3D | 6 | 3.3 | 0.63 | 1.39 | 134 | 5.28 | 34 | 1.34 | 61 | 2.40 | 66 | 2.60 | T0 |
| CS6-3.5D | 6 | 3.5 | 0.66 | 1.45 | 70 | 2.76 | 48 | 1.89 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS6-4D | 6 | 4 | 0.69 | 1.52 | 70 | 2.76 | 48 | 1.89 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS6-4.2D | 6 | 4.2 | 0.71 | 1.56 | 70 | 2.76 | 48 | 1.89 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS6-4.5D | 6 | 4.5 | 0.78 | 1.72 | 70 | 2.76 | 48 | 1.89 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS6-5D | 6 | 5 | 0.85 | 1.87 | 70 | 2.76 | 48 | 1.89 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS6-6D | 6 | 6 | 1.00 | 2.20 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS6-7D | 6 | 7 | 1.10 | 2.42 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS6-8D | 6 | 8 | 1.28 | 2.82 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS6-10D | 6 | 10 | 1.65 | 3.63 | 151 | 5.94 | 50 | 1.97 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS6-100D | 6 | 100 | 15.30 | 33.66 | 195 | 7.68 | 170 | 6.69 | 207 | 8.15 | 210 | 8.27 | T16 |
| CS6-14D | 6 | 14 | 1.96 | 4.31 | 151 | 5.94 | 50 | 1.97 | 94 | 3.70 | 100 | 3.94 | T1/T2 |
| CS6-12D | 6 | 12 | 1.81 | 3.98 | 151 | 5.94 | 50 | 1.97 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS6-35D | 6 | 35 | 10.20 | 22.44 | 196 | 7.70 | 131 | 5.16 | 155 | 6.10 | 180 | 7.09 | T16 |
| CS6-160D | 6 | 160 | 25.00 | 55.00 | 307 | 12.09 | 170 | 6.69 | 220 | 866 | 225 | 8.86 | T19 |
| CS6-180D | 6 | 180 | 29.00 | 63.80 | 260 | 10.24 | 180 | 7.09 | 246 | 9.69 | 250 | 9.84 | T19 |
| CS6-200D | 6 | 200 | 30.50 | 67.10 | 322 | 12.68 | 178 | 7.01 | 227 | 8.94 | 230 | 9.06 | T10 |
| CS6-220D | 6 | 220 | 31.50 | 69.30 | 322 | 12.68 | 178 | 7.01 | 226 | 8.90 | 251 | 9.88 | T19 |
| CS6-225D | 6 | 225 | 31.50 | 69.30 | 322 | 12.68 | 178 | 7.01 | 226 | 8.90 | 251 | 9.88 | T9 |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

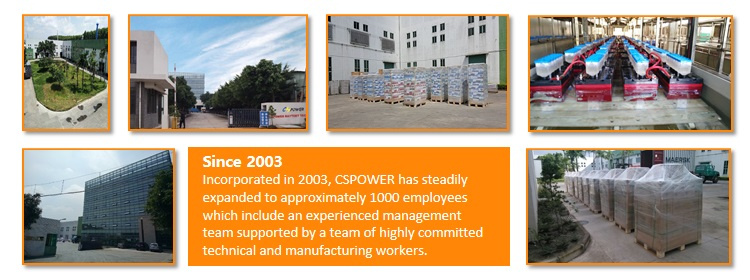

Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.

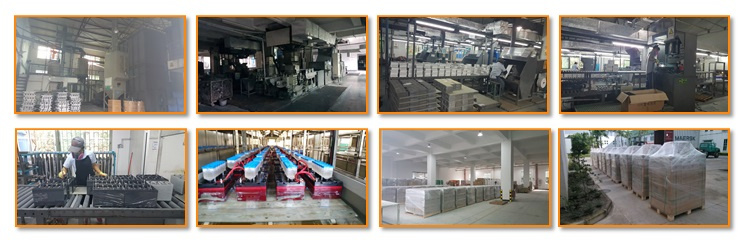

Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.

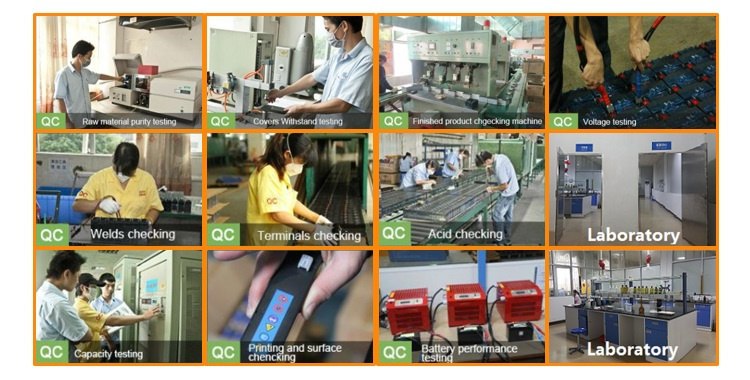

With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
