| Prod Model: |
CS12-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sealed: |
Sealed, Free Maintenance |
| Capacity: |
100ah |
| Weight: |
31.1kg |
| Delivery Time: |
7days |
| Export Markets: |
Global |
| Expected Cycle Time: |
10-12 Years |
| Size: |
L*W*H=331*173*213mm |
| Brand: |
Cspower/OEM |
| Warranty: |
3years |
| Terminal Type: |
T10 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
AGM |
Product Description

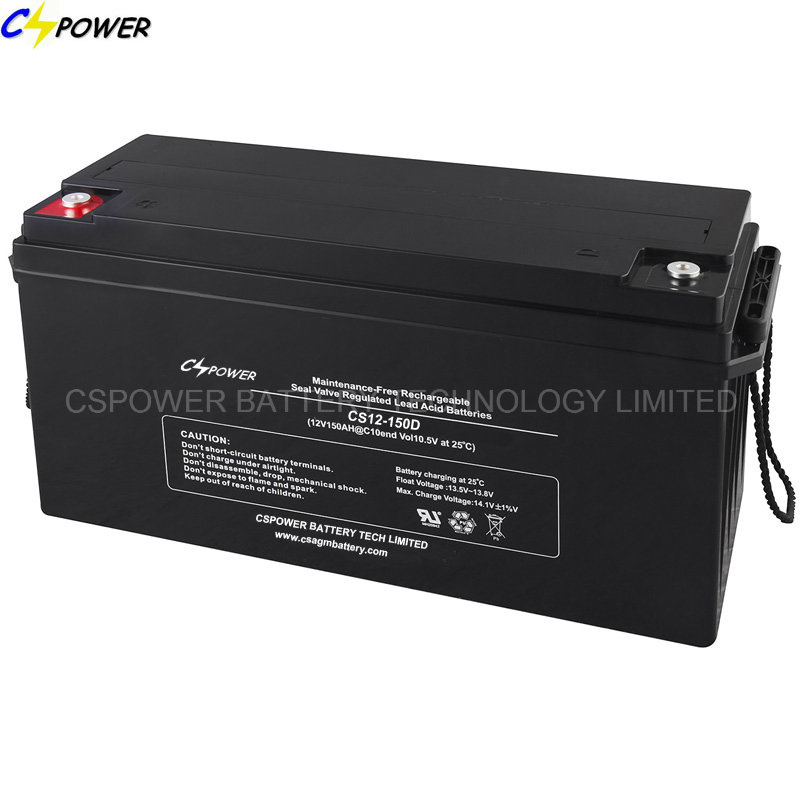

Deep Cycle AGM Battery for Solar Power System 12V150ah
1. Solar dry deep cycle agm battery 12V
2.12V100Ah, 200Ah, 250Ah, 300Ah
3. Delivery time 7days
4. For off grid solar, wind systems
Solar deep cycle AGM battery series Description
>Our 12V Deep Cycle Lead-Acid Solar Batteries up to 300Ah (D Type, "D" has 3years free replace, is the best partner for solar and wind system use. Solar Storage Battery - Solar Storage Deep Cycle VRLA AGM Battery 12V100Ah, 150Ah, 180Ah, 200Ah, 250Ah, 300Ah.
>Behind the model name stands for deep-cycle application) are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle(deep cycle).
>It uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, which allows for a much longer life in deep cycle applications.
12V150AH Deep Cycle Battery for Solar Power System 3years free replace Characters
1: Dry Deep Cycle Battery 12V can be used both for off grid Solar and Wind Power System
2: Battery Life time for 10-15 years
3: Warranty for 3 years
12V150AH Deep Cycle Battery for Solar Power System Main Features
1: Long service lifespan: 10 to 15 years design lifespan
2: Low self-discharge: Lower than 3% of rated capacity per month under normal operating temperature
3: ABS case (can be made with flame retardant V0)
4: No memory effect after repetitious usage or discharges
5: Maintenance-free operation
6: Sealed construction and leak proof
7: Safety valve regulated system and Non Spillable
8: Operating in any position
9: Deep discharge recovery
10: Wide operating temperature range -20degree to 60degree
12V150ah Deep Cycle Battery 3years free replace Application
1: Telephone switchboard, electric equipments, medical equipments, instruments, and meters
2: Computer, uninterrupted power source (UPS), Inverter
3: Power transmission and transformer station, switch control, and accident lighting
4: Fire fighting, safety device, and alarm monitoring
5: Aviation, spaceflight, and power storage
6: Automatic office system
7: Radio communication system
8: Emergency lighting and car/ship starting system
9: Portable electric appliances and mining system
10: Traffic and navigation signal lamp
11: Solar/Wind/Hybrid power systems
Solar Battery 12V150ah Deep Cycle Battery Terms Details
Payment Terms: T/T
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen/Hongkong
Lead Time: 5 - 7 days
Product Certificate: CE, ISO, UL, IEC
Our Advantage
1. As a 11 years history factory, Incorporated in 2003.
2. As a UL, CE, ISO9001, ISO14001 company, we believe that our battery quality can definitely satisfy you.
3. We focus on quality, never use faulse gel and recycle lead.
4. All production lines in our factory are automatic and imported from Germany, and produce lead plates by ourselves in order to control quality and lowest save cost in order to give best competitive price for customers.
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS12-1.2D | 12 | 1.2 | 0.55 | 1.21 | 98 | 3.86 | 45 | 1.77 | 52 | 2.05 | 59 | 2.32 | T0 |
| CS12-1.3D | 12 | 1.3 | 0.55 | 1.21 | 98 | 3.86 | 45 | 1.77 | 52 | 2.05 | 59 | 2.32 | T0 |
| CS12-1.9D | 12 | 1.9 | 0.87 | 1.91 | 178 | 7.01 | 35 | 1.38 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-2.9D | 12 | 2.9 | 1.05 | 2.31 | 79 | 3.11 | 56 | 2.20 | 100 | 3.94 | 106 | 4.17 | T0 |
| CS12-2.3D | 12 | 2.3 | 0.90 | 1.98 | 178 | 7.01 | 34 | 1.34 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-3.3D | 12 | 3.3 | 1.24 | 2.73 | 134 | 5.28 | 67 | 2.64 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-3.5D | 12 | 3.5 | 1.28 | 2.82 | 134 | 5.28 | 67 | 2.64 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-4D | 12 | 4 | 1.35 | 2.97 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-4.5D | 12 | 4.5 | 1.53 | 3.37 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-5D | 12 | 5 | 1.70 | 3.74 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-5.5D | 12 | 5.5 | 1.86 | 4.09 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-5D | 12 | 5 | 1.67 | 3.67 | 151 | 5.94 | 51 | 2.01 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-6.5D | 12 | 6.5 | 2.00 | 4.4 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | T1 |
| CS12-7D | 12 | 7 | 2.10 | 4.62 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.2D | 12 | 7.2 | 2.20 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.5D | 12 | 7.5 | 2.30 | 5.06 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-8D | 12 | 8 | 2.35 | 5.17 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-9D | 12 | 9 | 2.50 | 5.50 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-10D | 12 | 10 | 3.10 | 6.82 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-10D | 12 | 10 | 2.95 | 6.49 | 151 | 5.94 | 65 | 2.56 | 111 | 4.37 | 116 | 4.57 | T2 |
| CS12-12D | 12 | 12 | 3.35 | 7.37 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-14D | 12 | 14 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-15D | 12 | 15 | 4.80 | 10.56 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-17D | 12 | 17 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-18D | 12 | 18 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.50 | 12.10 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-24D | 12 | 24 | 7.60 | 16.72 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-24D | 12 | 24 | 7.80 | 17.16 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T32 |
| CS12-26D | 12 | 26 | 8.10 | 17.82 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 8.60 | 18.92 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 9.00 | 19.80 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T4 |
| CS12-33D | 12 | 33 | 10.00 | 22.00 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.20 | 22.44 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-38D | 12 | 38 | 12.20 | 26.84 | 197 | 7.76 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-40D | 12 | 40 | 13.0 | 28.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 13.50 | 29.70 | 197 | 7.76 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | T12 |
| CS12-50D | 12 | 50 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 224 | 8.82 | T12 |
| CS12-55D | 12 | 55 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 229 | 9.02 | T9/T16 |
| CS12-60D | 12 | 60 | 19.40 | 42.68 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T7 |
| CS12-65D | 12 | 65 | 20.50 | 45.10 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 22.00 | 48.40 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-80D | 12 | 80 | 23.40 | 51.48 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 22.50 | 49.50 | 350 | 13.78 | 169 | 6.65 | 179 | 7.05 | 179 | 7.05 | T14 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 307 | 12.09 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T8 |
| CS12-100D | 12 | 100 | 29.80 | 65.56 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-100P | 12 | 100 | 30.00 | 66.00 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-110D | 12 | 110 | 31.10 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-110P | 12 | 110 | 33.40 | 73.48 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-120D | 12 | 120 | 36.50 | 80.30 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-150D | 12 | 150 | 42.50 | 93.50 | 484 | 19.06 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-160D | 12 | 160 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T18 |
| CS12-165D | 12 | 165 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T11 |
| CS12-180D | 12 | 180 | 56.50 | 124.30 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-200D | 12 | 200 | 60.00 | 132.00 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64.00 | 140.80 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69.50 | 152.90 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T9 |
| CS12-250P | 12 | 250 | 68.00 | 149.60 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-300D | 12 | 300 | 73.00 | 160.60 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
