Prod Model: |
DC85-12 |
Color: |
OEM |
Service: |
OEM Is Ok |
Type: |
Lead-Acid Batteries |
Usage: |
Boat |
Nominal Voltage: |
12V |
Discharge Rate: |
Low Discharge Rate |
Shape: |
Square Battery |
Rechargeable: |
Chargeable |
Product Description

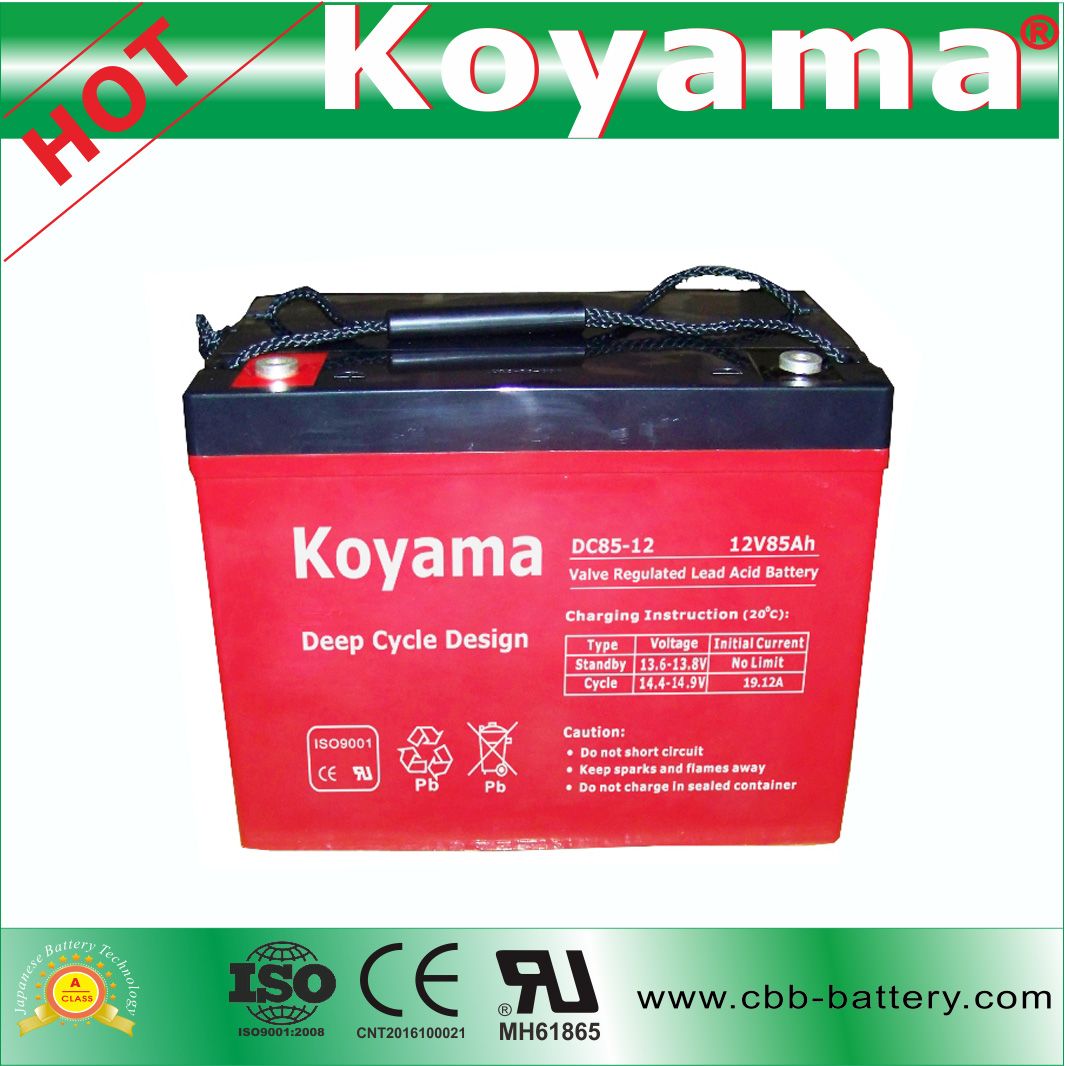

KOYAMA® DC Series Deep Cycle AGM Batteries For Deep Cycle Services
Deep-Cycle AGM batteries are ideal for applications that require sealed batteries with heavy-duty cycling capabilities or for backup power.
Benefits:
High Capacity and Long Life;
True Deep Cycle Construction For Long Life;
Superior Corrosion Resistance;
Ensures Fully Formed, Voltage Mathced Plates;
Excellent Bonding of Active Material Paste to Grids Resulting in Longer Life;
Enhanced Electrolyte Retention;
DOT, IATA, ICAO and IMDG Approved as Safe for Air & Sea Transportation;
Sure and Safe Operation of Batteries;
Longer Shelf Life, Easy Storage;
Rugged Construction, Shock and Vibration Resistant;
Recognized Around The World
Features:
-New High-Density Active Paste Material.
-Heavy Duty Thick Grids.
-Special Lead-Calcium Alloy Grids.
-Tank Formation Activation of Plates.
-10 Days Curing Chamber Process.
-Unique Low Resistance Micro-Porous Glass Fiber Separators.
-Maintenance Free, Spill-Proof / Leak Proof.
-Self Regulating Pressure Relief Valves.
-Low Self Discharge Rate, Only 1% Per Month.
-Faster Recharging Time.
-Excellent Recovery from Deep Discharge.
Applications:
-Aerial Work Platform (AWP)/Access
-Material Vessels
-Floor Machines
-Recreational Vehicle (RV)
-Medical Mobility
-Electric Boats
-Golf / Utility / Neighborhood Electric Vehicle (NEV)
-Wheel chairs
-Remote Monitoring & Instrumentation
-Renewable Energy Systems(Solar, Small Wind and Small Hydro)
Certificates: CE/ISO/ROHS
Specifications:
Model No | Rated Voltage(V) | Capacity (Ah) C20 | Dimension | Weight | Terminal Type |
Length | Width | Height | Total Height | kg |
mm | mm | mm | mm |
DC200-6 | 6 | 200 | 306 | 168 | 220 | 222 | 30.5 | T5 |
DC210-6 | 6 | 210 | 260 | 180 | 247 | 252 | 29.5 | T5 |
DC220-6 | 6 | 220 | 306 | 168 | 220 | 222 | 32.0 | T5 |
DC225-6 | 6 | 225 | 243 | 187 | 275 | 275 | 31.5 | T5 |
DC226-6 | 6 | 226 | 260 | 180 | 247 | 252 | 30 | T5 |
DC250-6 | 6 | 250 | 260 | 180 | 265 | 272 | 34.5 | T5 |
DC310-6 | 6 | 310 | 295 | 178 | 354 | 360 | 46.0 | T5/T6 |
DC330-6 | 6 | 330 | 295 | 178 | 354 | 360 | 46.6 | T5/T6 |
DC380-6 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 | T5/T6 |
DC420-6 | 6 | 420 | 295 | 178 | 404 | 410 | 57 | T5/T6 |
DC200-8 | 8 | 200 | 260 | 182 | 295 | 301 | 39.5 | T5 |
DC14-12 | 12 | 14 | 152 | 99 | 96 | 102 | 4.1 | F1/F2 |
DC20-12 | 12 | 20 | 181 | 77 | 167 | 167 | 6.1 | T1/L1 |
DC24-12 | 12 | 24 | 166 | 175 | 126 | 126 | 8.5 | T1 |
DC26-12 | 12 | 26 | 165 | 126 | 174 | 174 | 9.0 | T2 |
DC35-12 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 | T3 |
DC40-12 | 12 | 40 | 198 | 166 | 174 | 174 | 14.5 | T3 |
DC55-12 | 12 | 55 | 229 | 138 | 208 | 212 | 16.8 | T3 |
DC70-12 | 12 | 70 | 350 | 167 | 178 | 178 | 23.5 | T3 |
DC75-12 | 12 | 75 | 260 | 169 | 211 | 215 | 25 | T3 |
DC85-12 | 12 | 85 | 260 | 169 | 211 | 215 | 26.1 | T3 |
DC90-12 | 12 | 90 | 307 | 169 | 211 | 216 | 28.5 | T3 |
DC100-12 | 12 | 100 | 307 | 169 | 211 | 216 | 30.5 | T3 |
DC110-12 | 12 | 110 | 331 | 174 | 214 | 220 | 33.5 | T4 |
DC120-12 | 12 | 120 | 407 | 173 | 210 | 233 | 39.5 | T5 |
DC135-12 | 12 | 135 | 341 | 173 | 283 | 289 | 41.5 | T5 |
DC150-12 | 12 | 150 | 484 | 171 | 241 | 241 | 46.0 | T4 |
DC180-12 | 12 | 180 | 532 | 206 | 216 | 222 | 56 | T4 |
DC200-12 | 12 | 200 | 532 | 206 | 216 | 222 | 58.8 | T4 |
DC210-12 | 12 | 210 | 522 | 240 | 219 | 225 | 66 | T5 |
DC240-12 | 12 | 240 | 520 | 269 | 203 | 209 | 71.0 | T5 |
DC260-12 | 12 | 260 | 520 | 268 | 220 | 226 | 77 | T5 |
