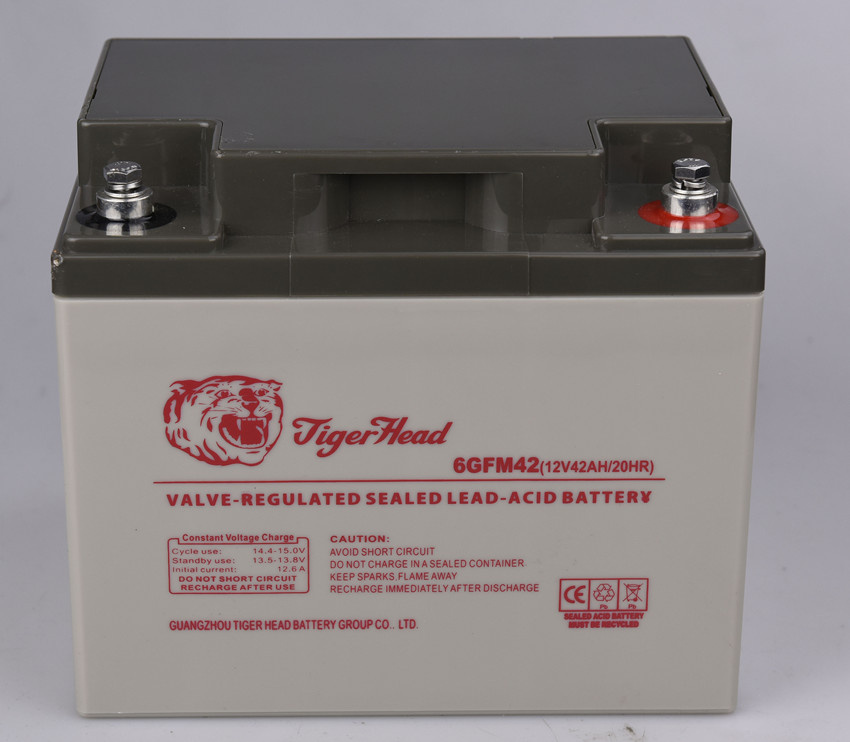

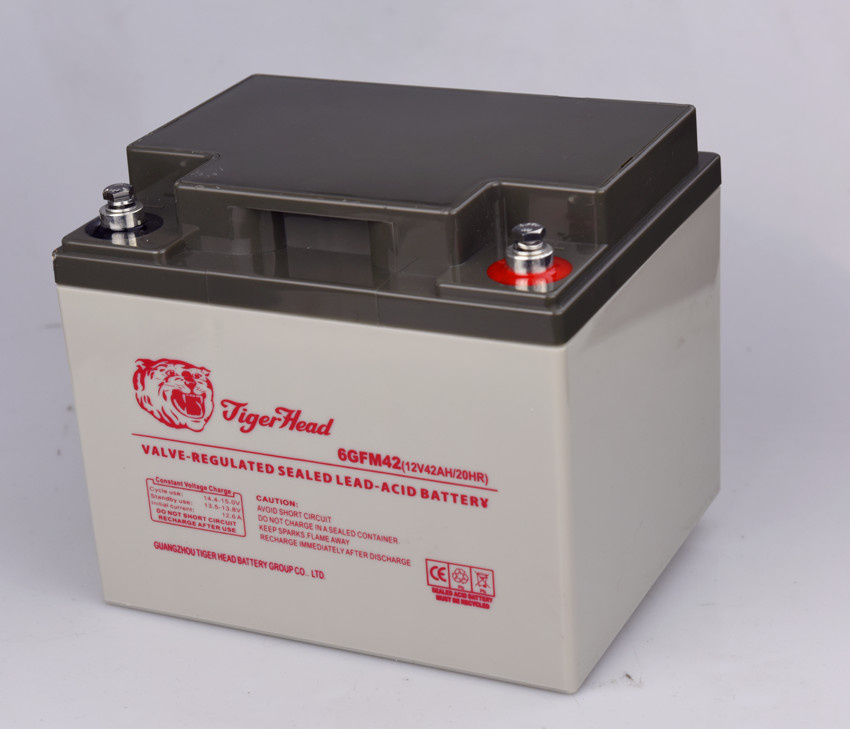

Deep Cycle Battery 6gfm42 with Good Price

Deep Cycle Battery 6gfm42 with Good Price
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: T/T
Prod Model: 6GFM42
Model No.: 6gfm42
Voltatge: 12V
Capacity: 42ah/20hr
Measurements(Cm): 255*97*203
Total Weight: 12.5kgs

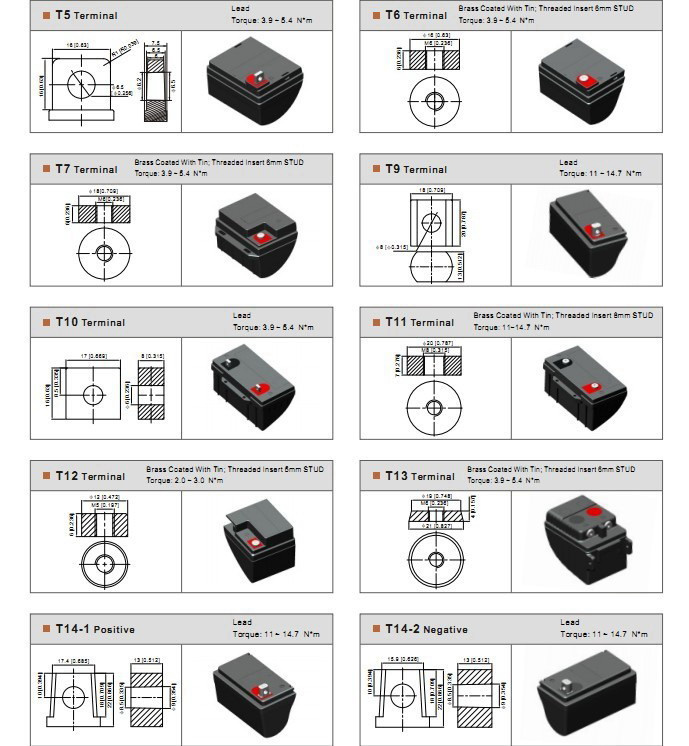

Ternimal Type: T7
Type: Lead-Acid Batteries
Usage: Lighting
Nominal Voltage: 12V
Discharge Rate: Low Discharge Rate
Shape: Square Battery
Rechargeable: Chargeable

Product Description






General Features

  1. Long time discharge
  2. Suitable for standby power and energy storage power use
  3. Special plate design, long cycle lifetime
  4. Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime
  5. Using special separator to boost up the battery performance inside
  6. High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment
  7. High gas recombined reaction efficiency
  8. Little water losing, no electrolyte stratification phenomenon
  9. Long storage time
  10. Good deep discharge resilience performance
  11. Using gas silicon dioxide, small granule degree, bigger than surface area

Typical Applications

1) Cycle applications
  1. Golf trolleys
  2. Garden equipments
  3. Portable equipments
  4. Wheel chairs
  5. Solar and wind mill units
  6. Medical equipments
  7. Flash units also for mining (head flash)
  8. Portable video/radio
  9. Traffic lights
  10. Street signs
  11. Boats or buoys
  12. Cottage camping
  13. SOS pillars
  14. Toys and hobby applications
  15. Portable equipments for communication
  16. Testing, distance measuring etc.
  17. Pump system
2) Stand By applications
  1. Telecommunication backup
  2. Power plants
  3. Burglar alarms
  4. Medical equipments (stationary and portable i.E.X- ray)
  5. Computer back-up (high power)
  6. Communication systems
  7. Fire alarm systems
  8. Transmitter systems
  9. Cash register systems
  10. Emergency lights signal systems
  11. Telephone systems
  12. Clocks systems
  13. Uninterrupted
  14. Power supplies
  15. Elevators emergency power supply (skyscrapers)
  16. Solar applications
  17. Mobile stations
  18. Airport / runway emergency illumination
  19. Emergency power supply for hospitals
  20. Radar and satellite stations

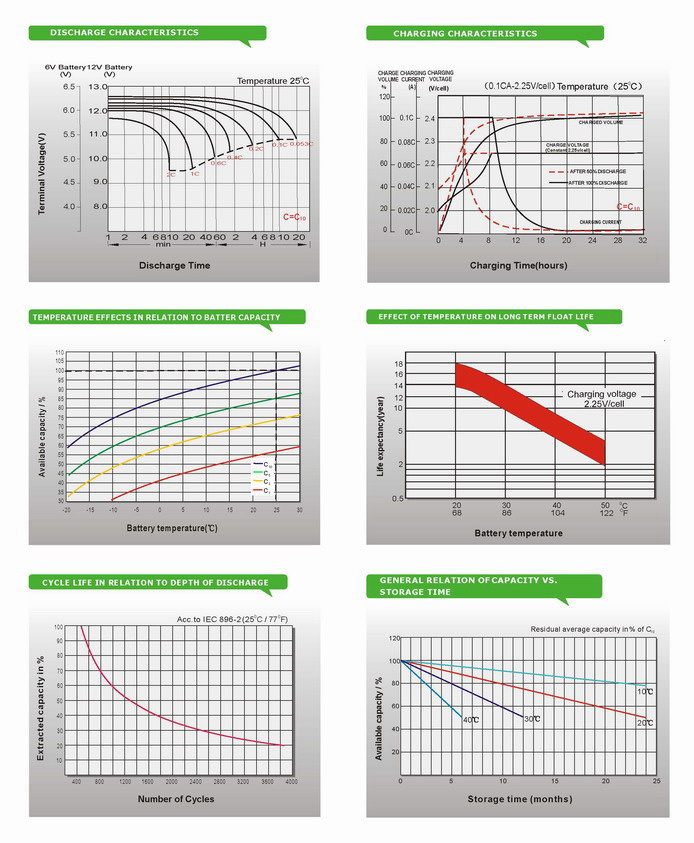

Curve Picture




Specifications



ModelNominal
Voltage
Rated Capacity(AH)Approx DimensionApprox
Weight
Terminal
Type
20HR10HR5HR1HRLengthWidthHeightTotal Height
(V)1.80
V/cell
1.80
V/cell
1.75
V/cell
1.67
V/cell
MmIn.MmIn.MmIn.MmIn.KgLbs
3GFM60642.456051.536.61857.28112.04.41205.08.07205.08.079.120.1T2
3GFM1206124.8120.0103.073.2280.011.0128.05.04203.07.99203.07.9916.837.0T6
3GFM1506156.0150.0129.091.5260.010.2180.07.09247.09.72253.09.9621.246.7T7
3GFM200H6210.0200.0172.0122.0306.012.0168.06.61222.08.74228.08.9828.262.2T8
6GFM381240.038.032.723.2197.07.76165.06.50170.06.69170.06.6912.226.9T6
6GFM401240.038.533.123.5255.010.097.03.82203.07.99203.07.9912.527.6T7
6GFM451246.845.038.727.5197.07.76165.06.5170.06.69170.06.6914.231.3T6
6GFM501252.050.043.030.5257.010.11325.20200.07.87200.07.8716.035.3T6
6GFM551257.255.047.333.6229.09.02138.05.43205.08.07211.08.3116.536.4T6
6GFM601262.460.051.536.60260.010.2168.06.61208.08.19214.08.4318.540.8T6
6GFM651265.062.153.637.5348.013.7167.06.57178.07.01178.07.0119.242.3T6
6GFM701272.870.060.042.7348.013.7167.06.57178.07.01178.07.0121.647.6T6
6GFM751278.075.064.545.8260.010.2168.06.61208.08.19214.08.4322.349.2T6
6GFM801283.280.069.048.8260.010.2168.06.61208.08.19214.08.4324.052.9T6
6+GFM901293.690.077.554.9330.013.0173.06.81212.08.35220.08.6628.061.7T11
56GFM10012104.0100.086.061.0330.013.0173.06.81212.08.35220.08.6630.467.0T11
6GFM12012124.8120.0103.273.2408.016.1177.06.97225.08.86225.08.8630.467.0T11
6GFM13512140.4135.0116.082.4345.013.6172.06.77274.010.8280.011.041.290.8T11
6GFM15012156.0150.0128.091.5483.019.0170.06.69238.59.39238.59.3943.595.9T11
6GFM18012187.2180.0155.0109.8532.020.9207.08.15214.08.43220.08.6652.8116.4T11
6GFM-20012208.0200.0172.0122.0522.020.6240.09.45218.08.58224.08.8260.2132.7T11
6GFM25012260.0250.0215.0152.5522.020.6268.010.6220.08.66226.08.9073.0161.0T11
