| Prod Model: |
CS12-24D Inverter Battery |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Power: |
Inverter Battery 300ah |
| Size: |
L*W*H=165*125*175mm |
| Weight: |
7kgs Deep Cycle Inverter Battery |
| Warranty: |
1 Year Inverter Battery / Lead Acid Battery |
| Expected Cycle Time: |
5-8 Years AGM Battery |
| Delivery Time: |
7 Days Inverter Battery for UPS Inverter |
| Export Markets: |
Global Solar Inverter Battery |
| Brand: |
Cspower/OEM |
| Proof: |
Water Proof, Non Spillable |
| Terminal: |
Screw Terminals |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Lead Acid Battery / Inverter Battery |
Product Description

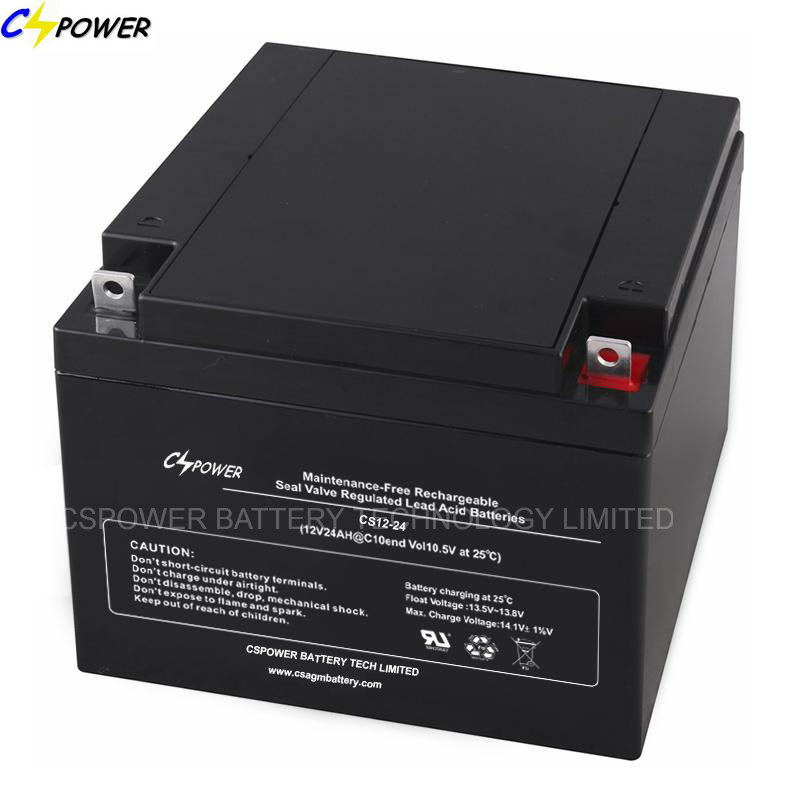

Deep Cycle Battery Inverter Battery 12V24ah for Inverter use
12V24ah Inverter Battery / UPS Battery / AGM Battery Characteristics
1. Sealed free maintenance deep cycle battery 12V24Ah 100Ah 200Ah 250Ah 300Ah
2. Inverter Battery / solar battery / AGM battery
3. OEM/ODM free charge
4. Warranty 1year free replacement
Inverter Battery for ups Inverter 12V24Ah Advanced Features
1. Environmentally friendly
2. Completely Maintenance-Free
3. Non-Spillable construction design.
4. Wide Operating Temperature Range(-20° C~+60° C)
5. Longer Life(20years designed life)
6. Explosion Proof
7. Valve Regulated & High Discharge Rate Capability
8. Low Self Discharge
9. Independent of Position
10. Ease of Shipment
11. No need of balanced charge or boost
12. No Memory
12V24Ah Lead Acid battery Inverter Battery Applicition
1, Solar & Wind power systems
2, Fire & security systems
3, Uninterruptible power supplies
4, Golf cart, Electric vehicle
5, Electric powered bicycle and wheelchairs
6, Marine equipment
7, Communication equipment
8, Power tools
9, Telecommunication systems
Terms Details
Payment Terms: T/T
Minimum Order: 200 Units
FOB Port: Guangzhou/Shenzhen/Hongkong
Lead Time: 5 - 7 days
Product Certificate: CE, ISO, IEC
Our Advantage
1. As a 11 years history factory, Incorporated in 2003.
2. As a UL, CE, ISO9001, ISO14001 company, we believe that our battery quality can definitely satisfy you.
3. We focus on quality, never use faulse gel and recycle lead.
Notice
- Matrix series batteries have acid in the case and are fully charged before leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye contact is made with electrolyte, seek medical advice immediately.
- Do not use a new battery with an old one.
- Do not use the battery in sealed container.
- Each battery should have detailed record including the ex-factory date, installing date and using record.
- Check the connection of wire in a fixed interval (once a year). If there is any looseness should tighten the wire.
- Wipe the surface of the battery with soft cloth in a fixed interval (once three months) and always keep the battery clean.
- Avoid using any kind of organic solvents for cleaning the surface of the battery.
Welcome to contact us for the battery details.
Contact CSPOWER Details:
Web: www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/
| AGM battery Inverter Battery for UPS Inverter SPECIFICATIONS |
Nominal Voltage |
12V Inverter Battery |
Rated Capacity (10 hour rate) |
24AH |
Dimensions
(Length*Width*Height*Total Height )/mm |
L*W*H*TH=165*125*175*180mm |
Weight Approx | 7kgs Inverter Battery / AGM Battery |
|
Inverter Battery CHARACTERIESTICS |
Capacity
25 °C | 10 Hour rate | 24AH |
| 5 Hour rate | 21.5AH |
| 1 Hour rate | 15.9AH |
Internal Resistance |
Fully charged battery at 25°C |
4.2m Ω |
Capacity affected by temperature
(20 hour rate) |
40 °C
25 °C
0 °C
-15 °C |
102%
100%
85%
65% |
Self-Discharge
At 25°C |
Capacity after 3 month storage
Capacity after 6 month storage
Capacity after 12 month storage |
91%
82%
64% |
Terminal Type |
T10 or T16 Inverter Battery |
Charge
(Constant Voltage) |
Cycle use |
Initial Charging Current less than 40 A
Voltage 14.40~15.00V |
Float use |
Voltage 13.50~13.80V |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
