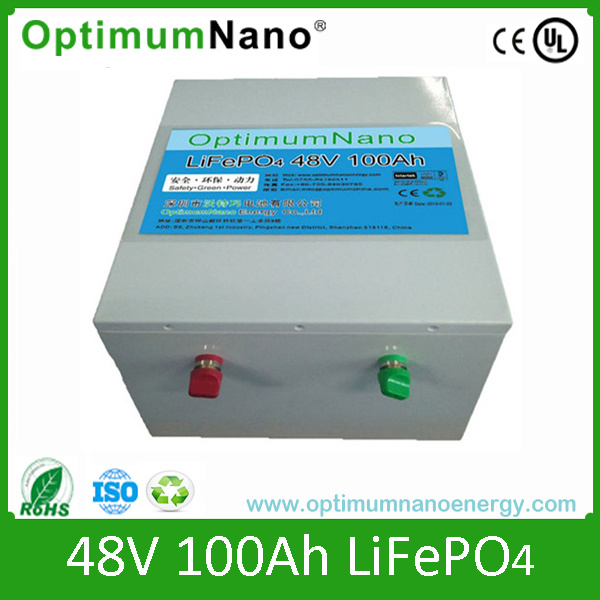

Deep Cycle Camper Car 48V 100ah LiFePO4 Battery Pack

Prod Model:	OPT-012-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cell:	32650 3.2V 5ah
Casing Material Of Single Cell:	Nickel Plated Steel
Color:	Blue, Black or Gray
Long Life Cycle (100%Dod):	More Than 2000times at 1c
Warranty:	2 Years
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Electrolyte:	Lithium Iron Phosphote

Product Description

camper car 48v 100ah LiFePo4 battery pack

Specification:

 Electrical Charateristics

Nominal Voltage	51.2V
Nominal Capacity	200Ah
Impedance (Max. at1000Hz)	≤50mΩ
Expected Cycle Life	2-3 years

Mechanical Characteristics

Height	500±2mm
Width	500±2mm
Length	300±2mm
Weight	~130.0Kg

Operation Conditions

Charge Method	Constant Current/Constant Voltage (CC-CV)
Max. Charge Voltage	58.4V
Standard Charge Current	40A
Charge Temperature	0ºC~45ºC
Max. Continuous Discharge Current	100A
Peak Instant               Discharge Current	150A
Peak Instant               Discharge Time	10 seconds
Discharge Cut-off Voltage	32.0V
Discharge Temperature	-20ºC~65ºC
Storage Temperature	0ºC~45ºC

----Advantages:

1. Safety: Most safest Li-Ion battery, built-in BMS, none fire, none explosive
2. Environment friendly, Clean and Green energy, no toxic material contained
3. Low self-discharge: Less than 3% per month
4. Wide range temperature adaptability: -20--60degrees celsius
5. Long life cycles: More than 2000 cycles in 1C
6. No memory effect: Always ready for charge and use, with no need to charge after a full discharge.
7. High energy density and high power output
8. Lighter and smaller: 1/3 weight of lead acid battery


----Application

1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
7. Solar and wind power energy storage system

----Packing and shipping

The LiFePO4 Battery has passed the UN38.3, according to the report ID: W10173003116D~1.
Separate Lithium lron Phosphate Batteries when shipping to prevent short circuits.
All the OptimumNano LiFePO4 Batteries are packed in strong packaging according to the General Packing Requirements of 5.0.2.
Transport Fashion: Be applicable to transport by air, by shipped, by Passenger and Cargo Aircraft.
More information can be obtained from Label with an indication including packed with lithium batteries, handled with care and the special procedures with a telephone number that should be followed when the package is damaged.
