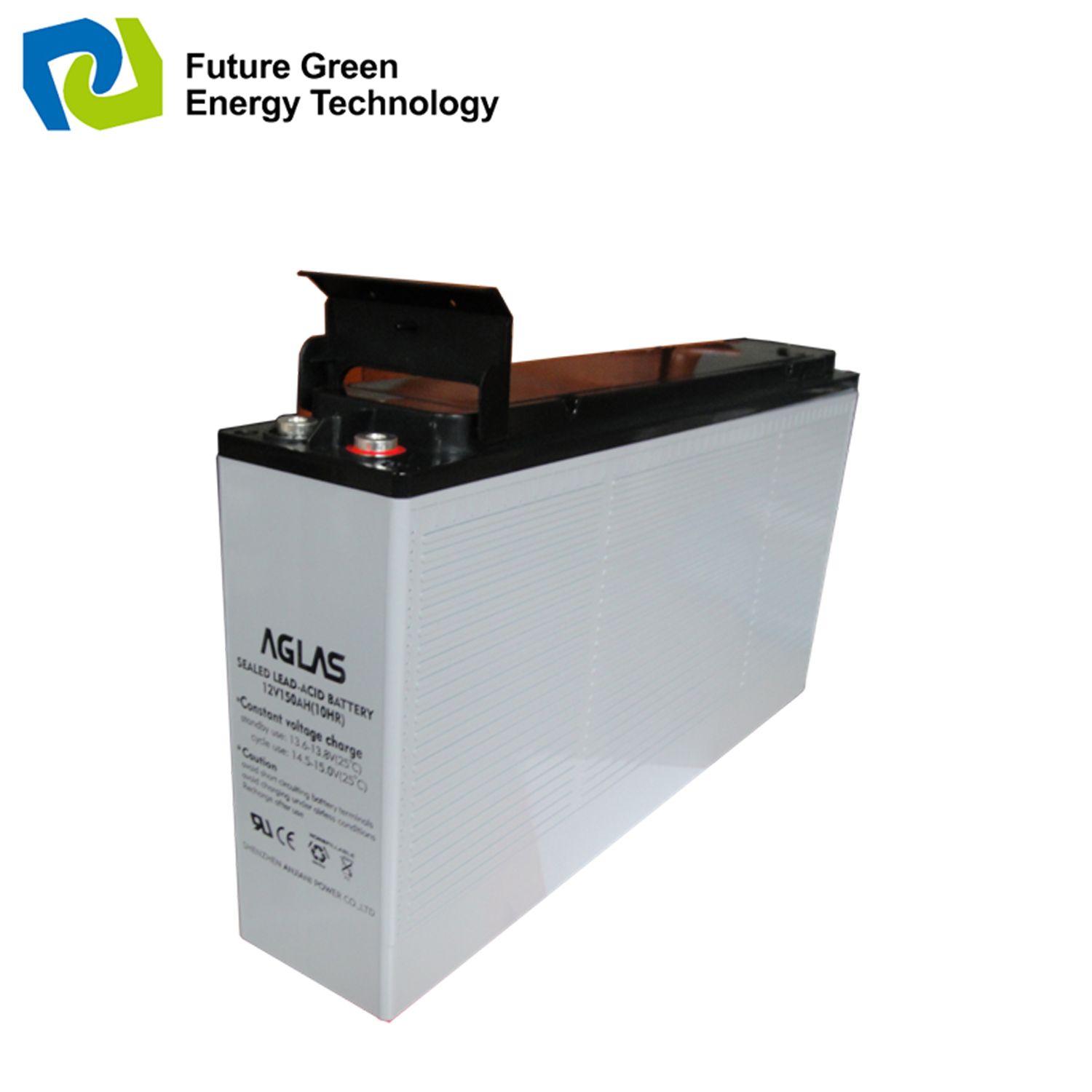

Deep Cycle Front Terminal Type VRLA AGM Acid Battery for Telcom

Prod Model:	FG333
Item Name:	12V200ah Deep Cycle AGM Lead Acid Telcom Battery
Maintenance Type:	Free
Size:	277*106*222*244mm
Weight:	17kg/PCS
Material:	Fire Proof Case
Warranty:	2 Years
Terminal:	Copper
Working Temperate:	-15 to 45
Certificate:	Ce, MSDS
Cell:	6
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Deep Cycle Front Terminal Type VRLA AGM Acid Battery for Telcom

Sealed lead-acid rechargeable battery (VRLA battery) is leak-proof and maintenance free.
The Superiority of VRLA battery is derived from its uniquely efficient oxygen recombination technology. The oxygen evolved from the positive plates diffuses through the micro porous glass fiber mat to the negative plates where it is changed back to water by recombination reaction, eliminating the need for water addition .The result is a maintenance free battery
General Feature:
1. Long battery life, high capacity, Superior of recovery after discharge.
2. ABS material: increase the strength of battery container.  (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self discharge rate.
4. Silver- coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity.
5. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
6. Maintenance-Free Operation
7. Low Self-Discharge1. Suitable for 19inch and 23inch power cabinet.

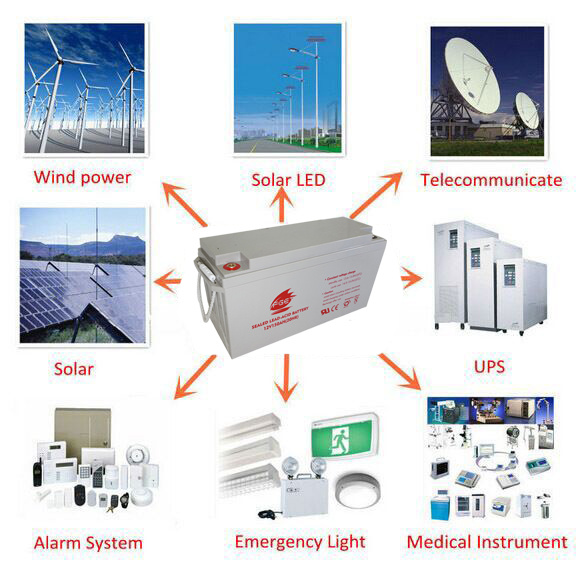

2. Used in telecom system including exchange board, microwave station, mobile base station, data center, radio and broadcast station.
3. Great for power supply system of private network or LAN.
4. Used as signal system battery and emergency lighting system battery.
5. Perfect for EPS and UPS system.1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Front Terminal Series:


Model	Nominal Voltage (V)	10HR Capacity (Ah)	External Dimension				Net Weight
			Length	Width	Height	Total Height
			mm	mm	mm	mm	kg(+3%)
FST12-55	12	55	277	106	223	223	16.0
FST12-80	12	80	562	114	188	188	25.0
FST12-100	12	100	507	110	223	223	29.4
FST12-105/110	12	105/110	394	110	286	286	30.5
FST12-125	12	125	552	110	239	239	37.5
FST12-150/155	12	150/155	551	110	288	288	44.0
FST12-160	12	160	551	110	288	288	44.5
FST12-170/175	12	170/175	546	125	316	316	53.5
FST12-180	12	180	560	125	316	316	54.0
FST12-200	12	200	560	125	316	316	56.0

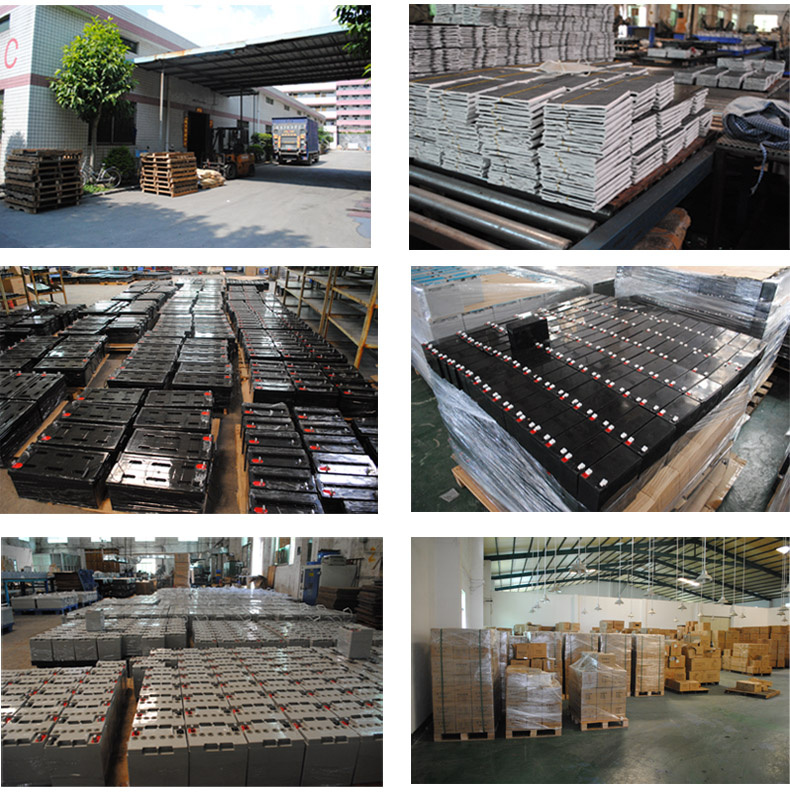

Factory Show:

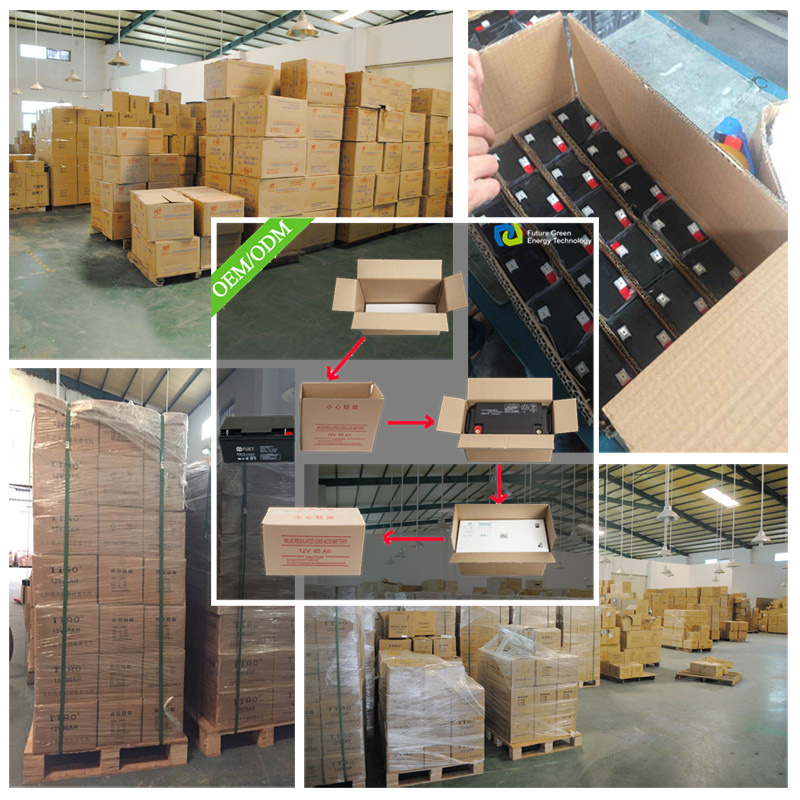

Packing Details:

Our Qualification:



Our Services:
 Samples and OEM, Warranty and After-Sale Service:

•  Sample can be provided for quality testing
•  OEM Welcomed
•  Warranty:2 Year
•  After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support

How To Ask for Support if products failure in warranty?
1. Email us about PI number, serial number,Product S/N number,  show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.
