| Prod Model: |
Gel Battery CG12-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Deep Cycle Battery Solar Gel Battery 12V180ah |
| Size: |
484*171*239mm |
| Weight: |
42.5kg |
| Warranty: |
3 Years |
| Delivery Days: |
10-15 Days |
| Color: |
Black |
| Capacity: |
150ah |
| Brand: |
Cspower/OEM |
| Certificate: |
CE, ISO, IEC |
| Lifespan: |
15-20 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Wind and Solar System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Solar Gel Battery 12V180ah |
Product Description
Product Description

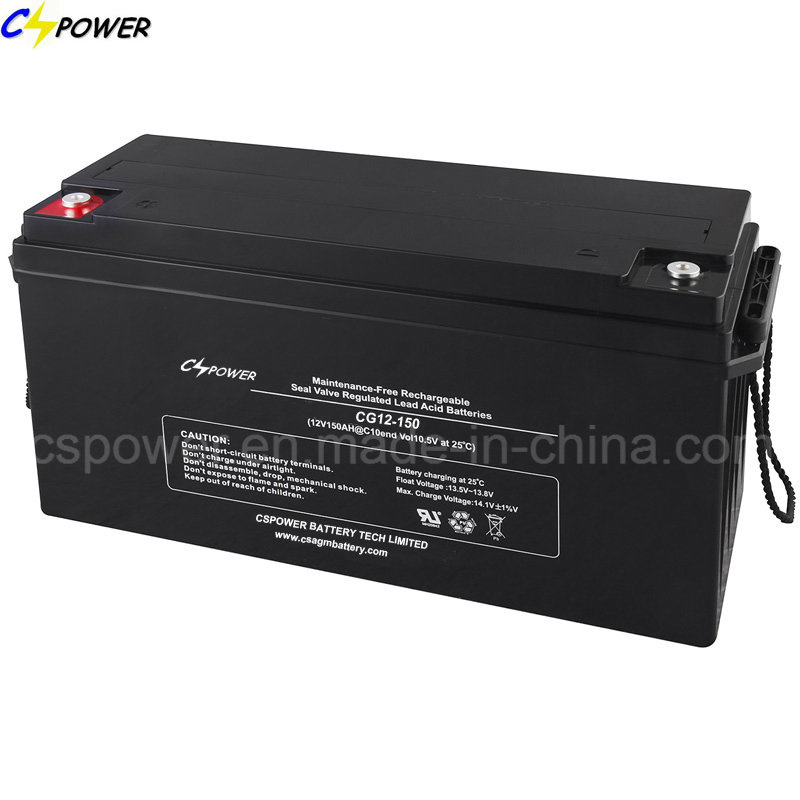

Deep Cycle Gel Battery 12V 150ah for UPS system
Gel Battery Solar GEL Battery series Description
Gel battery Solar Gel battery accumulator shows some distinctive advantages over flooded battery or AGM battery, such as super thermal stability, high deep discharge capability, good recovery from deep discharge.
Even if the battery is left discharged for three days, it will recover to 100% of capacity.
With the above-mentioned advantages, the gel battery has long service life, specially suitable for motive power applications, such as golf trailer, sruubber, folklift, etc.
The deep discharge cycles increased 50% as compared with the AGM battery.
Deep Cycle Gel Battery 12V 150ah for UPS system Characteristics
1. Sealed free maintenance deep cycle battery 12V100Ah 150Ah 200Ah 250Ah 300Ah
2. GEL solar battery
3. OEM/ODM free charge
4. Warranty 3years free replacement
Deep Cycle Gel Battery 12V 150ah for UPS system
Payment Terms: T/T
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen
Lead Time: 7-10 days
Product Certificate: CE, ISO, UL
Deep Cycle Gel Battery 12V 150ah for UPS system
Welcome to contact us for the battery details.
www.csagmbattery.com.
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25ºC | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CG12-33 | 12 | 33 | 10.4 | 22.9 | 196 | 7.70 | 131 | 5.16 | 155 | 6.10 | 170 | 6.69 | T9/T16 |
| CG12-38 | 12 | 38 | 12.2 | 26.84 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CG12-50 | 12 | 50 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-55 | 12 | 55 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-65 | 12 | 65 | 20,5 | 45.1 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CG12-70 | 12 | 70 | 22.0 | 48.4 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CG12-80 | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | T14 |
| CG12-85 | 12 | 85 | 29 | 64.10 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | T16A/T8 |
| CG12-100 | 12 | 100 | 30 | 66 | 331 | 13.0 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CG12-120 | 12 | 120 | 36.5 | 80.3 | 407 | 16.0 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CG12-134 | 12 | 134 | 41 | 90.2 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.14 | T9/T20 |
| CG12-150 | 12 | 150 | 42.5 | 93.5 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CG12-180 | 12 | 180 | 56.5 | 124 | 530 | 20.9 | 209 | 8.23 | 214 | 8.43 | 240 | 9.45 | T9 |
| CG12-200 | 12 | 200 | 60 | 132 | 522 | 20.57 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CG12-230 | 12 | 230 | 64 | 140.8 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CG12-250 | 12 | 250 | 68 | 150 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
Deep Cycle Gel Battery 12V 150ah for UPS system
Our Advantage
1. As a 11 years history factory, Incorporated in 2003.
2. As a UL, CE, ISO9001, ISO14001 company, we believe that our battery quality can definitely satisfy you.
3. We focus on quality, never use faulse gel and recycle lead.
4. All production lines in our factory are automatic and imported from Germany.
Deep Cycle Gel Battery 12V 150ah for UPS system
Why choose us
1. Door to door service.
2. Low cost raw material with high quality. We have own plates factory, can manufacture plates by ourselves.
3. Independent designer with more than 10 years design experience.
4. Chief engineers with more than 20years experience in battery field.
5. Product with the international market step.
6. We focus on quality, never use faulse gel and recycle lead.
7. All production lines in our factory are automatic and imported from Germany.
8. Our products are exported to Middle East, Europe, France, Canada, Japan, Korea and else.
9. We would like stand with you in same line to open market with long term business.
Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
Welcome to contact us for the battery details.
Attn: Mr.Leo (Sales manager)
-----------------------------------------------------------------------------
Shenzhen CSPOWER Battery Tech Co.,Ltd.
(GEL/AGM Battery, Inverter, Solar Energy Provider)
Add: Floor 3, Building B, Huafeng technology park, Baoan, Shenzhen, China
Web: www.csagmbattery.com
Tel: 86-755-29123661
Visit our factory viedo: http://cspower.en.made-in-china.com/
battery
solar battery
Solar GEL battery
Deep Cycle battery
12v150ah solar Gel battery
deeo cycle Gel battery
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
