| Prod Model: |
HTL12-300Ah |
| Model: |
High Tmeperature Gel Battery 12V300ah |
| Dimension: |
520*268*220*226mm |
| Weight: |
77kgs |
| Terminal: |
M8 |
| Color: |
Red Body with Balck Cover |
| Lifespan: |
18 Years |
| Warranty: |
3 Years |
| Delivery Time: |
15days |
| Export Market: |
Global |
| Certificate: |
Ce, IEC, ISO |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar and Wind System, Golf Use |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

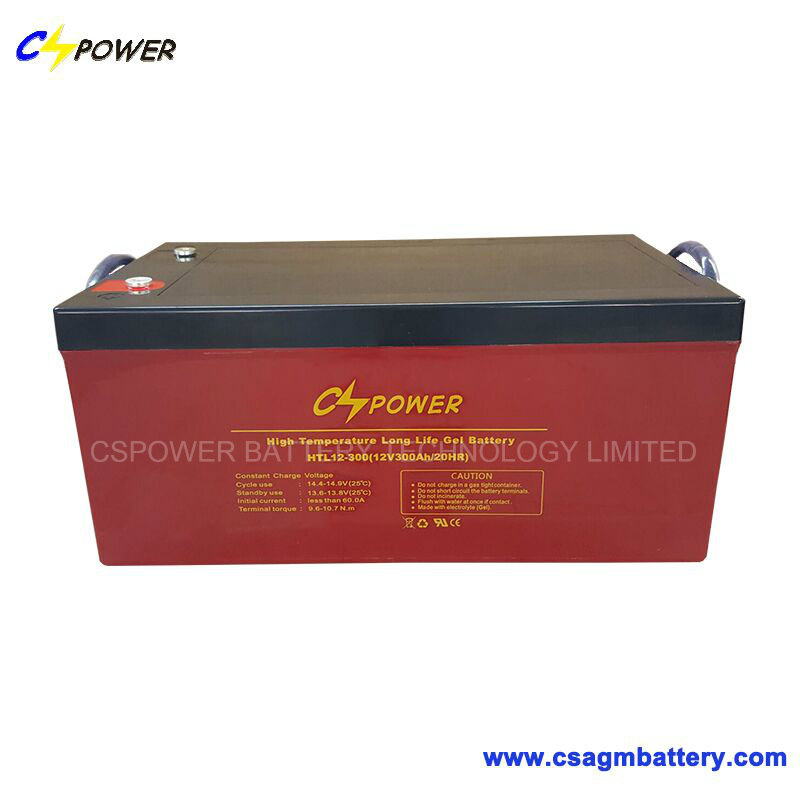

deep cycle gel battery 12V300Ah for solar charger controller, HTL12-300
gel battery, high temperature Gel battery, Cold temperature solar batteries, deep cycle battery, long life span battery, batteries lead acid, high DOD cycle times battery, Power Gel battery, UPS battery, solar inverter battery, solar charger controller battery, solar panel battery, Chinese manufacturer battery, dry battery, 12v200ah battery, Deep Cycle batteries, Emergency Lighting batteries, Electric Vehicle batteries, Telecom battery, Electric Wheel Chair battery, Power Tools battery, caravan battery , dry cell battery, deep cycle battery, power storage battery
deep cycle gel battery 12V300Ah for solar charger controller, HTL12-300
Characteristics
NEWEST IN 2016, CSPOWER PATENTED DEEP CYCLE LONG LIFE GEL BATTERY, BEST CHOICE TO WORK IN HOT/COLD TEMPERATURE SITES AND LONG LIFE OVER 15YEARS.
Many countries in Middle East and Africa such as Pakistan, Israel, Nigeria, Western African countries have an average temperature of 40°C during hot season. If the battery lay out of door, the temperature is even higher and can go up to 50 °C. You may already know it, for every 10°C increase in temperature, the battery life will be reduced by half.
Due to the nature and construction of the normal AGM lead acid battery, it cannot bear such a hot temperature, this is why for outdoor use have to be equipped with air-conditioner.
Not only does it increase your capital expenses (CAPEX) and operational expenditure (OPEX) by spending thousands of dollars per year and per site in maintenance & electricity fees, it will also increase the energy used and thus increase your CO2 emissions. Reduction of Energy Consumption and increase of Energy Efficiency is one of the most important keys for outdoor use application.
deep cycle gel battery 12V300Ah for solar charger controller, HTL12-300
Such problem also occur in super cold area such as Russia, Ukraine, Canada and so on.
Considering the above challenge, we developed a new range type of battery adapted for these environments.
We are proud to introduce our High/Cold Temperature Long Life Deep Cycle GEL Battery - HTL series.
Using thick plate design with special additives (super-C). This newly developed battery can work even high temperature up to 60°C and low temperature down to -20°C without the use of any air-conditioner.
deep cycle gel battery 12V300Ah for solar charger controller, HTL12-300
Features
HTL series is specially High-temperature sealed free maintenance deep cycle GEL battery with 15-20 years design life in float service, 30% more than standard Gel battery, and 50% more than Lead Acid AGM battery.
It meets with IEC, CE and ISO standards.With up-dated valve regulated technology and high purity raw GEL materials, the HTL series battery maintains high consistency for better performance and reliable standby service life. It is designed specially for using under high and cold temperature sites.
deep cycle gel battery 12V300Ah for solar charger controller, HTL12-300
Advantages for HTL Batteries
1. Three years warranty at 35°C-40°C average
2. Able to operate at -40°C to 60°C
3. Longer life and higher stability under high temp. environment (no air-con needed)
4. Use super-C additives lead plates: Deep discharge recovery capability
5. Cycle usage: 50% DOD, 1500 Cycles work in high/cold temp. area.
deep cycle gel battery 12V300Ah for solar charger controller, HTL12-300

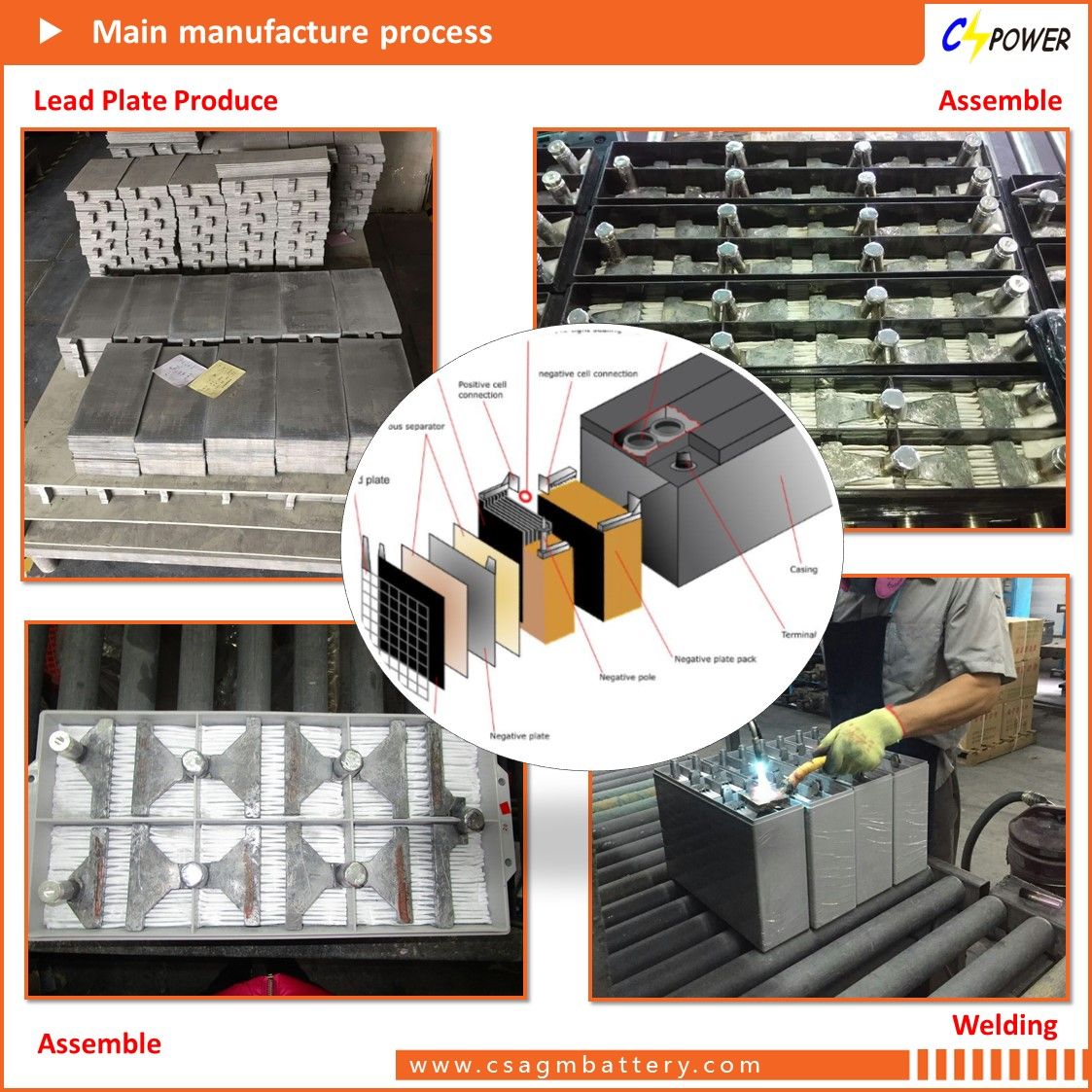

Construction
1. Positive plate: Thick high Sn low Ca grid minimize corrosion and prolong life
2. Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
3. Separator: Advanced AGM separator for ultra low float current
4. Electrolyte: nano Silicon GEL electrolyte import from Evonik Degussa Germany.
5. Battery container and cover: fire resistance ABS for higher temperature
6. Pillar seal: 100% factory tested, proven two layers epoxy resin seal
7. Relief valve : Complete with integrated flame arrestor
deep cycle gel battery 12V300Ah for solar charger controller, HTL12-300
Applications
BTS Stations, Solar & Wind energy system, UPS system, Golf Cart&Electric Wheels, and Other power system
deep cycle gel battery 12V300Ah for solar charger controller, HTL12-300

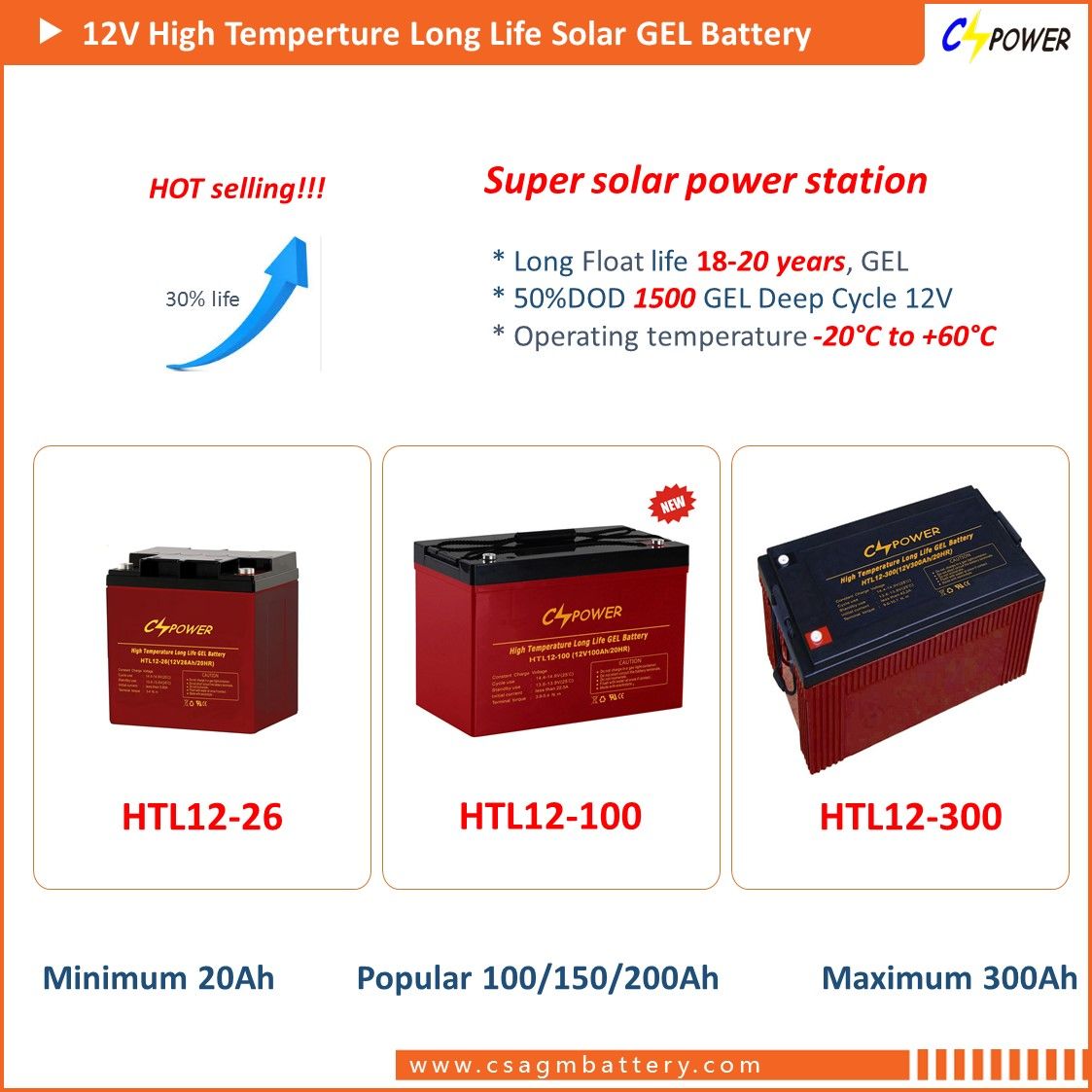

| CSPOWER MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) |
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) |
| HTL12-14 | 12 | 14 | 152 | 99 | 96 | 102 | 3.8 |
| HTL12-20 | 12 | 20 | 181 | 77 | 167 | 167 | 6.0 |
| HTL12-24 | 12 | 25 | 166 | 175 | 126 | 126 | 8.3 |
| HTL12-26 | 12 | 25 | 165 | 126 | 174 | 179 | 8.4 |
| HTL12-35 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 |
| HTL12-40 | 12 | 40 | 198 | 166 | 174 | 174 | 14.2 |
| HTL12-55 | 12 | 55 | 229 | 138 | 208 | 212 | 16.0 |
| HTL12-70 | 12 | 70 | 350 | 167 | 178 | 178 | 23.3 |
| HTL12-75 | 12 | 75 | 260 | 169 | 208 | 227 | 25.0 |
| HTL12-85 | 12 | 85 | 260 | 169 | 208 | 227 | 26.1 |
| HTL12-90 | 12 | 90 | 307 | 169 | 211 | 216 | 28.2 |
| HTL12-100 | 12 | 100 | 307 | 169 | 211 | 216 | 30.2 |
| HTL12-110 | 12 | 110 | 331 | 174 | 214 | 220 | 33.3 |
| HTL12-120 | 12 | 120 | 407 | 173 | 210 | 233 | 39.2 |
| HTL12-135 | 12 | 135 | 344 | 172 | 280 | 285 | 40.8 |
| HTL12-150 | 12 | 150 | 484 | 171 | 241 | 241 | 45.5 |
| HTL12-180 | 12 | 180 | 532 | 206 | 216 | 222 | 56.0 |
| HTL12-200 | 12 | 200 | 532 | 206 | 216 | 222 | 58.4 |
| HTL12-230 | 12 | 230 | 522 | 240 | 219 | 225 | 65.0 |
| HTL12-250 | 12 | 250 | 520 | 268 | 220 | 226 | 71.0 |
| HTL12-300 | 12 | 300 | 520 | 268 | 220 | 226 | 77.0 |
deep cycle gel battery 12V300Ah for solar charger controller, HTL12-300

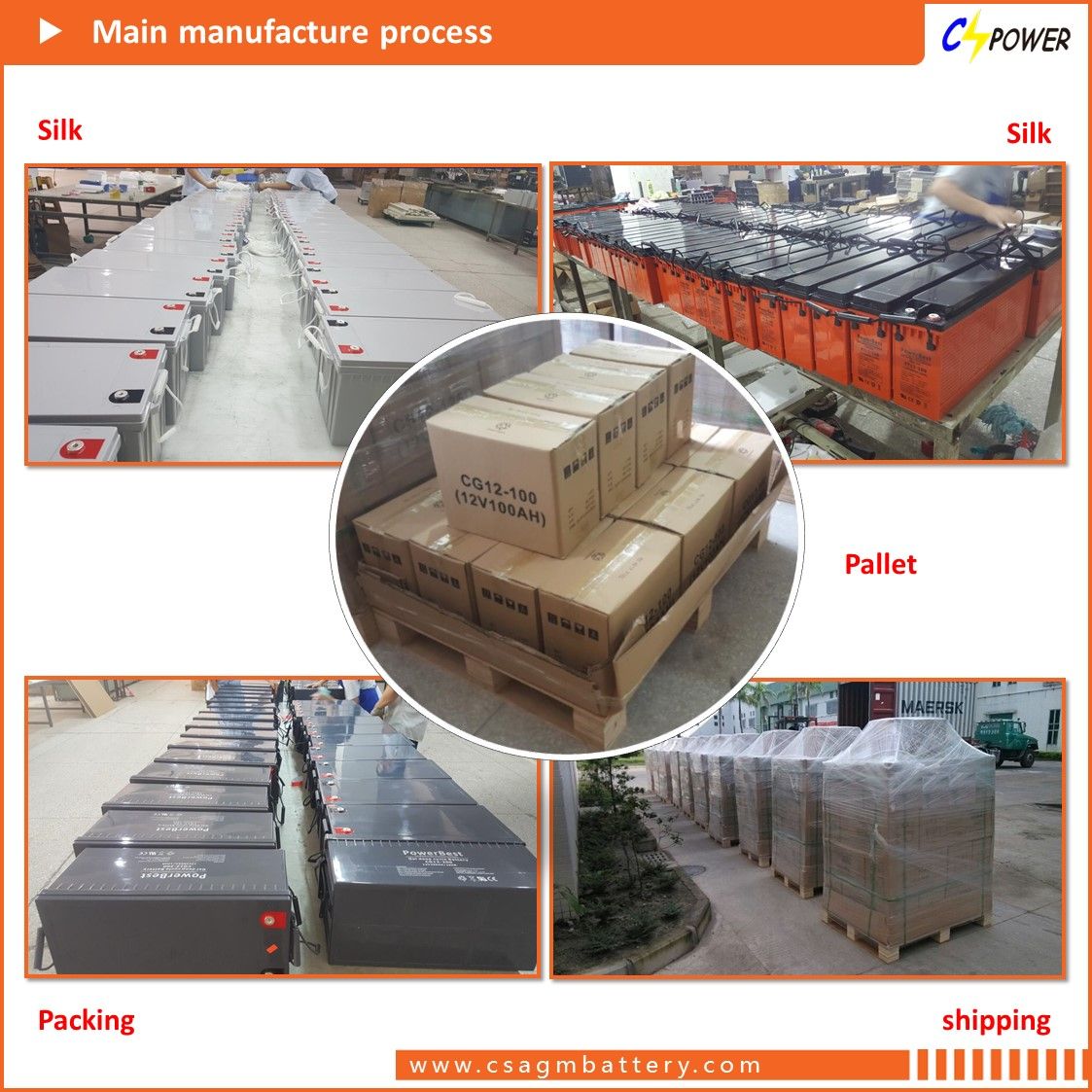

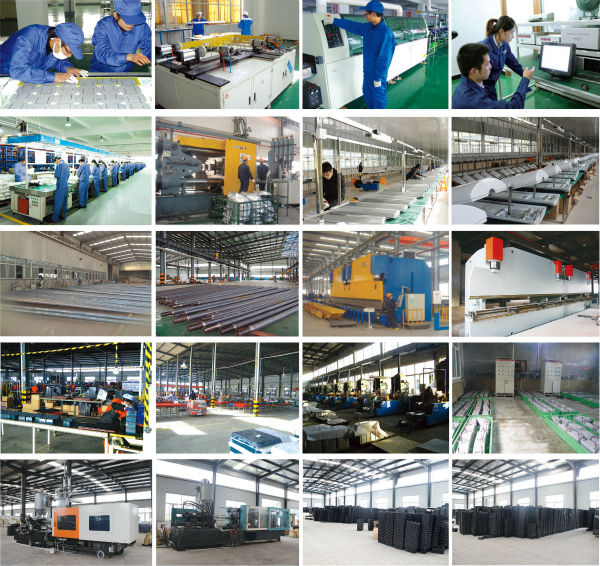

Battery factory pictures sharing
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
