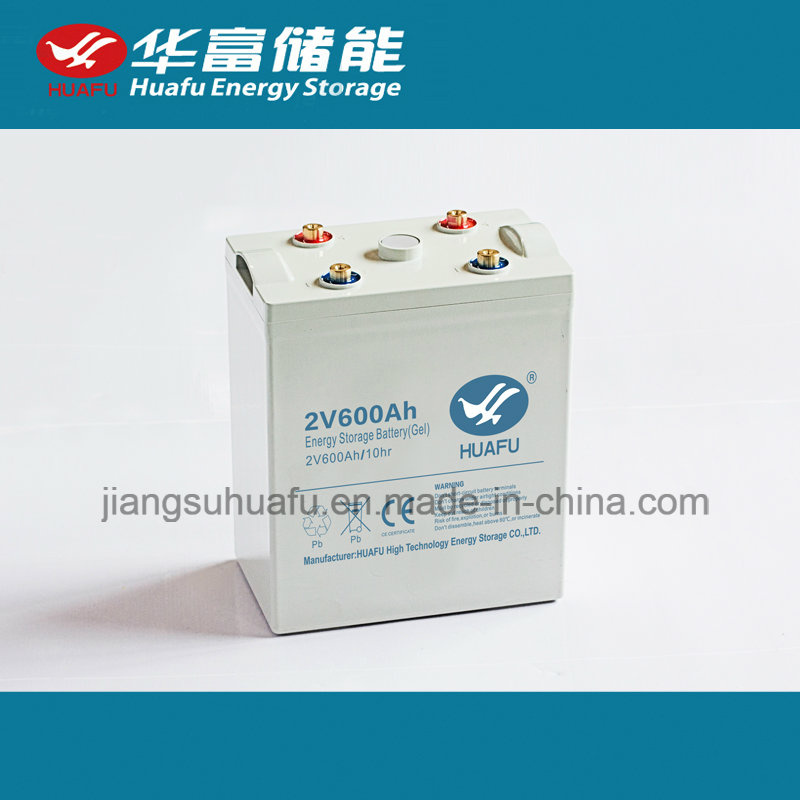

Deep Cycle Gel Battery 2V 600ah for Solar

Prod Model:	CNJ-600
Certification:	Ce UL ISO9001 ISO14001 RoHS IEC
Type:	Lead-Acid Batteries
Usage:	Solar
Nominal Voltage:	2V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Battery Properties: Sealed Battery / Maintenance Free / Rechargeable Battery / Lead Acid Battery
Warranty: 3 Years.  Any battery with quality problem will be changed
Quality system & Certifications: ISO9001,ISO14001,OHSAS18001-2007, CE, UL, IEC, ROHS, SGS


Huafu Lead Acid Battery Construction

Element	Electrolyte	Positive Plate	Negative Plate	Container
Material	Colloidal Silicon	Lead dioxide	lead	ABS
Element	Cover	Safety valve	Terminal/Wire	Separator
Material	ABS	Rubber	Copper	Fiberglass

1).Electrolyte: Be immobilized in the cell through the use of a gelling agent or absorbed in the
    separators and plates. The cells shall have no residual free or bulk liquid electrolyte.
2).Separators: Made of fiberglass. Be porous to electrolyte but electrically insulating.
3).Continer & Cover: Cell containers and covers shall be made of a high impact, flame-retardant plastic
4).Terminal: Terminal posts shall be cast in lead or lead alloy and have a copper core insert.
5).Valve: The valve operate at the pressure limits specified. The valve will not allow ingress of outside air
   into the unit.

Huafu 2V600Ah Rechargeable Battery Specification

Battery Rated Voltage		2V
Rated capacity (10 hour rate)		600Ah
Dimension	Length	285mm (11.23inches)
	Width	171mm (6.748inches)
	Height	330mm (13.00inches)
	Total Height (with terminal)	342mm (13.47inches)
Weight Approx		34.7Kgs (76.34Ibs)
Terminal	M8-20 Copper Terminal

Huafu 2V600AH General Purpose Battery Characteristic

Capacity at 25'C (77'C)	10 hour rate / 1.8V/Cell	600Ah
Charge	Limit initial current to 150A.
	Cycle Applications	2.35V-2.45V
	"Float" or "Stand-By" Service	2.25V-2.38V
Note: Due to the self-discharge characteristics of this type of battery, it is imperative that they be charged within 6 months of storage, otherwise permanent loss of capacity might occur as a result of sulfation.
Operating Temperature Range		-35'C~60'C
Shelf Life (% of nominal capacity at 77°F (25°C))	1 Month	97%
	3 Months	93%
	6 Months	87%
The shelf life shall be a minimum of 6 months at 25°C. The available capacity at the end of this time period shall not be less than 80% of the rated capacity. The cell shall recharge to at least 80% of the rated capacity within 8 hours.

Huafu Sealed Maintenance Free Battery Feature
1). Absorbent Glass Mat (AGM) technology for superior performance
2). Valve regulated, spill proof construction allows safe peration in any position
3). Power/volume ratio yielding unrivaled energy density
4). Rugged impact resistant ABS case and cover (UL94-HB)
5). Integrated ABS carrying handles for ease of movement
6). U.L. CE. IEC. SGS. RoHS. ISO9001. ISO14001. OHSAS18001-2007 recognized
7). Maintenance-free operation - no addition of water to the electrolyte is required.
8). Wide range of operating temperatures with temperature compensated charging.
9). Computer designed lead, calcium tin alloy grid for high power density.
10). Extended service life due to low self-discharge levels.

Huafu 2V600AH Battery Packing information

In carton			packing in wooden Box
Pcs/Ctn		Ctn	Ctns/Box	Box Size
1

Huafu Battery installed in type of horizontal rack
Applicable product series:
Energy storage use battery(CNJ series) ,Specialty battery for plateaus, Lead-carbon battery,
valve-regulated sealed battery(GFM series), Heat-tolerant battery.
Applicable models:
12V series:12V24Ah,12V30Ah,12V40Ah,12V50Ah,12V180Ah,12V200Ah,12V220Ah,12V250Ah;
6V series::6V180 Ah,6V200 Ah;
2V series:2V200 Ah,2V300 Ah,2V400 Ah,2V500Ah,2V600Ah.
Advantages:
Space saving: Because the horizontal installation's wiring is on the side face of the bracket, there is no need to
reserve space like upright installed batteries , which greatly saves the whole installation volume; It is convenient
and economical for end users to operate batteries in the container structure, narrow ,small and limited space.
‚Easy to Install and maintain: It is convenient to install, replace and maintain the battery. When under the
inspection, it is easy to find and deal with the problem directly.
Aesthetic appearance: The overall visual effect is consistent with the aesthetic design of industrialization


Model	Normal Voltage	Normal Capacity	Size Length* Width*Height*Total Height(with terminal)
CN-200	2	200	171*106*330*342
CN-300	2	300	171*151*330*342
CN-400	2	400	196*171*330*342
CN-500	2	500	241*171*330*342
CN-600	2	600	285*171*330*342
CN-800	2	700	383*171*330*342
CN-1000	2	800	471*171*330*342
CN-1200	2	1000	510*175*337*347
CN-1500	2	1200	318*341*341*351
CN-2000	2	1500	433*342*341*351
CN-2500	2	2500	629*346*341*351
CN-3000	2	3000	629*346*341*351
