| Prod Model: |
DCG240-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cycle: |
Long |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

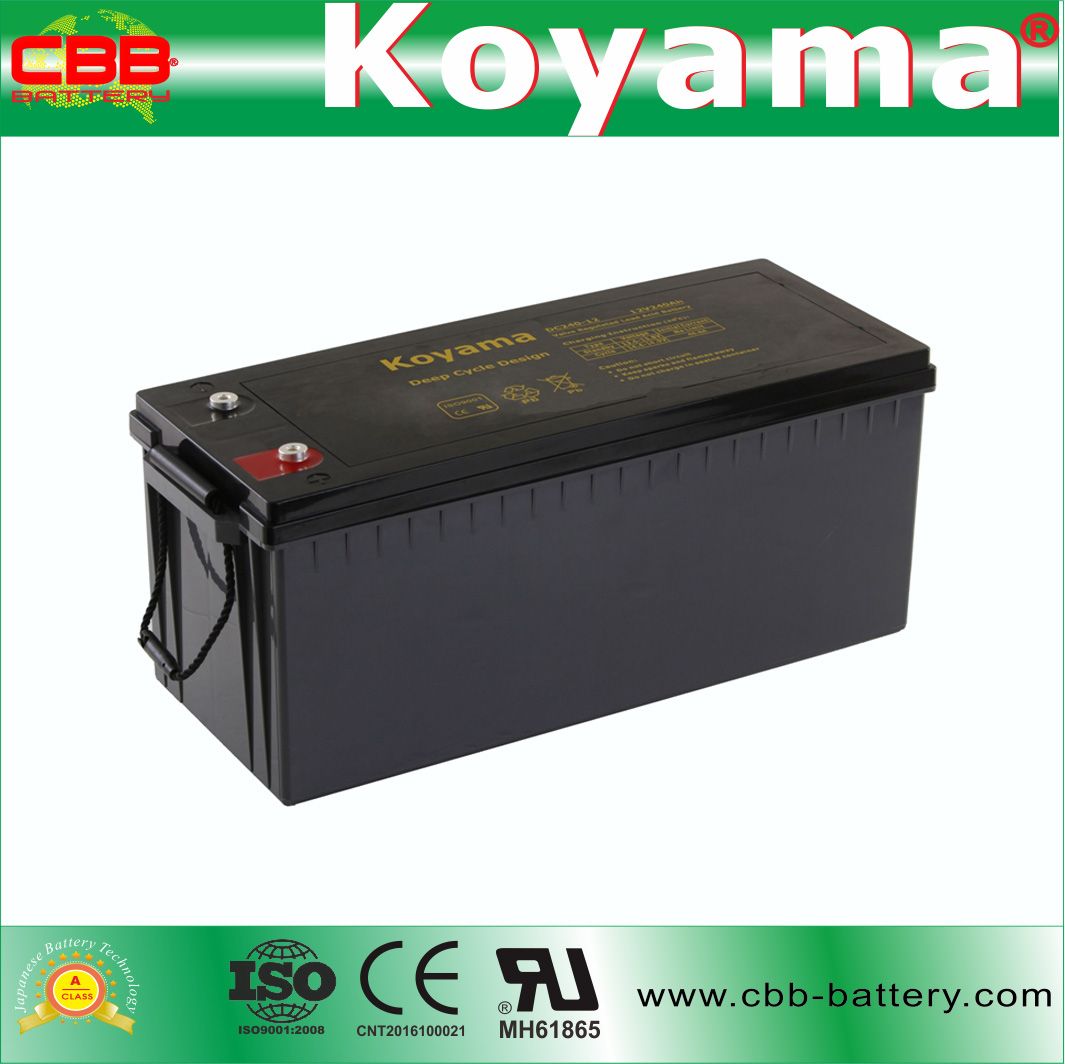

Deep cycle gel battery
DCG SERIES Gel Batteries for Deep Cycle Services
Deep-Cycle Gel(DCG)batteries are maintenance free and require no watering, while providing
With the unmatched quality and power of advanced deep cycle technology. Koyama Battery offers a complete
Portfolio of Deep-Cycle Gel(DCG)products, featuring these benefits: Long-lasting runtime and battery life
In the most demanding of applications; Proprietary Gel formulation prevents stratification;
Superior engineering offers exceptional durability.
Features
The success of NPCG batteries comes from the internationally superior Gel technology
- Excellent energy storage capacity combined with high reliability
- Designed in accordance with IEC 60254-1
700 Cycles at 75%DOD
-10 years design life at 20 ° C ambient temperature (80% remaining capacity from C20)
-Grid plate construction consisting of a lead calcium alloy
-Very low gassing due to the internal gas recombination
-High cycle service life
- Better temperature resistance performance
-Excellent deep cycle performance
-Superior low current discharge performance
-Better charge acceptability
-Better safety performance and reliability
-High Performance price/ratio and low yearly operating cost
-Non-Spillable construction design
- Safety valve installation for explosion proof
-Low self discharge characteristic
-ABS containers and covers (UL94HB, UL94V-0 optional)
-Gel-batteries are designed to be operated within a wide temperature range 40° C and +55° C
-Maintenance-free (no topping up) motive power batteries in gel technology
-Completely recyclable
Applications:
-Aerial Work Platform (AWP)/Access
-Material Handling
-Floor Machine
-Recreational Vehicle (RV)
-Industrial
-Electric Boats
-Golf/Utility/Neighborhood Electric Vehicle (NEV)
-Wheel chairs
-Remote Monitoring & Instrumentation
-Renewable Energy (Solar, Small Wind and Small Hydro)
Certificates: CE/ISO/UL
Specifications:
Voltage& Capacity: 12V240AH
Model No.: DCG240-12
Dimension: L-520*W269*H203*TH209
Terminal: T3
Weight: 71kgs
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg | pound |
| mm | inch | mm | inch | mm | inch | mm | inch |
| DC200-6 | 6 | 200 | 306 | 12.05 | 168 | 6.61 | 220 | 8.66 | 222 | 8.74 | 30.5 | 67.10 | T5 |
| DC210-6 | 6 | 210 | 260 | 10.24 | 180 | 7.09 | 247 | 9.72 | 249 | 9.80 | 30 | 66.00 | T5 |
| DC220-6 | 6 | 220 | 306 | 12.05 | 168 | 6.61 | 220 | 8.66 | 222 | 8.74 | 32.0 | 70.40 | T5 |
| DC225-6 | 6 | 225 | 243 | 9.57 | 187 | 7.36 | 275 | 10.83 | 275 | 10.83 | 31.5 | 69.30 | T5 |
| DC310-6 | 6 | 310 | 295 | 11.61 | 178 | 7.01 | 354 | 13.94 | 360 | 14.17 | 46.0 | 101.20 | T5/T6 |
| DC330-6 | 6 | 310 | 295 | 11.61 | 178 | 7.01 | 354 | 13.94 | 360 | 14.17 | 46.6 | 102.52 | T5/T6 |
| DC380-6 | 6 | 380 | 295 | 11.61 | 178 | 7.01 | 404 | 15.91 | 410 | 16.14 | 55.3 | 121.66 | T5/T6 |
| DC420-6 | 6 | 420 | 295 | 11.61 | 178 | 7.01 | 404 | 15.91 | 410 | 16.14 | 57 | 125.40 | T5/T6 |
| DC200-8 | 8 | 200 | 260 | 10.24 | 182 | 7.17 | 295 | 11.61 | 301 | 11.85 | 39.5 | 86.90 | T5 |
| DC14-12 | 12 | 14 | 152 | 5.98 | 99 | 3.90 | 96 | 3.78 | 102 | 4.02 | 4.1 | 9.02 | F1/F2 |
| DC20-12 | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 6.1 | 13.42 | T1/L1 |
| DC24-12 | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 126 | 4.96 | 126 | 4.96 | 8.5 | 18.70 | T1 |
| DC26-12 | 12 | 26 | 165 | 6.50 | 126 | 4.96 | 174 | 6.85 | 174 | 6.85 | 9.0 | 19.80 | T2 |
| DC35-12 | 12 | 35 | 196 | 7.72 | 130 | 5.12 | 155 | 6.10 | 167 | 6.57 | 10.5 | 23.10 | T3 |
| DC40-12 | 12 | 40 | 198 | 7.80 | 166 | 6.54 | 174 | 6.85 | 174 | 6.85 | 14.5 | 31.90 | T3 |
| DC55-12 | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 212 | 8.35 | 16.8 | 36.96 | T3 |
| DC70-12 | 12 | 70 | 350 | 13.78 | 167 | 6.57 | 178 | 7.01 | 178 | 7.01 | 23.5 | 51.70 | T3 |
| DC75-12 | 12 | 75 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | 25 | 55.00 | T3 |
| DC85-12 | 12 | 85 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | 26.1 | 57.42 | T3 |
| DC90-12 | 12 | 90 | 307 | 12.09 | 169 | 6.65 | 211 | 8.31 | 216 | 8.50 | 28.5 | 62.70 | T3 |
| DC100-12 | 12 | 100 | 307 | 12.09 | 169 | 6.65 | 211 | 8.31 | 216 | 8.50 | 30.5 | 67.10 | T3 |
| DC110-12 | 12 | 110 | 331 | 13.03 | 174 | 6.85 | 214 | 8.43 | 220 | 8.66 | 33.5 | 73.70 | T4 |
| DC120-12 | 12 | 120 | 407 | 16.02 | 173 | 6.81 | 210 | 8.27 | 233 | 9.17 | 39.5 | 86.90 | T5 |
| DC135-12 | 12 | 135 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 289 | 11.38 | 41.5 | 91.30 | T5 |
| DC150-12 | 12 | 150 | 484 | 19.06 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | 46.0 | 101.20 | T4 |
| DC180-12 | 12 | 180 | 532 | 20.94 | 206 | 8.11 | 216 | 8.50 | 222 | 8.74 | 56 | 123.20 | T4 |
| DC200-12 | 12 | 200 | 532 | 20.94 | 206 | 8.11 | 216 | 8.50 | 222 | 8.74 | 58.8 | 129.36 | T4 |
| DC210-12 | 12 | 210 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 225 | 8.86 | 66 | 145.20 | T5 |
| DC240-12 | 12 | 240 | 520 | 20.47 | 269 | 10.59 | 203 | 7.99 | 209 | 8.23 | 71.0 | 156.20 | T5 |
| DC260-12 | 12 | 260 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 226 | 8.90 | 77 | 169.40 | T5 |
