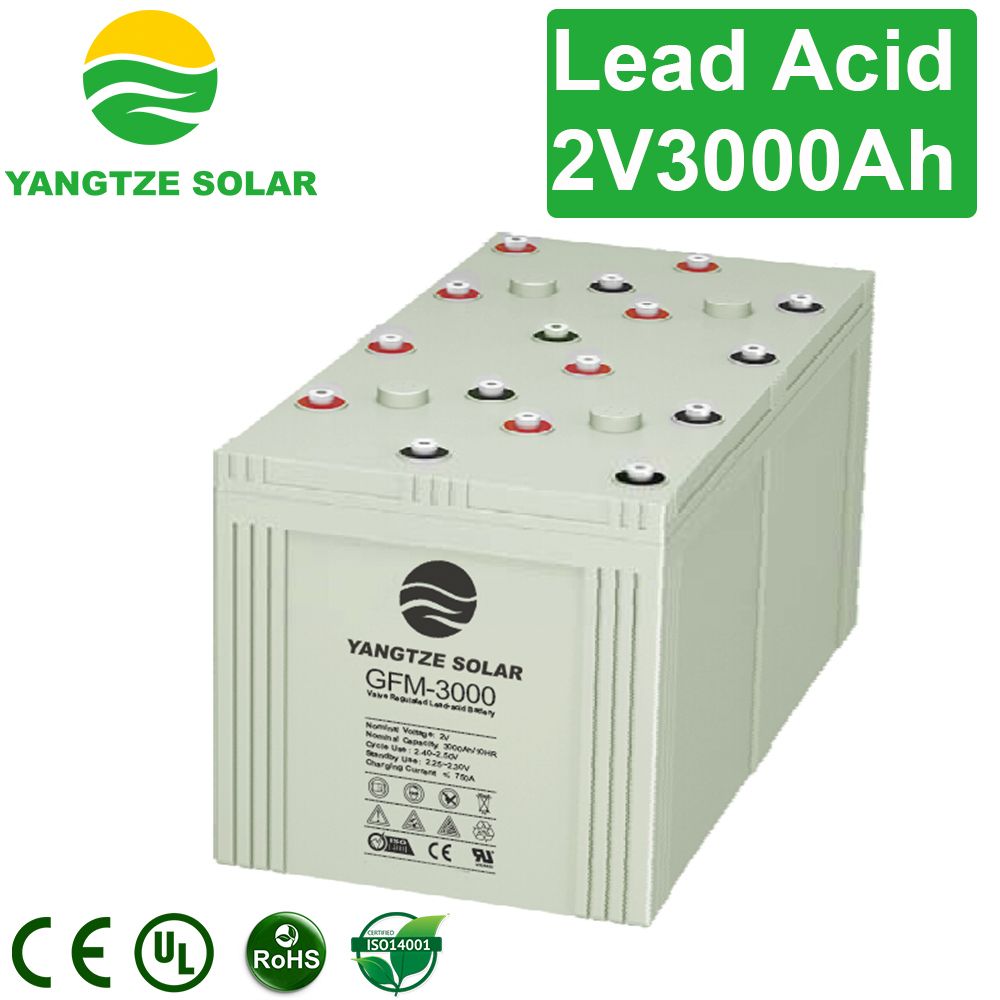

Deep Cycle Gfm Battery 2V 3000ah for Solar System
| Price: |
US $ 560-600/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GFM-3000 |
| Material: |
High Pure Lead |
| Certificate: |
UL/Ce/RoHS/ISO9001/ISO14001/IEC60896/IEC61427 |
| Size: |
710X353X362mm |
| Weight: |
182kg |
| Maintenance: |
Free |
| Color: |
Grey / Black |
| Terminal: |
Copper or Lead Material |
| Warranty: |
3 Years |
| Expected Cycle Life: |
10 Years |
| Sealed: |
Yes |
| Usage: |
Solar System, Telecom |
| Nominal Voltage: |
2V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Type: |
AGM Lead Acid Battery |
Product Description
***** deep cycle gfm battery 2v 3000ah for solar system *****
Key Features :
♦Maintenance-Free ,Absorbent Glass Mat Technology
♦Low Self Discharge
♦Long Designed service Life ,Deep Cycles
♦Excellent Discharge Performance
♦Environment Friendliness
♦Wide suitability of ambient temperature range
Applications :
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power source for portable devices or tools

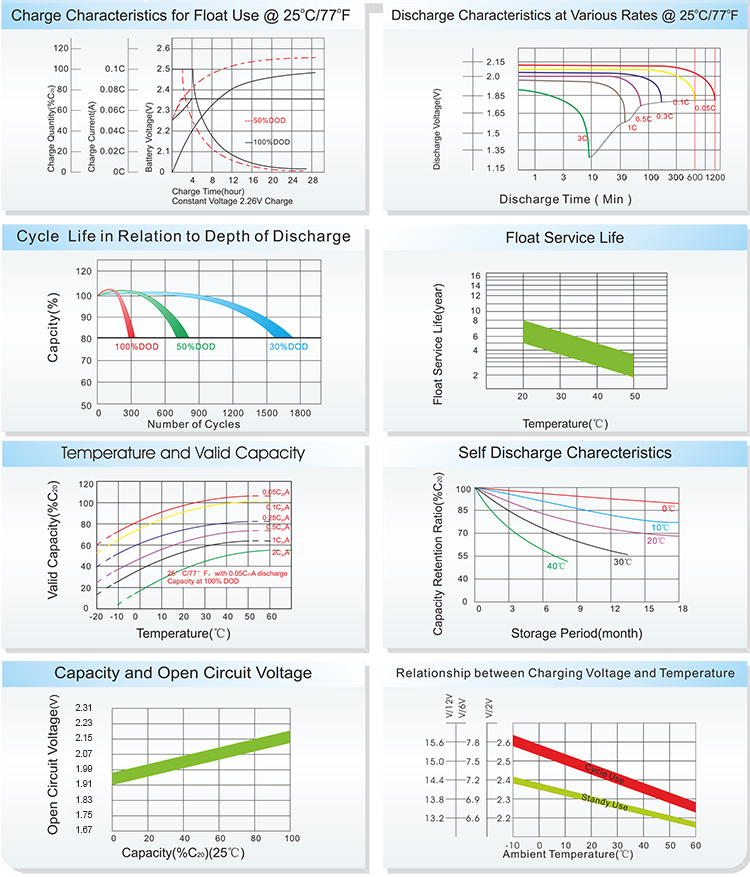

| 1. Functional Parameter | 5. Environment Temperature |
| Nominal Voltage | 2V | Discharge Temperature | -20~50ºC |
| Nominal Capacity (10 hour rate) | 3000Ah | Charge Temperature | -10~50ºC |
| Number of Cells | 2cells | Storage Temperature | -20~60ºC |
| 2. Rated Capacity at 25ºC (77° F) | 6. Inner Resistance & Max . Discharge Current |
| 10 hour rate (0.1C, 1.80V/cell) | 3000Ah | Fully Charged battery at 25ºC (77° F) | 0.15mΩ |
| 3 hour rate (0.25C, 1.75V/cell) | 2214Ah | Max. Discharge Current | 3000A (5s) |
| 1 hour rate (0.55C, 1.60V/cell) | 1524Ah | Short Circuit Current | 8800A |
| 3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 25ºC (77° F) |
| 40ºC (104° F) | 102% | Capacity after 3 month storage | 92% |
| 25ºC (77° F) | 100% | Capacity after 6 month storage | 84% |
| 0ºC (32° F) | 90% | Capacity after 9 month storage | 74% |
| -15ºC (5° F) | 70% | Capacity after 12 month storage | 65% |
| 4. Dimension and Weight | 8. Constant voltage charging at 25ºC (77° F) |
| Length | 710mm | Cyclic use | 2.35~2.4V |
| Width | 353mm | Maximum charging current | 750A |
| Height | 341mm | Temperature compensation | -5mV/ºC |
| Total Height | 362mm | Float use | 2.23~2.27V |
| Reference Weight | 182kg | Temperature compensation | -3.3mV/ºC |
♦ Battery factory Founded in 1996 , 2 million batteries annual production capacity
♦ Products including valve regulated lead acid battery , Gel battery , deep cycle battery, OPzV
and OPzS battery
♦ Products are exported to more than 150 countries
♦ Products are certified by CE , UL ,Rohs
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah
Yangtze Solar, founded in 1994, have supplied more than 1.5GW photovoltaic solar panels and 10 million units of batteries, solar charger controllers and solar inverters. Yangtze Solar is focusing on product development, production, system integration, sales and service. Products include Poly-crystalline PV panel, Mono-crystalline PV panel, Valve Regulated Lead Acid ( VRLA) Battery, Solar Charge Controller, Solar Inverter, Turn-key completed Off Grid and On Grid solar systems. We aim to develop, manufacture, and deliver the most reliable and cost-effective solar energy solutions to every corner in the world...
Our Solar PV module factory covers 90, 000 Square Meters, has more than 750 employees. With an emphasis on management, research and development, Yangtze Solar continuously manufactures leading-edge products. The modules range from 5W~330W and are approved by TUV, UL, CE, IEC61215, IEC61730, CSA, CEC, JET. The production capacity of solar panel has reached 320MW in 2016.

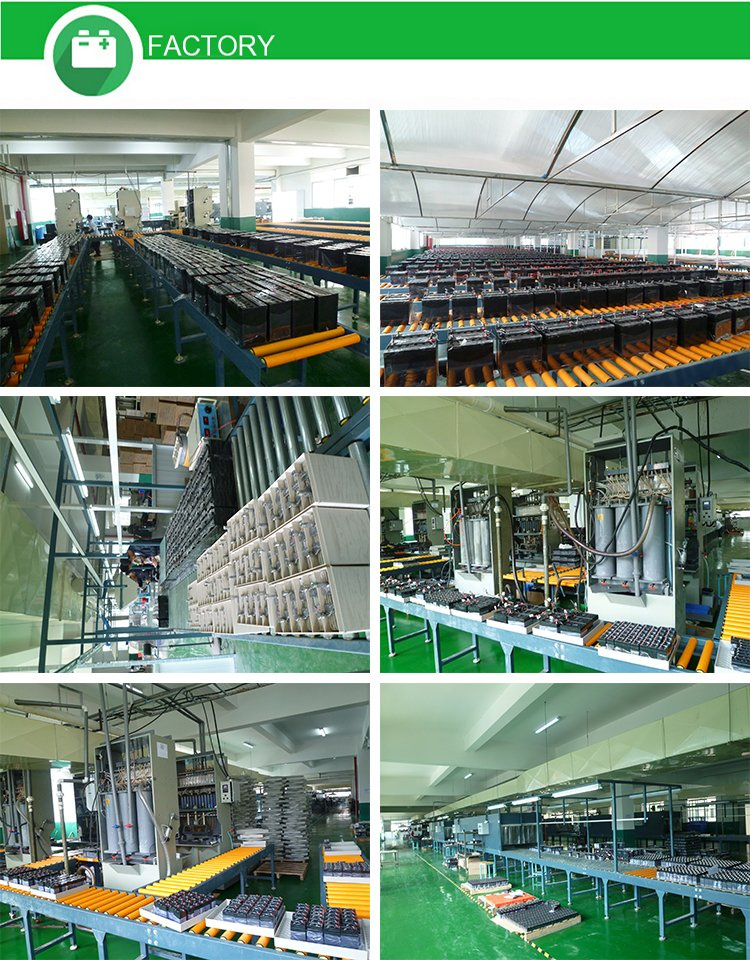

Our Battery factory covers 80, 000 Square Meters, has more than 700 employees. The batteries made by Yangtze Solar include 2V&12V VRLA AGM type, VRLA GEL type, Tubular Plate OPzS and OPzV type which can be applied in Solar Power Plant Storage, Wind Energy Storage, Telecommunications, UPS, Fire Alarm System, Emergency Lighting, etc. The production capacity of battery has reached 1 million units in 2016
The company follows ISO9001 quality system strictly. Up to date, Yangtze Solar has largely realized production line automation with imported advanced equipment and technology from Germany, USA and Japan. We keep strict controls on incoming inspection, production process, finished goods inspection. All products are certified by TUV IEC(Germany), UL(America), JET(Japan), CSA( Canada), CEC( Australia ) and CE. With excellent quality and good reputation, Yangtze Solar Panel and battery have been exported to more 120 different countries in the worldwide, especially to America, Germany, UK, Japan.
Yangtze Solar will continue to innovate and improve its renewable energy product portfolio, to help the world create a cleaner and brighter future.
