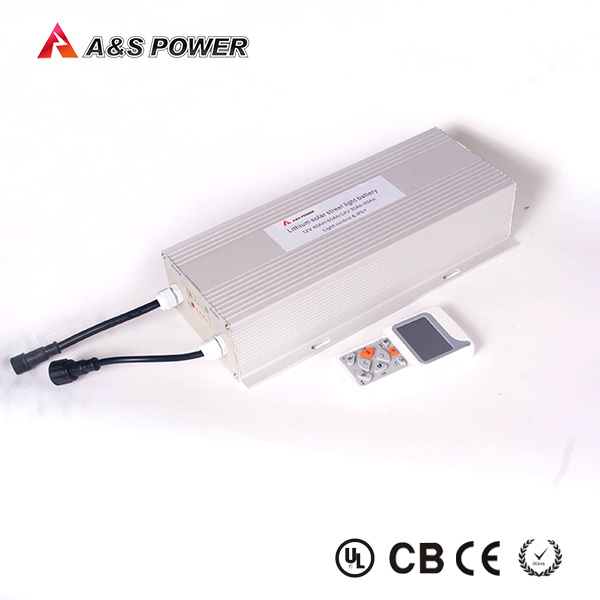

Deep Cycle Li Ion Solar System Battery 12V 45ah

Prod Model:	AS-12V 45Ah
Application:	Solar Panel/Storage/EV
Certifications:	Ce/UL/Un etc
Cycle Life:	>500times
Warranty:	12months
Weight:	3.55kg
Service:	OEM/ODM
Case Material:	Plastic Alloy
Waterproof Grade:	IP67
Type:	Lithium-Ion Batteries
Usage:	Boat
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Electrolyte:	Li-ion

Product Description

Deep Cycle Li ion  Solar System Battery 12V 45Ah

Item Parameter Remark 01 Product Parameter System Voltage 12V Battery Nominal Voltage 11.1V 02 Battery Capacity 45Ah ±3%@23ºC 03 Battery Cell Model 18650Lithium ion Battery Cell 2200mAh@23ºC 04 IP Grade IP67   05 Shell Material PC ABS Less Fire Risk 06 Fire Rating UL 94V-0 07 Internal Antiflaming Without Oxygen Inside 08 Weight 3.54±0.05Kg   09 Dimensions 75×158×236mm Including Terminal 10 Working Temperature -20~60ºC   11 Warranty 3 Years/5 Years Optional 12 Lifespan 5~8 Years   13 Battery Indicator Light 4 LED Lights Each Light Indicate 25% Left 14 State Indicator Light √   15 IR Remote Control √ Within 6M In Front Of Signal Receiver 16 Support Rainy Days 3~21 Days   17 Control Parameter Charging Mode PWM/MPPT   18 Output Mode Time Control+Light Control+Eco Mode Optional 19 Over Charge Voltage 12.6V   20 Over Charge Voltage Return 11.5V   21 Over Discharge Voltage 9.0V   22 Over Discharge Voltage Return 10.5V   23 Thermal Protection 80ºC   24 Energy Efficiency Control Adjustable   25 Light Control Voltage 5~11V Adjustable 26 Light Control Time-Lapse 1~50min Adjustable 27 PV(FYI) Nominal Voltage 18V   28 Power ≤150W   29 LED(FYI) Load Power ≤50W   30 Load Voltage(LED Serials Number) 15~60V(5~18S)   31 Wiring PV Panel Wiring 0.8m/White/Female 1.5mm2  Water Proof 32 LED Lighting Wiring 2.5m/Black/Male / 1.0mm2  Water Proof 33 Adapter 150mm/Black/Female Both Sides With LED Lighting Water Proof Wiring 34 Package Package Dimensions 490×245×195mm   35 Package Gross Weight 21.5±0.50Kg Including 6pcs Products

3. Component Instructions

Item	Name	Specification	Instructions
Standard Accessories	LED Water Proof Wiring	1.0mm2/Male/Black/2.5m	Distinguishable,User friendly,wiring through the light hole inside(Not subject to the locking cap)No need to wiring, in advance the wiring terminal can be soldered in lighting.
	LED Light Connect Adapter	1.0mm2/Female both sides/Black/150mm
	PV Connect Water Proof Wiring	1.5mm2/Female/White/0.8m	Can be soldered easily in PV Panel
	Installation Fix Holder	Refer to Related Instructions	Easy installation;including screws,nuts and other components
Optional	Remote Control	Complete with Controller	Accumulated Order Qty above 100units for one free.

Company Overview
Established :  2001
Capital:    20,000,000.00 RMB
Location:    Dongguan,Shenzhen
Employee:  > 600
Daily output:  100K Li-Poly, 50K LiFePO4,  80K Li-ion 18650
Company Profile



Low Risk Promise
1.For lithium polymer battery, we can provide 5pcs free samples and buyers pay the shipping cost, for the model in our stock, we can send out within 5 days.
2.For order over 2000pcs, Buyer gets a cash coupon of 50 USD for next order
3.For order over 10000pcs, Buyer gets a cash coupon of 100 USD for next order
Our cooperative policy
1. Making the sample until you are satisfied with it.
3. Offering professional one-on-one service and replying your E-mail within three hours
4. Shipment sample for checking before shipment.
5. Priority to get the our latest product information after our cooperation
Advantage
1. Environmental friendly
2. High density of energy
3. Light weight
4. Low self-discharge
5. Low internal resistance
6.Long cycle life, chargeable up to 2000 times
7. No memory effect
8.Doesn't contain Mercury, No fire, No explosion, No leakage
FAQ
1. Q:Where can I get the price?
    A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
    A: After price confirmation, you can require for samples to check our quality.
 3. Q: What about the lead time for mass production?
    A: Honestly, it depends on your order quantity and the season you place the order. We suggested that you start inquiry to months before the date you would like to get the products at your country.
 4. Q: What is your terms of payment?
    A: We accept T/T and L/C.
