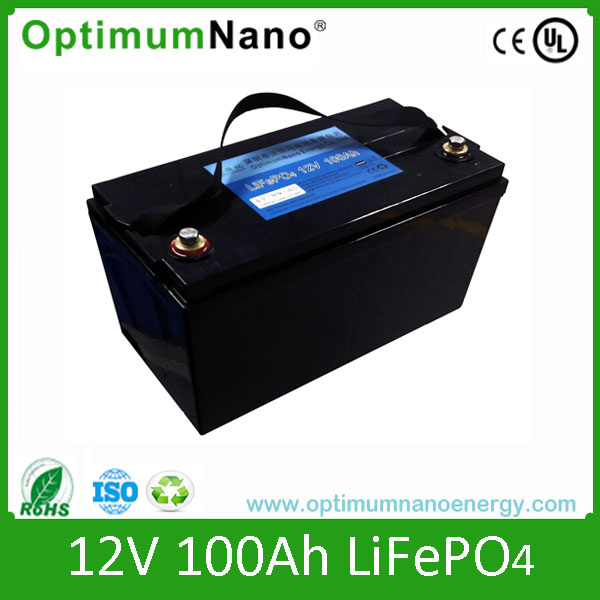

Deep Cycle LiFePO4 12V 100ah Battery for Camper Van

Name: Deep Cycle LiFePO4 12V 100ah Battery for Camper Van
Brand: all-electronics-online.com
SKU: 768730385
Availability: InStock
Rating: 5 (127 reviews)

Price:	US $ 1-1000/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1pks
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-012100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12V
Rated Capacity:	100ah
Cycle Life:	>2000 Times at 1c Rate, 100% Dod
Battery Type:	LiFePO4 Battery
Weight:	1/3weight of SLA
Warranty:	2 Years
Wide Range Temperature Adaptability:	-20~65
Low Self-Discharging Rate:	Less Than 3% Per Month
Export Market:	America, Europe, Aisa, etc
Size:	328171215mm
Type:	Lithium-Ion Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable
Electrolyte:	LiFePO4

Product Description

Deep Cycle LiFePO4 12V 100ah Battery for Camper Van

12V 100Ah LiFePO4 main data:

No	Item	Data
1	Battery Model	1280Wh, 12V 100Ah LiFePO4
2	Cells and connection	32650, 3.2V 5Ah, 4S 20P
3	Battery Voltage	12.8V (Standard Working Voltage)
4	Standard Charge Voltage	About 14.6V
5	Discharge Cut-off Voltage	10V
6	Battery Capacity	100Ah
7	BMS Model	PCM(PCB style BMS)
8	Charge Current	20A (need 5 hours to full charge,can design)
9	Max Continuous Discharge Current	50A (can design)
10	Peak Discharge Current	100A (can design)
11	Whole Battery Size	328171215±2mm Plastic Case Packing
12	Net Weight	About 16kg

Use in electric richshaw vehicle, electric skatingboard, e-bike, e-motorcycle, e-car, solar light, UPS, electric boat, LED
Rated voltage 12.8V
Cut-off voltage 10V
Max charge voltage 14.6V
Max constant discharge rate ≤ 1.5C
Max instant discharge rate ≤ 2C
Max charge rate ≤ 1C, better 0.5C
Cycle 2000 times with 0.2C-1C discharge current
With balance BMS and charger.
1/3 weight of SLA battery
UL, CE, RoHS approved;
Supply ability: 3000pks/day
Package: 1pks/CTN

Standard capacity(0.2C)	100Ah
Mininum Capacity(0.2C)	99Ah
Rated voltage	12V
Max. Charge voltage	14.6V
Cut-off voltage	10.0V
Standard charge and discharge current	0.2C
charging Time	1-5hours
Max discharge current	1.5C

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
