Deep Cycle Lithium Battery 12V10ah with Power Indicator Light

Name: Deep Cycle Lithium Battery 12V10ah with Power Indicator Light
Brand: all-electronics-online.com
SKU: 714885025
Availability: InStock
Rating: 4.8 (32 reviews)

Price:	US $ 1-10000/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-012010
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package:	with PVC Wrapped/ Plastic Case / Steel Case
Brand Name:	Optimumnano
Battery Type:	LiFePO4 Battery
Cycle Life:	>2000 Times at 1c Rate, 100% Dod
Certificate:	SGS,UL,CE,RoHS,IEC-62133,Ts16949 etc.
Warranty:	2 Years
Capacity:	5ah-400ah, or More
Rated Voltage:	12.8V
Operate Temperature:	-20 Degree~+60degree
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Energy Storage
Standard Voltage:	12.8V
Electrolyte:	Lithium Iron Phosphate

Product Description

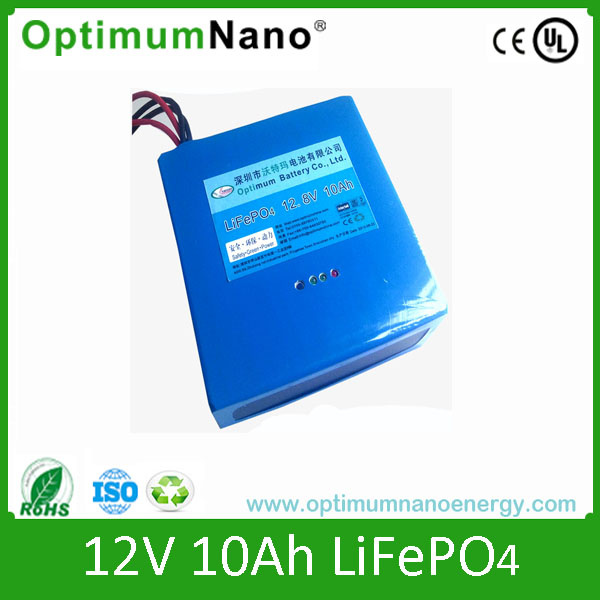

Deep cycle Lithium Battery 12V10Ah with Power indicator light

Product Feature
1. Safety: Safest Li-ion battery, CE UL approved, built-in protection circuit board (BMS), no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 2000 times deep cycle at 1C rate, 6-8 times of lead acid battery
4. No memory effect, highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~65 C
6. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly

Applications
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment

12V 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
Item No.	OPT-12-005	OPT-12-010	OPT-12-020	OPT-12-030	OPT-12-040	OPT-12-050	OPT-12-060
Standard Capacity	5Ah	10Ah	20Ah	30Ah	40Ah	50Ah	60Ah
Rated Voltage	12.8V
Discharge Cut-off Voltage	10.0V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	≤3% after one month
Life Cycles	80% capacity remaining after 2000 times at 1C rate 100%DoD
Max Charger Voltage	DC14.6V
Standard Charge Current	0.2C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
Product Size(mm)	1515193	1358585	18276167	118175175	190165175	190165175	350168179
Approx N.W	0.9Kg	1.3Kg	2.8Kg	4.0Kg	5.5Kg	7.0Kg	8.0Kg
	OPT-12-080	OPT-12-100	OPT-12-150	OPT-12-200	OPT-12-200	OPT-12-300	OPT-12-400
Standard Capacity	80Ah	100Ah	150Ah	200Ah	200Ah	300Ah	400Ah
Product Size(mm)	260170215	330170220	502262242	502262242	360220262	520262242	560360200
Approx N.W	11Kg	16Kg	24Kg	35Kg	38Kg	45Kg	65Kg

Comparison between LiFePO4 battery and Lead-Acid battery:
BatteryIngredients	LiFePO4 Battery		Lead-Acid
Safety & Environmental Concern	Safest; no explosion; no smoke; no fire under very bad working condition; most environmentally friendly; non-toxic; no rare metal, fire resistant, easily disposed of.		safety is acceptable; heavy pollution to water and soil; breaking ecological balance; threatening people' s health especially for Children; hard to dispose of; high re-use cost.
Life Cycle	Best, up to 1000 times under 80% DOD(theoretically 2000 times)		Very short life cycle, about 150 times under 100% DOD; maintenance needed very often.
Long term Cost	Most economical		Cost of whole lifetime is higher than LiFePO4
Thermal Performance	Excellent – Can work normally under -20° C~70° C		The capacity decays quickly if the temperature is higher than 50° C
