Deep Cycle Solar Battery 12V 65ah Solar Battery
| Price: |
US $ 65.3-77.6/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
WHC65AH-12V |
| Size: |
350*166*175mm |
| Capacity: |
65ah |
| Weight: |
16.8kg |
| Terminal: |
T10 |
| Warranty: |
3 Years |
| Maintenance: |
Free |
| Color: |
Yellow & Blue |
| Name: |
Whc Deep Cycle Solar Battery 12V65ah Solar Battery |
| Proof: |
Wateproof&Leakproof |
| Keyword: |
Deep Cycle, Solar Battery, Gel Battery |
| Type: |
Colloid |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Electrolyte: |
Colloform |
Product Description
Deep Cycle Solar Battery 12V 65Ah Solar BatteryDeep Cycle Solar Battery 12V65Ah| Component | Positive
plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw
Material | Lead
dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Sulfuric acid |

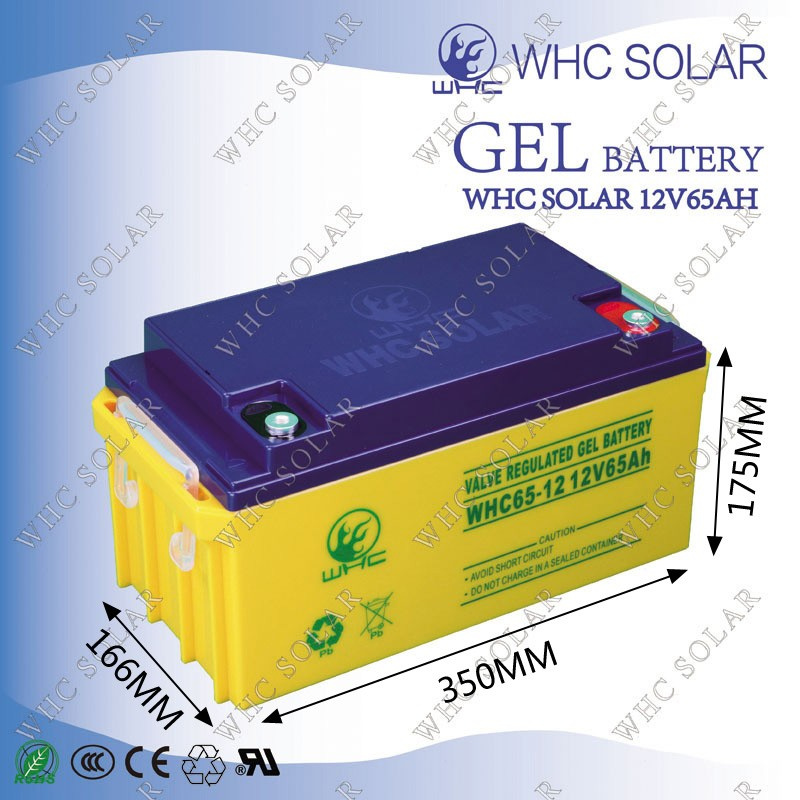

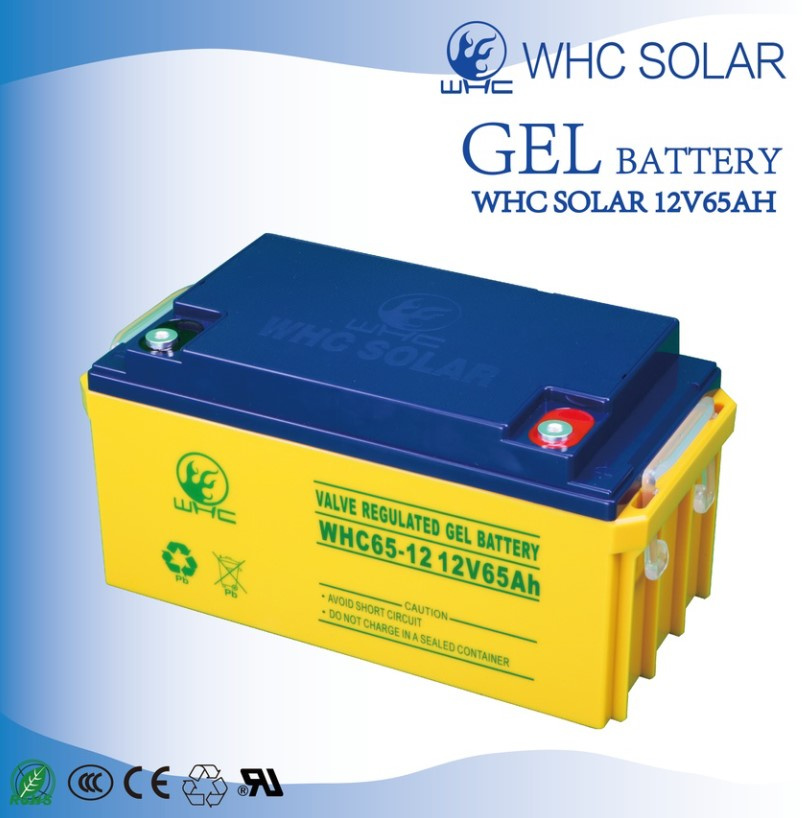

Model: WHC12-65 Solar Gel Battery
Warranty: 3 years Nominal Voltage: 12VNominal Capacity: 65 AHSize: L*W*H*TH= 350*166*175mmWeight: 16.8KGSWarranty: 43yearsDesign life: 89yearsMaintenance free: YES. OEM/ODM Available. Performance characteristic 1) Efficiency greater than 99.9%.
2) Minimal self-discharge.
3) low water loss.
4) design life of 12 years or more, to save expenses.
5) deep discharge cycle performance, life expectancy more than 500 times.
6) over discharge after the restoration of performance.
7) for a wide range of environment: -40 ºC -60 ºC temperature range of use.
Generally Features1.Long battery life, high capacity, Superior of recovery after discharge.
2. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self discharge rate.
4. Silver- coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity.
5. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
6. Maintenance-Free Operation
7. Low Self-Discharge
8.Safety valve installation for explosion proof.
Product Parameters| MODEL | WHC65-12 | WHC100-12 | WHC150-12 | WHC200-12 |
Rated Capacity
(10hour Rate) | 65AH | 100AH | 150AH | 200AH |
| Dimensions | 350*166*175mm | 407*173*210mm | 485*170*242mm | 552*240*220mm |
| Weight | 17KG | 28KG | 39KG | 53KG |
Characteristics
Capacity
25ºC(77ºF) | 10hourrate
(10.0A) | 65AH | 10hourrate
(10.0A) | 100AH | 10hourrate
(10.0A) | 150AH | 10hourrate
(10.0A) | 200AH |
5hour rate
(16.0A) | 55AH | 5hour rate
(16.0A) | 80AH | 5hour rate
(16.0A) | 120AH | 5hour rate
(16.0A) | 160AH |
1hour rate
(60A) | 45AH | 1hour rate
(60A) | 60AH | 1hour rate
(60A) | 90AH | 1hour rate
(60A) | 120AH |
1.5hour discharge
to 10.5V | 35AH | 1.5hour
discharge
to 10.5V | 40AH | 1.5hour
discharge
to 10.5V | 60AH | 1.5hour
discharge
to 10.5V | 80AH |
Charge
(Constant Voltage) | Initial charging current less than 15A Voltage
14.4-14.8V
(14-16 hours) | cycle | Initial charging current less than 15A Voltage
14.4-14.8V
(14-16 hours) | cycle | Initial charging current less than 15A Voltage
14.4-14.8V
(14-16 hours) | cycle | Initial charging current less than 15A Voltage
14.4-14.8V
(14-16 hours) | cycle |
| Float | 13.5-13.8V |
Capacity
affected by
temperature
(10 hourrate)
| 40ºC104ºF | 102% |
| 25ºC77ºF | 100% |
| 0ºC32ºF | 85% |
| -15ºC5ºF | 65% |
Self-Discharge
at 25ºC77ºF | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | T10 | T11 |
1.Solar Powered Systems 5.Uninterruptible Power Supplies
2.Emergency Lighting Systems 6.Telecommunications Systems
3.Control Equipment Portable Cine & Video Lights 7.Alarm Systems
4.Television & Video Recorders 8.Cable Television and so on

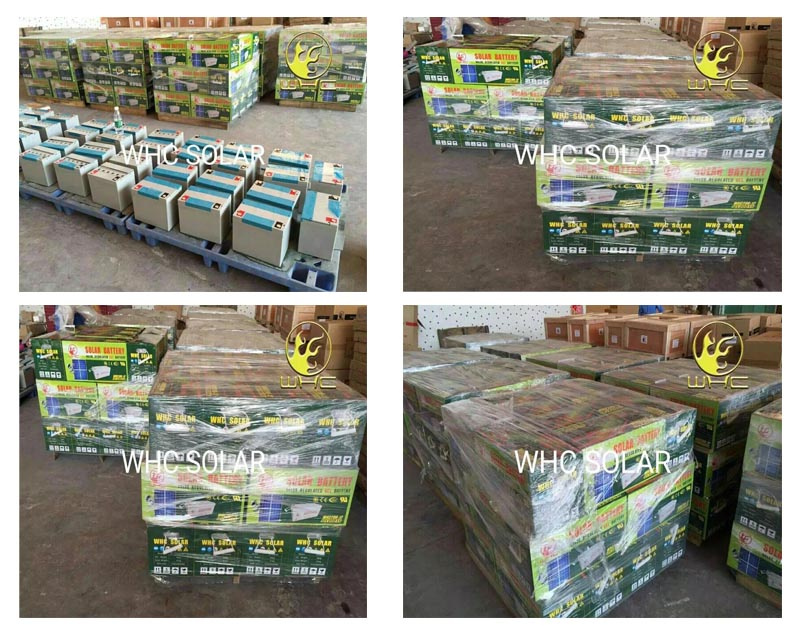

Product Packing

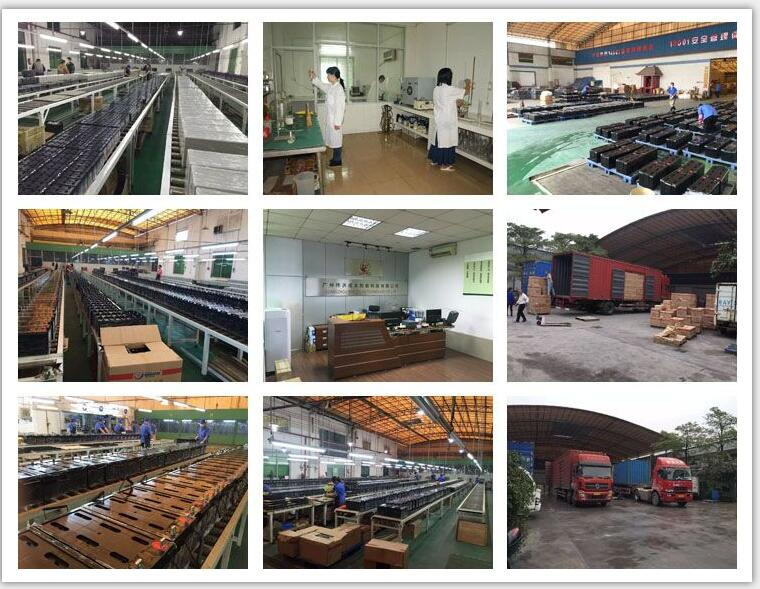

Product Processing
WHC SOLAR is confident that we can provide our clients with the highest quality micro control power inverter. We are looking forward to establishing business relations with you.
Website:www.whcsolar.cc
WHC SOLAR Technology Co., Ltd. is a collection development, production, and sales of photovoltaic tech enterprises, It's the first one in China dedicated solar home systems research and development, production and sales of photovoltaic enterprises, the company since its inception in 2005 established the quality of priority, the concept of brand management, and the use of simple, easy to maintain, reliable quality as a product design, which won a number of national patent and passed CE, RoHS, ISO9001: 2008 quality management system certification. Our main products include: Solar Power Systems, Solar Panels, Solar Controller, Solar Inverter, Solar Battery, Solar Energy kits etc. WHC SOLAR has advanced production testing equipment and strong R & D team, professional QC team and excellent business sales team. The company currently produces the vast majority of products covered by the requirements of customers on the use of solar home systems, and products in the industry with the most comprehensive and professional characteristics. Sold to: Africa, South America, India, Nepal, Cambodia, Bangladesh, Vietnam, the United States, Japan, Korea, and other countries and regions. WHC SOLAR as committed to providing customers: Reliable products, efficient service, as well as more specialized solutions. We can provide OEM & ODM, and product design and packaging services according to customer needs.
