Deep Cycle Solar Battery 12VDC Gel Series

Prod Model:	GEL Series
Type:	Lead-Acid Batteries
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Deep Cycle Solar Battery 12VDC GEL Series

Key features

1. The primary material is gas silicon dioxide from Import.
2. Fully sealed: With cover and pole double seal design to prevent leakage of electrolysis,
   and the reliability of safe-vale prevent oxygen and dust from outside enter into the battery.
3. Free maintenance: With the performance of water reproduce and high sealed reaction efficiency,
   it no needs any compensation of and water during ues.
4. Safety: Without acid leaked, reliable gas pressure venting system and equipped with anti-explosion device,
   which make the battery safer during use.
5. Long cycle life: Anti-erosion pb-ca multi-alloy, ABS plastic materical and high sealed reaction
   efficiency assurethe resden batttery's service life.
6. Temperature adaptability: The battery can be used safely during -25-50degree.
7. Convenient and safety: The battery has charged with load befor leaving the factory, without free electrolysis,
   it allowed to be placed breadthways and transported by sea and railway as nonhazardous material.
8. Economical: With high perforamce, long service life and lowest maintenance cost to offer
   consumers the most economical procucts.

Application:
1. Solar / wind energy system
2. Communication system
3. Broadband
4. UPS
5. Power Tools
6. Cable TV
7. Alarm system
8. Emergency power system
9. Control equipment
10. Photovoltaic
11. Electric Powered Vehicles
12. Marine equipment
13. Vacuum Cleaners
14. Golf Cars and Buggies
15. Electric Wheel Chairs

BATTERY MODEL	Voltage	Capacity	Resistance	Charge Voltage (VDC)		Charge Current	Product Size (MM)				Product weight	Terminal type
	(VDC)	(Ah)	(m∪)	Equalization and Cycle	Float	Maximum Amp	L	W	H	T/H	KG

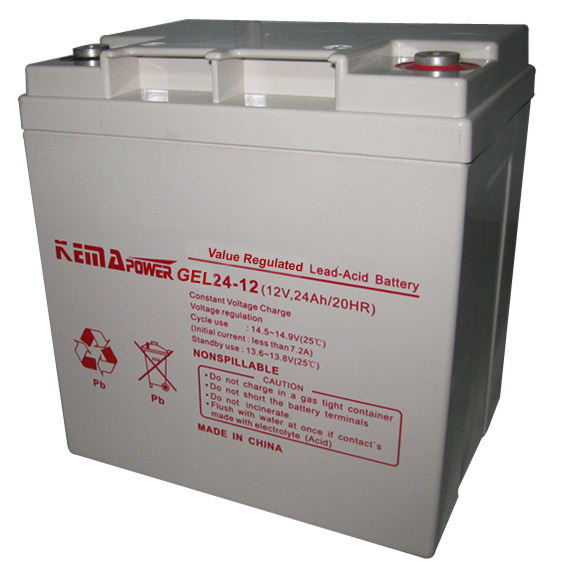

GEL24-12	12	24	≤8.3	14.4-15	13.65	6Amp	166	125	175	182	8.50	L/O
GEL38-12	12	38	≤7.3	14.4-15	13.65	9.5Amp	197	165	170	182	13.80	L/O
GEL65-12	12	65	≤6.1	14.4-15	13.65	16.25Amp	350	167	178	178	21.00	L/O

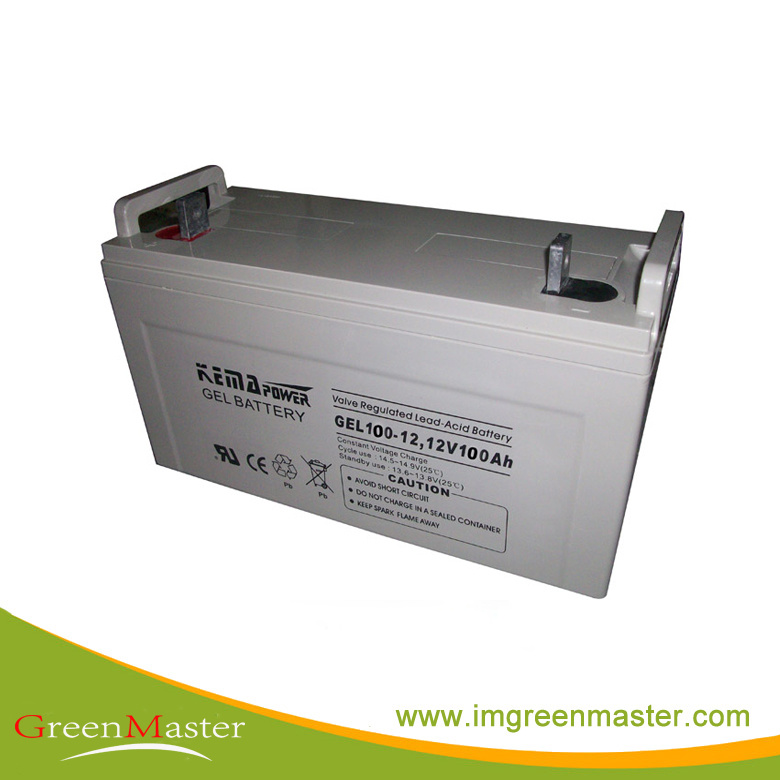

GEL100-12 D	12	100	≤5	14.4-15	13.65	25Amp	330	173	220	240	26.00	L/O
GEL100-12 M	12	100	≤4.4	14.4-15	13.65	25Amp	406	174	238	238	29.00	L/O

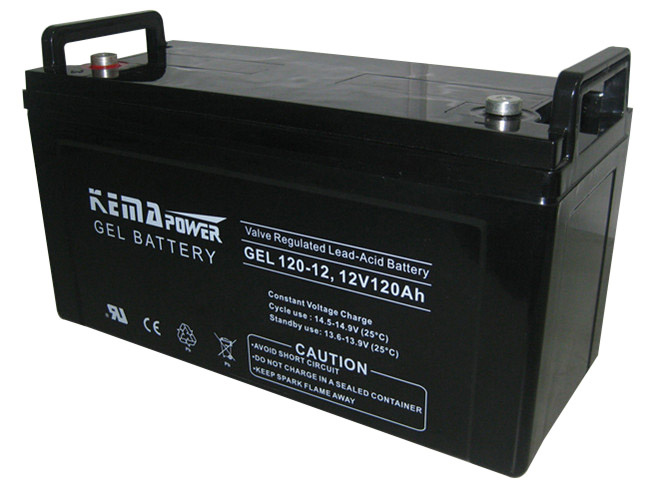

GEL120-12	12	120	≤4	14.4-15	13.65	25Amp	406	174	238	238	36.00	L/O
GEL150-12	12	150	≤3.5	14.4-15	13.65	35Amp	484	171	241	241	45.00	L/O
GEL200-12	12	200	≤3.4	14.4-15	13.65	50Amp	520	240	224	244	63.00	L/O
GEL230-12	12	230	≤1	14.4-15	13.65	55Amp	520	240	224	244	63.00	L/O
Note : 1.10 year Service life,ABS shell. 2.the rate capaticy (10 rate hour)is the average tested by several times at 25ºC 3.the total height of battery includes the terminal. 4."L" terminaldenotes quardrate terminal and postifix "o" terminal denotes cylindrcal terminal. 5.it is to be noted that all these parameters are subject to change without notice.
