| Prod Model: |
Solar Power Battery CS12-150D |
| Size: |
L*W*H*Th=484*171*239*241mm |
| Voltage: |
Solar Power Battery 12V |
| Capacity: |
150ah Deep Cycle Solar Power Battery |
| Weight: |
42.5kg Solar Power SLA Battery |
| Expected Cycle Time: |
10-12years Solar Power Battery |
| Warranty: |
3 Years Solar Power Battery |
| Max. Power: |
Solar Power Battery 12V300ah |
| Delivery Time: |
7 Days |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Solar Power Battery |
Product Description
Deep Cycle Solar Power Battery for Solar System 12V150Ah
Deep Cycle Battery for Solar Power System Characteristics
Model: Solar Power Battery CS12-200D,
Warranty: 3years Solar Power Battery,
Life span: 10-12years Deep Cycle Solar Power Battery,
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen/Hongkong
Lead Time: 5 - 7 days
Payment Terms: T/T, Western Union
Product Certificate: CE, ISO, IEC
Features
· Sealed and maintenance free operation.
· Non-Spillable construction design.
· Safety valve installation for explosion proof.
· High quality and high reliability.
· Exceptional deep discharge recovery performance.
· Low self discharge characteristic.
· Flexibility design for multiple install positions.
· The operating ambient temperature -40 °C to +65 °C.

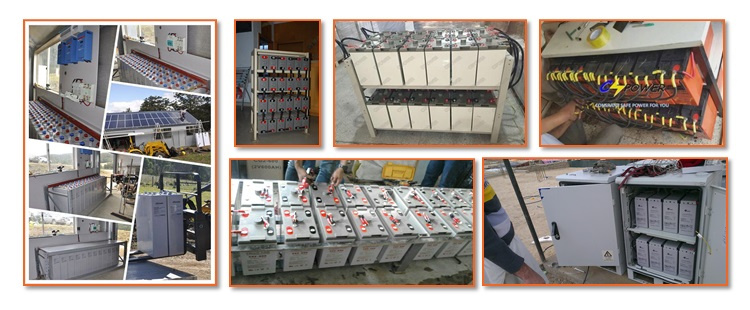

Main Application
UPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.

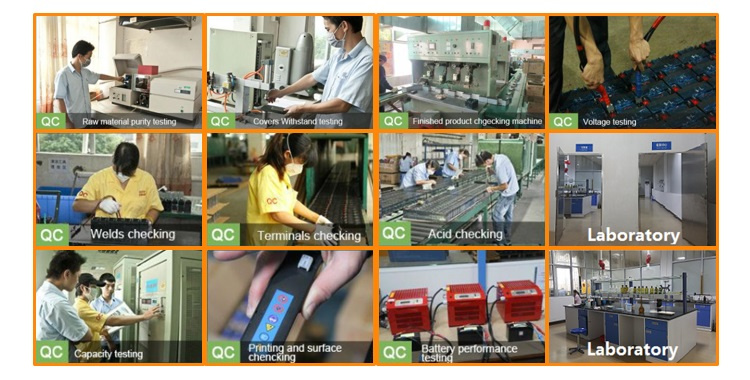

Quality Assurance
- Equipment control
We adopt the entire computer automatic control (Density testing, adding acid, charging, etc.)
-Raw material control
Any raw material will be forbidden used in the production if they didn't pass the testing by laboratory strictly.
-Production process control
The semi-finished products must pass several inspections in the production line.
-Finished products control
Before packaging, the finished battery must be tested 100% by our function testing machine and pass the inner resistance testing, density testing, 3-5ºC discharge performance testing etc.
-Shipment control
The goods can't be sold unless their appearance and performance are tested 100% by the professional inspector.
Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
Welcome to contact us for the battery details.
Attn: Mr.Leo (Sales manager)
Mobile: +86-13798341910
-----------------------------------------------------------------------------
Shenzhen CSPOWER Battery Tech Co.,Ltd.
(GEL/AGM Battery, Inverter, Solar Energy Provider)
Add: Floor 3, Building B, Huafeng technology park, Baoan, Shenzhen, China
Web: www.csagmbattery.com
Tel: 86-755-29123661
Visit our factory viedo: http://cspower.en.made-in-china.com/
Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25ºC | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS12-7D | 12 | 7 | 2.2 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-12D | 12 | 12 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-18D | 12 | 18 | 5.5 | 12.1 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.8 | 12.76 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-22D | 12 | 22 | 6.5 | 14.3 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3/T12 |
| CS12-24D | 12 | 24 | 8.1 | 17.82 | 166 | 6.54 | 126 | 4.96 | 174 | 6.5 | 181 | 7.13 | T32 |
| CS12-28D | 12 | 28 | 8.9 | 19.58 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-33D | 12 | 33 | 10.2 | 22.44 | 196 | 7.7 | 131 | 5.16 | 155 | 6.10 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.4 | 22.88 | 197 | 7.76 | 130 | 5.12 | 163 | 6.42 | 180 | 7.09 | T6/T16 |
| CS12-40D | 12 | 40 | 13.5 | 29.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 14.5 | 31.9 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T5 |
| CS12-55D | 12 | 55 | 16.2 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/16 |
| CS12-65D | 12 | 65 | 20.5 | 45.10 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 229 | 8.46 | T14 |
| CS12-90D | 12 | 90 | 27 | 59.40 | 307 | 12.1 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CS12-100D | 12 | 100 | 31.1 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-120D | 12 | 120 | 36.5 | 80.3 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-134D | 12 | 134 | 41 | 90.20 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 287 | 11.3 | T9/T20 |
| CS12-150D | 12 | 150 | 45 | 99.00 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-180D | 12 | 180 | 56.5 | 124.3 | 522 | 20.6 | 240 | 9.45 | 216 | 8.5 | 240 | 9.45 | T9 |
| CS12-200D | 12 | 200 | 60 | 132 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64 | 140.8 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69 | 151.8 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

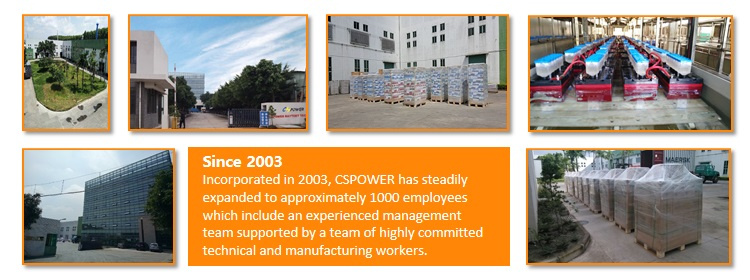

Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
