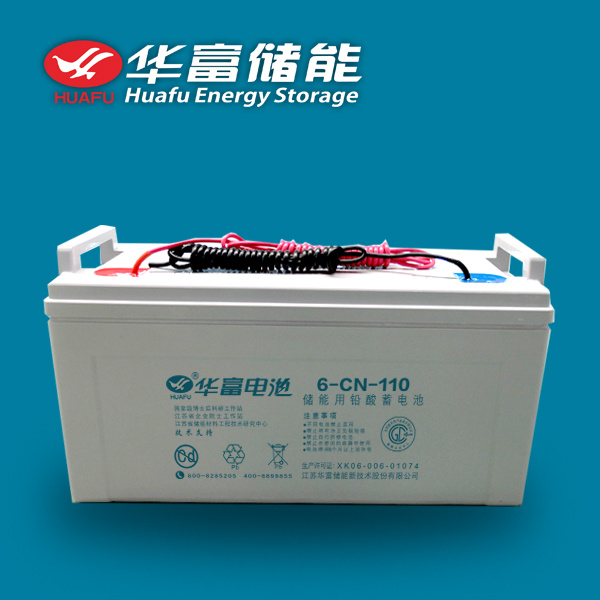

Deep Cycle Solar Use 12V 110ah Lead-Acid Battery

Prod Model:	6-CN-110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	406*174*208mm
Color:	Sliver Grey
Design Life:	8 Years
Terminal:	Lead
Weight:	31.5kg
Type:	Lead-Acid Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Item No: 6-GFM-110
Nominal Voltage: 12V
Nominal Capacity: 110 AH
Net Size: 406*174*208(L*W*H)mm
Total H: 181mm
Weight: 31.5KGS
Warranty: 4 years
Design life: 8 years
Maintenance free: YES
Standard: GB/T 22473-2008 Gel Battery used for energy storage.

Application:
Wind power station
Photovoltaic power station
Communication and telecommunication stations
Traffic field
Garden lamp power

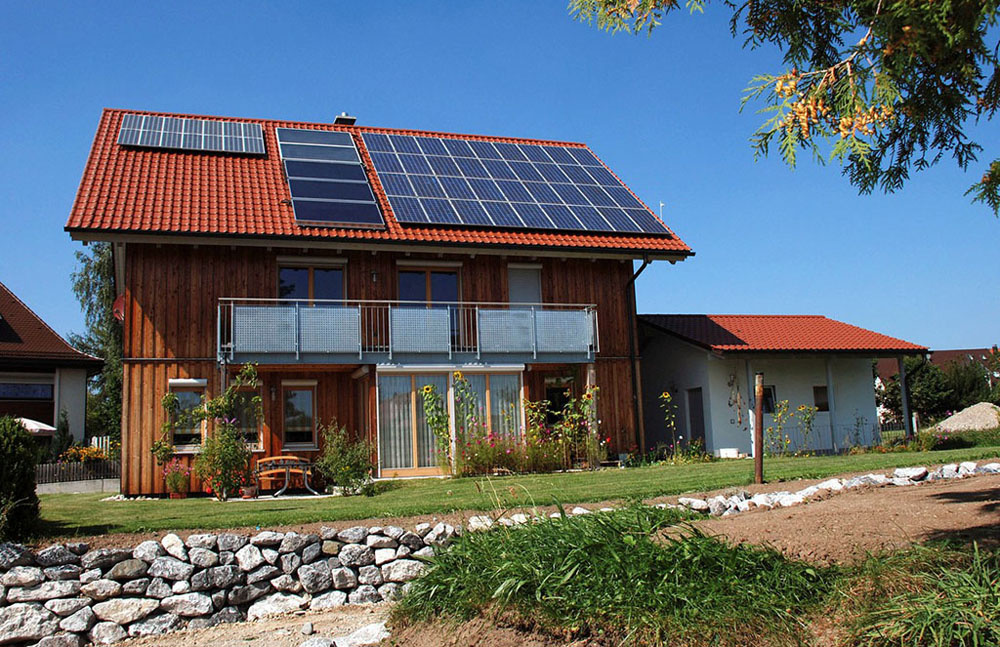

Solar energy building
Other fields

Comprehensive performance:
1. Patents structure: Have "easy connection storage battery" patent structure, can buried underground to installation, to avoid pole corroded.
2. Excellent recovery performance: Use a special patented alloy and lead paste formula, have a strong capacity of recovery performance after deep discharge.
3. Strong charge acceptance: Used import low resistance materials and advanced technology, current become smaller at end of the charge and has a strong charge accept ability.
4. Wide temperature range: -30 degrees Celsius- 45 degrees Celsius
5. Long life: Using gel electrolyte, no acid layer and has long life.
6. Environment friendly: Not include Cadmium metal which is pollution to environment. With no leaking and ensured the battery's environmental protection and safety.

Model	12V 110Ah
Max.Discharge Current	30I10A (3min)
Self-Discharge(25°C)	<3%/month
Warranty	4 years
Designed life	8 years
Using Temperature	Discharge: -45°C~50°C
	Charge: -20°C~45°C
	Storage: -30°C~40°C
Recommended Using Temperature	15°C~30°C
Charge Voltage (25°C)	Float Charge: 13.5V-13.8V
	Average Charge: 14.4V-14.7V
Max.Charge Current	≤0.25C10
Charge Mode(25°C)	Float Charge:13.65±0.15V/Cell
	Temperature Compensation Coefficient :±18 mV/Cell°C
	Cycle Charge:14.7±0.3V/Cell
	Temperature Compensation Coefficient: ±30 mV/Cell°C
Cover Material	ABS Engineering Plastic
Cycle life	105 % @ 40°C
	85 % @ 0°C
	60 % @ -20°C
	100%DOD 572 times
DOD cycle	50%DOD 1485 times
	30%DOD 2406 times

Applications for Deep Cycle Solar Gel Battery
1. Photovoltaic/wind energy system
2.  UPS/EPS
3.  Light electric power supply system
4.  Small power station system
5.  Solar energy system in extremely cold or hot areas

Compliant standards
IEC60896-2-1995
TD/T 799-2010
GB/T 19638.2-2005
GB/T22473-2008
YD/T1360-2005
JISC8704-2:1999
Passed ISO9001.ISO14001, GB/T28001-2001, CE, TLC, CGC certificates

About Packing
OEM service is provided

FAQ

1. What is the definition of "cycle use" and "standby use"?
"Cycle Use" - direct power source:
Cycle Use It can provide the power supply to power tools, and portable electronic products. It can also be used for cycling charging and discharging usage such as electronics motorbike or vacuum cleaner.
"Standby Use" - back up power:
Standby Use is mainly used for emergency power to avoid future damage that may be caused by a sudden power outage.
2. What are the concerns when using OLITER batteries in a parallel or a serial series?
1. Do not mix brands, models and date codes?
2. No separate discharge then charging in a serial configuration.
3. Under parallel usage, pay close attention to the differences in voltage in each circuit.
4. If the difference in voltage in each circuit is too high, do not charge/discharge as parallel.
5. The environment of all circuits must be similar.
3. How can you check a battery's performance?
Different usage applications will use different methods for evaluating a battery's performance. Using a 20 hour rate or the 10 hour rate, you can use 0.05CA or 0.1CA to discharge the battery until the battery reaches a terminal voltage of 10.25 volts. You can then calculate the amp hours to see if the battery fits the specifications or not. For a 5 minutes rate, such as the HC1221W, you can use a 21 watts/cell discharge till the terminal voltage reaches a terminal voltage of 9.6 volts and then measure the discharge time to see if it meets the final specifications or not.
4. How can the conversion be made between "watts (W)" and "amp hours (Ah)"?
W=I x V = 4I (15 minute rate) = 2CV = 2V
(Ex. HC1217W = 17/4 = 4.25Ah)
5. When should a deep-cycle battery be used?
Deep cycle batteries are used when 50% or more of the capacity is used per cycle. The most common use
of deepcycle batteries is in applications that require deep, repetitive drain, like powerful car audio systems,
trolling motors, golf carts, electric wheelchairs, or RV house power sources. Public safety and high-performance vehicles are other applications that call for the special characteristics of deep-cycle batteries.
6. Does the deep-cycle battery have a "memory"?
No. The performance of deep-cycle batteries will be reduced over time, but deep-cycle batteries do not suffer from "memory effect" such as NiCd batteries do.
7. How are batteries rated?
Lead acid batteries are rated based on a capacity given in a defined time. There is not a set industry standard for how to rate a battery.
8. How long can a battery last?
The service design life of a battery varies considerably with how it is used, how it is maintained and charged, temperature, among other factors.
9. Do I need to add water to my battery?
No. Sealed lead acid batteries do not require the use of water.
10. What determines the life of a VRLA battery?
Sealed lead acid battery life is determined by many factors. These include temperature, depth and rate of discharge, and the number of charges and discharges (called cycles)
