| Prod Model: |
CS12-20D ups battery |
| Voltage: |
12V UPS Battery |
| Capacity: |
20ah Solar Battery |
| Size: |
L*W*H=181*77*167mm |
| Weight: |
5.5kg Deep Cycle Battery |
| Warranty: |
1 Year SMF Battery |
| Expected Cycle Time: |
10-12 Years Lead Acid Battery |
| Delivery Time: |
7 Days Storage Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Terminal Type: |
T3 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

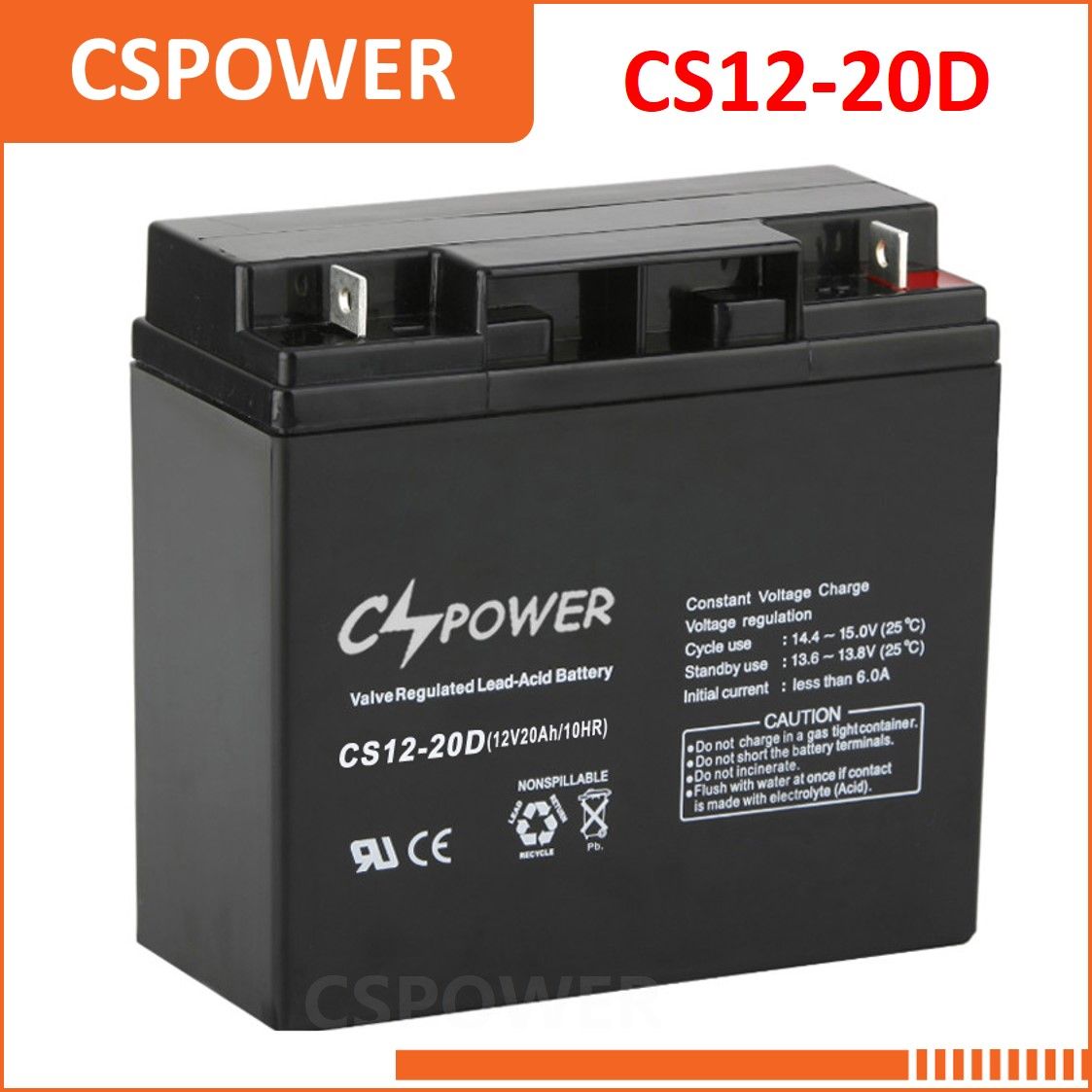

Deep Cycle UPS Battery 12V20AH Battery manufacturer in China
Characteristics
1. Deep Cycle/Solar/ UPS Battery 12V20Ah,50Ah,100ah,150ah,180ah,12V200ah,250ah,300ah
2.AGM batteries, Solar storage battery for ups
3.Water proof, Non Spillable
4.Long service life 15years
5.sealed free maintenance for solar&wind power
FEATURES
1. Sealed and maintenance free operation
2.Non-Spillable construction design.
3.Safety valve installation for explosion proof.
4. High quality and high reliability.
5.Exceptional deep discharge recovery performance.
6.Low self discharge characteristic.
7. Flexibility design for multiple install positions
8.The operating ambient temperature -40 °C to +65 °C

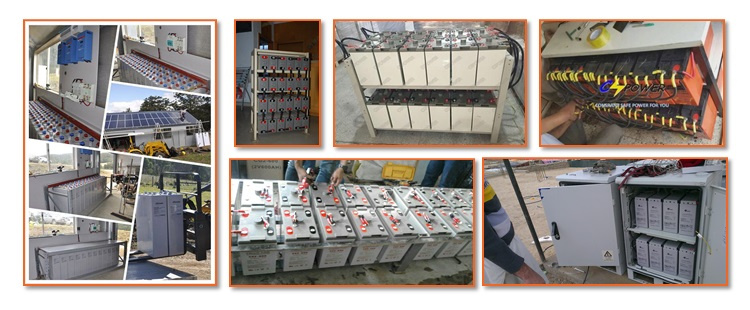

Main Application
1: Telephone switchboard, electric equipments, medical equipments, instruments, and meters
2: Computer, uninterrupted power source (UPS), Inverter
3: Power transmission and transformer station, switch control, and accident lighting
4: Fire fighting, safety device, and alarm monitoring
5: Aviation, spaceflight, and power storage
6: Automatic office system
7: Radio communication system
8: Emergency lighting and car/ship starting system
9: Portable electric appliances and mining system
10: Traffic and navigation signal lamp
11: Solar/Wind/Hybrid power systems
Terms Details
Payment Terms: T/T
Minimum Order: 200 Units
FOB Port: Guangzhou/Shenzhen/Hongkong
Lead Time: 15-20 days
Product Certificate: CE, ISO, IEC, SGS
Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
About CSPOWER:
Our office is in Shenzhen, factories located in Dongguan and Shaoguan China.
We have obtained CE, ISO, IEC certificates and SGS test report for battery.
CSPOWER Battery Tech Co.,Ltd supply our customers reliable products with high quality and competitive price, since we have our own Lead mine & smelter factory & plate factory & SLA battery assembling factory, the purity quotient of our lead is99.998%.
Contact CSPOWER Details:
Web: www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
www.cspowerinverter.com
http://cspower.en.made-in-china.com/
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 20hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS12-1.2D | 12 | 1.2 | 0.55 | 1.21 | 98 | 3.86 | 45 | 1.77 | 52 | 2.05 | 59 | 2.32 | T0 |
| CS12-1.3D | 12 | 1.3 | 0.55 | 1.21 | 98 | 3.86 | 45 | 1.77 | 52 | 2.05 | 59 | 2.32 | T0 |
| CS12-1.9D | 12 | 1.9 | 0.87 | 1.91 | 178 | 7.01 | 35 | 1.38 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-2.9D | 12 | 2.9 | 1.05 | 2.31 | 79 | 3.11 | 56 | 2.20 | 100 | 3.94 | 106 | 4.17 | T0 |
| CS12-2.3D | 12 | 2.3 | 0.90 | 1.98 | 178 | 7.01 | 34 | 1.34 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-3.3D | 12 | 3.3 | 1.24 | 2.73 | 134 | 5.28 | 67 | 2.64 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-3.5D | 12 | 3.5 | 1.28 | 2.82 | 134 | 5.28 | 67 | 2.64 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-4D | 12 | 4 | 1.35 | 2.97 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-4.5D | 12 | 4.5 | 1.53 | 3.37 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-5D | 12 | 5 | 1.70 | 3.74 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-5.5D | 12 | 5.5 | 1.86 | 4.09 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-5D | 12 | 5 | 1.67 | 3.67 | 151 | 5.94 | 51 | 2.01 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-6.5D | 12 | 6.5 | 2.00 | 4.4 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | T1 |
| CS12-7D | 12 | 7 | 2.10 | 4.62 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.2D | 12 | 7.2 | 2.20 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.5D | 12 | 7.5 | 2.30 | 5.06 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-8D | 12 | 8 | 2.35 | 5.17 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-9D | 12 | 9 | 2.50 | 5.50 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-10D | 12 | 10 | 3.10 | 6.82 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-10D | 12 | 10 | 2.95 | 6.49 | 151 | 5.94 | 65 | 2.56 | 111 | 4.37 | 116 | 4.57 | T2 |
| CS12-12D | 12 | 12 | 3.35 | 7.37 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-14D | 12 | 14 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-15D | 12 | 15 | 4.80 | 10.56 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-17D | 12 | 17 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-18D | 12 | 18 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.50 | 12.10 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-24D | 12 | 24 | 7.60 | 16.72 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-24D | 12 | 24 | 7.80 | 17.16 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T32 |
| CS12-26D | 12 | 26 | 8.10 | 17.82 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 8.60 | 18.92 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 9.00 | 19.80 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T4 |
| CS12-33D | 12 | 33 | 10.00 | 22.00 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.20 | 22.44 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-38D | 12 | 38 | 12.20 | 26.84 | 197 | 7.76 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-40D | 12 | 40 | 13.0 | 28.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 13.50 | 29.70 | 197 | 7.76 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | T12 |
| CS12-50D | 12 | 50 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 224 | 8.82 | T12 |
| CS12-55D | 12 | 55 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 229 | 9.02 | T9/T16 |
| CS12-60D | 12 | 60 | 19.40 | 42.68 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T7 |
| CS12-65D | 12 | 65 | 20.50 | 45.10 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 22.00 | 48.40 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-80D | 12 | 80 | 23.40 | 51.48 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 22.50 | 49.50 | 350 | 13.78 | 169 | 6.65 | 179 | 7.05 | 179 | 7.05 | T14 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 307 | 12.09 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T8 |
| CS12-100D | 12 | 100 | 29.80 | 65.56 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-100P | 12 | 100 | 30.00 | 66.00 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-110D | 12 | 110 | 31.10 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-110P | 12 | 110 | 33.40 | 73.48 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-120D | 12 | 120 | 36.50 | 80.30 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-150D | 12 | 150 | 42.50 | 93.50 | 484 | 19.06 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-160D | 12 | 160 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T18 |
| CS12-165D | 12 | 165 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T11 |
| CS12-180D | 12 | 180 | 56.50 | 124.30 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-200D | 12 | 200 | 60.00 | 132.00 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64.00 | 140.80 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69.50 | 152.90 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T9 |
| CS12-250P | 12 | 250 | 68.00 | 149.60 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-300D | 12 | 300 | 73.00 | 160.60 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
Operation and maintenance manual
For maintenance free battery, it's free maintenance in the operation. But we can only use it in proper operation to keep the long lifetime of the battery,
(1) Battery Installation
Batteries should be installed possibly in a clean, cool, ventilated and dry place. The battery should be placed upright. Each terminal between the batteries is connected firmly.
(2) The ambient temperature
Ambient temperature is important factor for the battery operation. When the ambient temperature is too high, Battery plate corrosion will be increased, while absorbing more moisture; When the ambient temperature is too low, the battery will not be full charged. All this will affect the battery life. Therefore we suggest the working ambient temperature is around 25 º C.
(3) The charge and discharge current
Battery charge and discharge current usually uses the concept C, the actual value of C is related to the capacity of the battery. For example, a 100AH battery: 1C = 100A. Charging current is around 0.1C; The charging current must not be bigger than 0.3C. Discharge current general requirements in 0.05 ~ 3C range.
(4) Charging voltage
After the battery is full converted to float charging, the float voltage is around 13.0V. If the charging voltage is too high will cause the battery overcharge, otherwise the battery will not be full charged. Charging voltage is abnormal, it may be caused by the battery configuration error, or it may be caused by controller failure. Do not choose the controller with bad quality.
(5) The depth of discharge
Depth of discharge of the battery life is also a important factor for lifetime of battery, the deeper the battery discharge, the fewer the number of cycles, so battery should avoided from deep discharge.
(6) Regular maintenance
Battery should be regular checked in every period time after used, such as check its outlook, measuring the average voltage of each battery, etc.
UPS Battery
12V Battery
Rechargeable Battery
Sealed Lead Acid Battery
VRLA Battery
Storage Battery
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

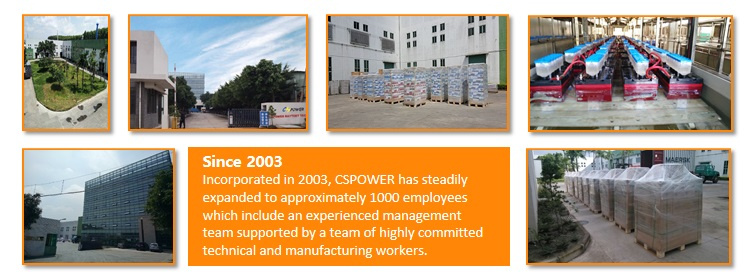

Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.

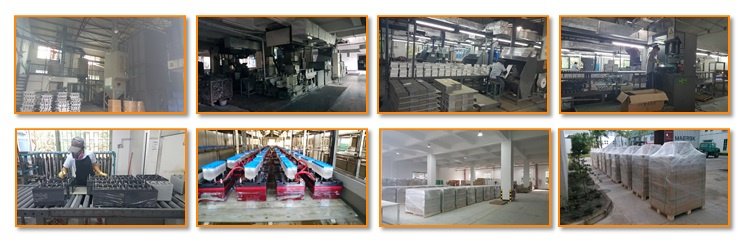

Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
