Definite Purpose Contactors 2 Pole 30A Three Phase Contactors

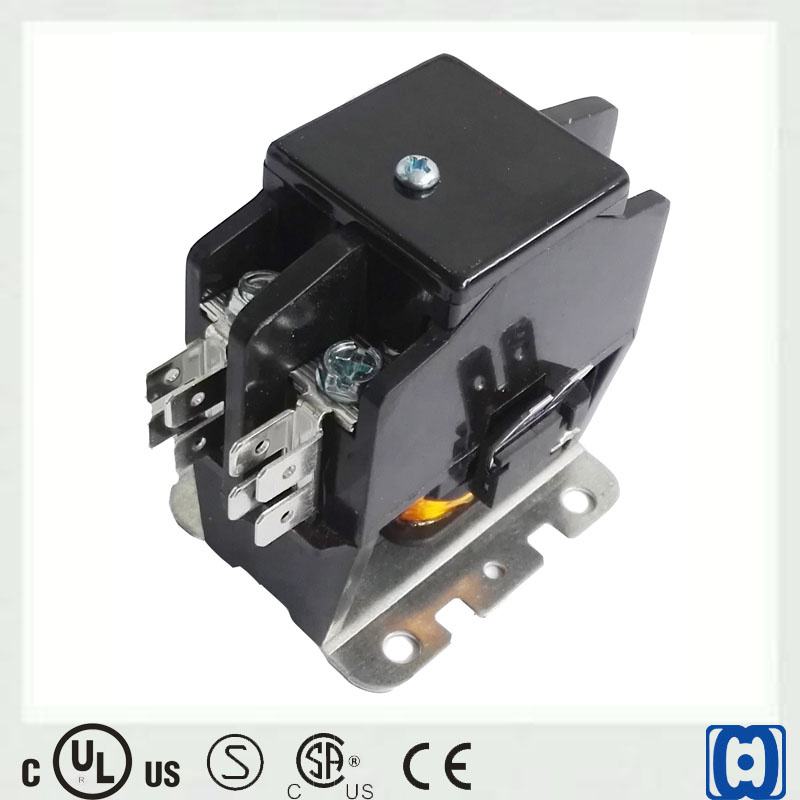

Name: Definite Purpose Contactors 2 Pole 30A Three Phase Contactors
Brand: all-electronics-online.com
SKU: 818501765
Availability: InStock
Rating: 4.3 (88 reviews)

Price:	US $ 2.7-3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HCDPY212030
Color:	Black
Certificate:	UL, CSA, CCC, Ce, S
Material:	High Arc-Resistant Phenolic Resin
Application:	Refrigeration, Air Conditioning and Heating
Temparature:	-40°c-65°c

Product Description

Definite Purpose AC Contactor 2 pole 90FLA

Specifications:

FLA	120V	240V		480V		600V		Non Inductive Amps	Poles
	Hp	LRA	Hp	LRA	Hp	LRA	Hp
75	-	450	-	375	-	300	-	93	2
			25		40		40		3
90	-	540	-	450	-	360	-	120	2
			30		60		60		3
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits.
Applications:Commonly used for Refrigeration, Air Conditioning and Heating. Also fits for Food service equipment, Vending machines, Compressors,Pumps, Cranes, Hoists,Welding machines,Power supplies,Lighting etc.

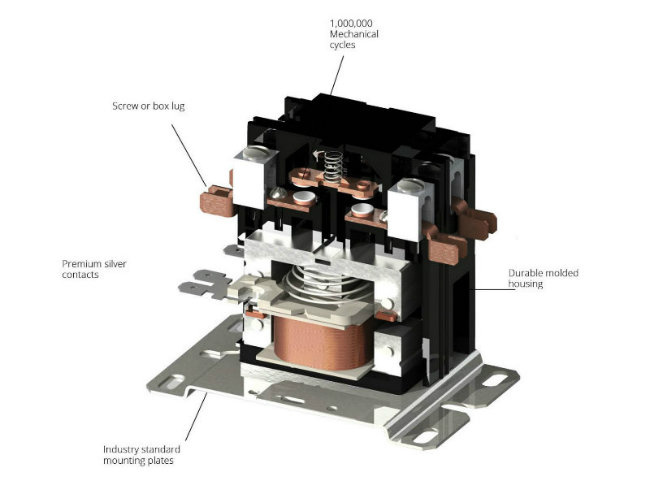

Features:

Compact size
Durable Metal Back Plate
Weld-resistant silver cadmium oxide contacts
Reinforced thermoset polyester housing
Quiet Operation thanks to cushioned coil and precision fit assembly
Available electrical/mechanical interlocks
Power terminations options:
Lugs(standard)
SEMS clamp
Binding head screws
Quick connects
Replacement coils and contact kits is available
Meets:
ARI-780
UL FILE E246810
CSA FILE 256361

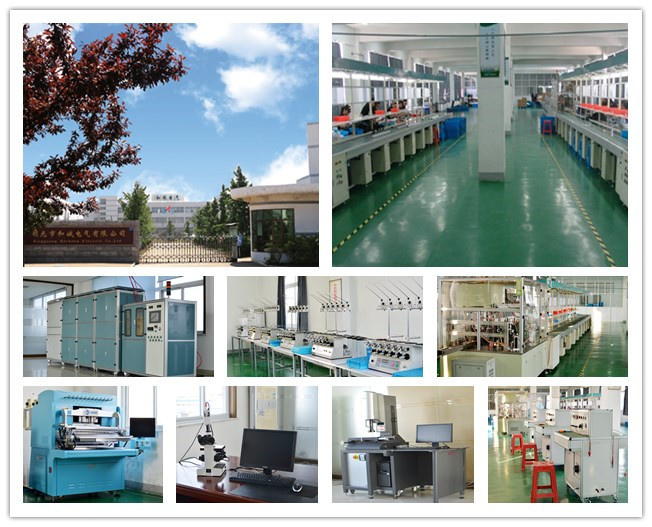

Workshop:
