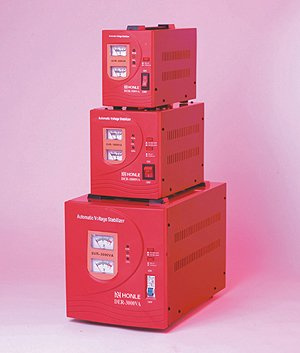

Der Full Automatic Voltage Regulator

Name: Der Full Automatic Voltage Regulator
Brand: all-electronics-online.com
SKU: 809777445
Availability: InStock
Rating: 5 (20 reviews)

Price:	US $ 8.9/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DER
Delivery Detail:	10~15days After Received Deposit
Current Type:	AC
Phase:	Three Phase
Usage:	SVC
Frequency:	50Hz/60Hz
Brand:	Honle

Product Description

Feature:
1. relay control stabilizer
2. wide input voltage range
3. light in weight
4. delay output
5. little wave distortion

Technical Features:
1. Input voltage:150-270V
2. Output voltage:220V±8% 110V±10%
3. Delay output time:3-7min/3-7sec
4. Frequency:50HZ/60HZ

Model	Requirements	Model 1	Model 2	Model 3	Model 4	Model 5	Model 6
Power(VA)		DER-500VA	DER-1000VA	DER-1500VA	DER-2000VA	DER-3000VA	DER-5000VA
Input	Phase	Single phase
	Voltage	AC150V-270V
	Frequency	50HZ/60HZ
Output	Phase	220V±8% 110V±10%
	Voltage	98%
	Frequency	50HZ/60HZ
	Over voltage protection	AC 246V±4V
Protection	Under-volt	Optional
	Over-volt	Optional
	Over heat	Optional
	By pass	No
	Delay	3-7min/3-7sec(optional)
	Over load/short circuit	yes
Environment	Operating temperature	-10~40°C
	Storage temperature	-15~45°C
	humidity	20% to 90%
Packaging	Pcs per carton	8	4	4	4	1	1
	Machine size(cm)	23.5×11.2×16.5	24.5×15×18	24.5×15×18	24.5×15×18	35×22×25.5	35×22×25.5
	Package dimensions(cm)	49×27.5×36	30.5×32×39.5	30.5×32×39.5	30.5×32×39.5	39.5×25×29	39.5×25×29

Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.

Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.

The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
