Design Expulsion Fuse (PRW-15)
| Price: |
US $ 11/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
PRW-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: |
High |
| Usaga: |
High Voltage |
| Type: |
Distribution |
| Fusing Speed: |
T K |
| Fusing Device: |
Fuse Link |
| Standard: |
IEC IEEE |
Product Description
DESIGN EXPULSION FUSEGEAR The complete assemblies shall be rated 105°C for normal circuit conditions. Further they shall meet the following electrical test requirements.A. Performance Characteristics
1. Voltage
a. BIL: 170kV, 1.2 x 50 microsecond wave.
b. AC Withstand: 70kV, 50Hz, 1 minute; dry and wet.
2. Current
a. Continuous Operation: 100A minimum
b. Rated interrupting current of Expulsion fusegear:
Prospective RMS symmetrical amperes: 4000A, i.e. 6 tests of test Series No. 1 from total series of 16 tests per Table IVA IEC 602822 at 4,000 amperes RMS symmetrical.
3. Low Current Interruption
The Expulsion fusegear shall meet the requirements of IEC 602822 Clause 13, and shall be tested to interrupt down to 15 amperes applied to a 6K fuse link.
4. Fuse Link Range and Class
The Expulsion fusegear shall be suitable in all respects for fuse links within the range 1 to 100 amps per IEC and NEMA standards.
B. Interchangeability
The fuse holder (tube) of a fuse isolator shall be dimensionally compatible with a universal fuse link of corresponding rating and with a universal fuse tube.(e.g. fuse links manufactured by Hubbell Power Systems and S&C Electric Company of North America)
C. Insulators
The insulators shall be of solid glazed porcelain type and be birdproof. They shall meet the electrical and mechanical characteristics as shown in IEC Standard Publication 60383. Insulators shall be based on rated voltage of 33kV.
1. The support insulators must withstand dry and wet test voltages at 50Hz, sustained for one minute of not less than:
a. 70kV to earth and between poles and
b. 80kV across the isolating distances, re IEC 600602, Section 3
The Supplier shall also give the following information in the schedule.
c. The minimum dry flashover voltage value
d. The minimum wet flashover voltage value
e. The puncture voltage at 50Hz.
2. Radio Interference Voltage
The maximum radio interference voltage shall be 250 microvolts measured in accordance with IEC 60437.
D. Clearance
The Supplier shall give the following information in the schedule:
1. Minimum phase/phase clearance
2. Minimum phase/earth clearance.
E. Creepage Distance
Minimum leakage distance to ground shall be 900mm.
F. Construction
1. Main assembly
a. The main assembly may be mounted on a 2 insulator channel base arrangement. The insulators shall be porcelain and bird proof.

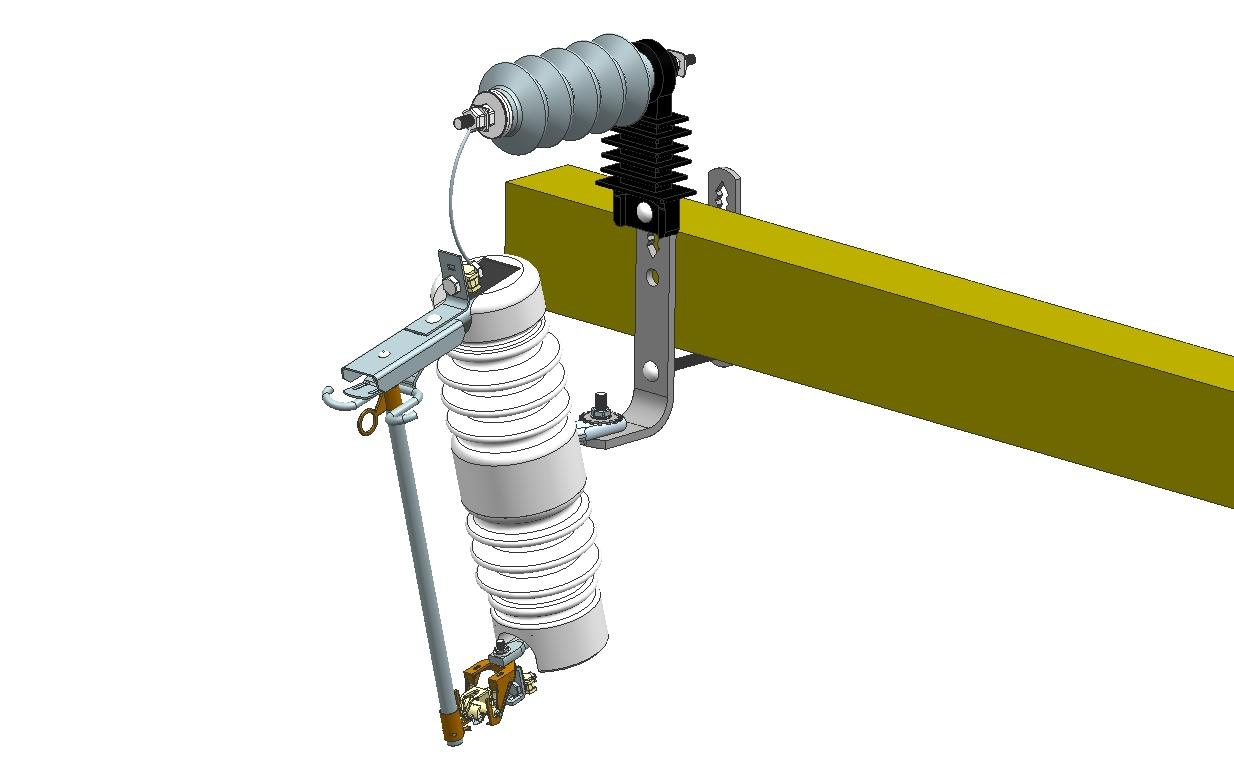

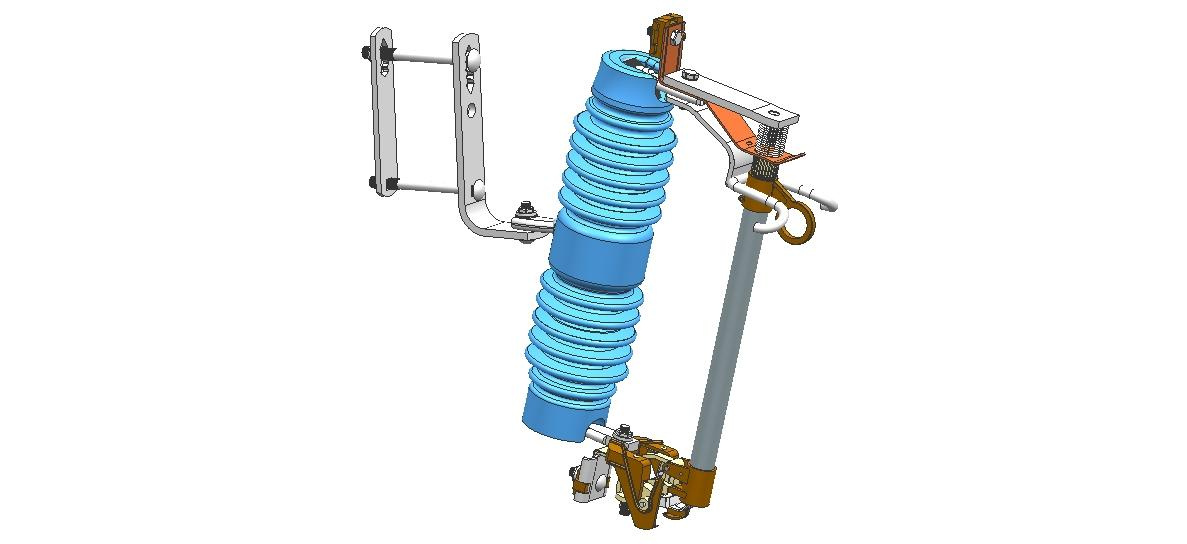

Top and bottom contact subassemblies and mounting fitting shall be potted into the porcelain insulators. The upper fixed contacts shall positively latch. (See Figures 1 and 2).
b. All contacts shall be designed to give permanent current carrying capacity at rated current after exposure to marine climate for up to 20 years. All current carrying components shall be of copper or copper alloy. Terminals shall be suitable for conductor up to 265mm2 Al/Cu.
c. Contacts shall be heavily silver clad on each side of each interface. Embossed surfaces with wiping action are preferred. d. Ferrous components shall be stainless steel or galvanised. The Supplier shall state weight/thickness of zinc coating on the attached Schedule. e. The Expulsion Fusegear shall be provided with a permanently fitted loadbreak device. f. The assembly shall be designed such that the fuse tube can be closed without using undue care even when the closing force is applied from an angle. g. The angle of fuse tube relative to the vertical shall be filled in on the attached schedule. h. The insulator shall preferably be marked with the rated voltage and the minimum basic insulation level IEEE/NEMA brackets shall be provided. 2. Fuse Tube Assembly a. The fuse tube shall be capable of accepting IEC/NEMA fuse links up to a maximum continuous current rating of 100 amperes. b. The toggle mechanism shall provide locking action to protect the fuse link from shock. A spring assisted flipper shall assist arc interruption by withdrawal of the fuse tail. c. The fuse tube cap may be the expendable type. d. A lifting eye shall be provided on the fuse tube and designed for use with hookstick. e. The fuse tube shall be permanently marked with the following: Supplier/Manufacturer; model; maximum continuous current rating; rated maximum voltage phase to phase; rated symmetrical amperes interrupting per IEC requirements. G. Operating Gear For Single Pole Units operation will be by means of the Purchaser's standard operating hot-stick, and loadbreak tool to ensure existing practice can continue.
Our company is one of factory Of OEIpower, Local in No. 15, Tongbai, Industrial Zone, Nanyang City, Hean Province, China, OEIpower to provide complete solutions for the Energy sector, mainly power generation, transmission and distribution markets. OEIpower is able to lead turn-key projects and also cooperate in specific parts of engineering projects. Regarding products, OEIpower is creating a solid sales and distribution network in order to manage the main components involved in the energy sector and markets.
It is a professional Manufacturing. Meanwhile, it is specialized in power transmission and distribution products such as Insulators, Drop-out Fuse, Fuse link, Load Interrupter Air Switchs, Surge arrester, Outdoor Off-Load Isolator Switch Disconnector switch etc. We have won many orders for World markets, Like South Korea, Spain, Malaysia, Thailand, Yemen, etc.
Our most of the products have passed the type test performed by Electric Power lin Aeeseeory Quality Inspection Center of electric Power industry, such as Xi'an High Voltage Research Insitute. And IST off-load switch type IST-12KV/400A already passed CENTRAL POWER RESEARCH INSTITUTE HIGH-VOLTAGE LABORATORY India. Our 12KV 8KA Drop Out fuse already passed the ASTA testing in the year 2015.
Promise of After-sales Service
To ensure the quality of After-sales Service, We have established the After-sales Service Department, and compiled the process of after-sales service, We require service-man should passion, cordial, patient, careful, considerate and instant for customers. Our general service: After receive telephone, the local service-man direct to the site to solve the problem, to security reasonable interest of the customer. When finishing all the work. Service men must fill the bill of customers' feedback suggestion, and ask the customers' signature. Then deliver it to the After-sales Service Department as feedback information, then to the designing and exploiting department. Special condition: Directly send someone from company to dealing, Our products' guarantee days are two years. Within those days, Quality problems of causing by customers. We'll repair freely, Causing by customers using, operating and keeping un-properly, we'll repair permanently and charge properly. Out of guarantee days, we'll repair with charge (fee of component and repairing).
Main Technical Testing Equipment
No.
Name of checkout equipment
1
86-G Type impulse peak Voltage test equipment
2
MY-4KV Type voltage dependent resistor test equipment
3
MDA-30 Type DC parameter test equipment
4
Metal-oxide surge arrester bleeder current test equipment
5
500KV power frequency withstand voltage test equipment
6
HR-3 Type loop resistance test equipment
7
GKC-6 Type High-voltage switch mechanical properties test equipment
8
5A heavy current test equipment
9
YHN-8 Type auto power frequency withstand voltage console
10
CJV-800 Type impulse with stand voltage test equipment
11
CJI-1 Type impulse with stand current test equipment
12
JF-1 Type complementary Metal-oxide surge arrester instrument for measuring partial discharge
13
XR-2 Type power frequency test equipment
14
MD-1A Type Metal-oxide surge arrester electrification test equipment
15
JZ-800 Type AC/DC high voltage test equipment
16
XC -5/220 Type control box
