| Prod Model: |
skk |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Temperature: |
-40c-130c |
| Color: |
Available in Various Colors |
| Materials: |
Silicone Rubber |
| Service: |
OEM/ODM |
| Use: |
Keyboard, Calculator Soft Silicone Rubber Buttons. |
| Price: |
Factory Direct Price |
| Package: |
Poly Bag, Carton Boxes |
| Type: |
Flexible |
| Material: |
Silicone |
| Application: |
Camera |
Product Description

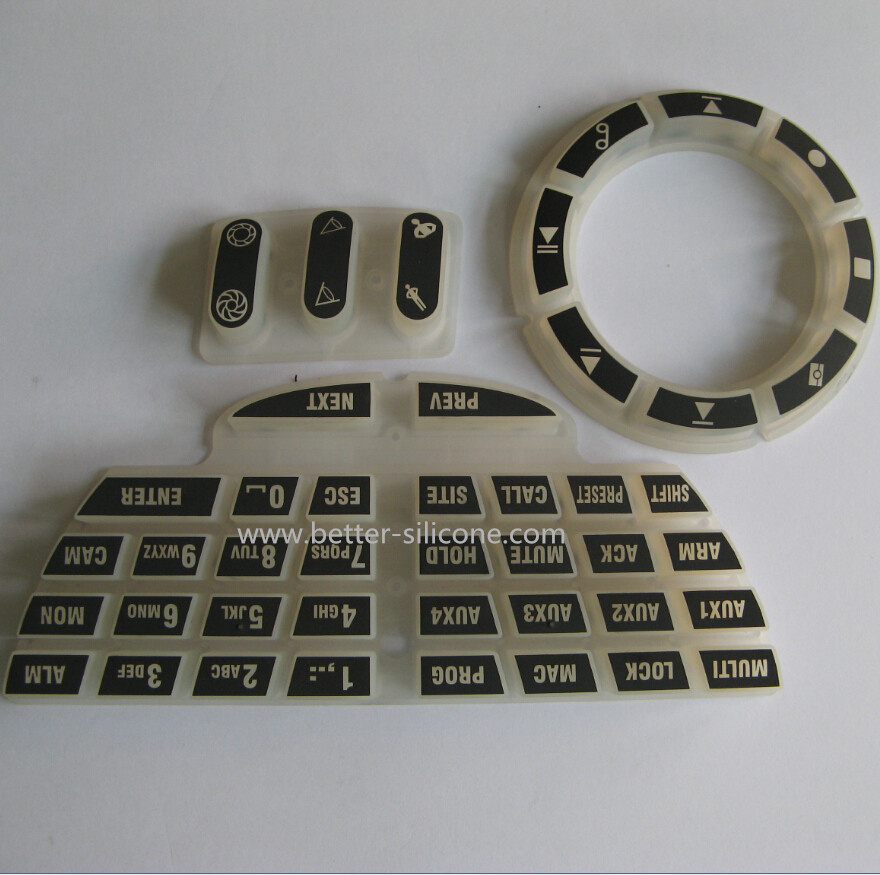

Designed Silicone Rubber Laser Etched Keypad with High Quality
Laser etched keypads are customized using translucent silicone rubber which is available in a variety of colors.
Generally, custom make laser etched keypad, the materials choose transparent silicone rubber, which better than normal translucent silicone materials.
After finished basic compression transparent elastomer rubber keyboards production, the laser etched keyboards are sprayed opaque coating. First processing coated color (inner color) is same to the desired legends color, and the second processing coating color which is keyboard surface colors.
After finished the laser keyboards coating, puting the keyboards into the laser etched keyboard machines for laser etched keyboard process.
Notes: Inner color and surface color gennerally is big color contrast.
Like inner plating color is white, the surface color mostly choose black.
Choose inner translucent silicone keyboard with gray or black color keypad to do laser etched keypad process, the keyboard can't show laser mark characters without backlight.
Xiamen Better Silicone Co.,Ltd can help you decide which are suitable for your particular laser etched keypads.

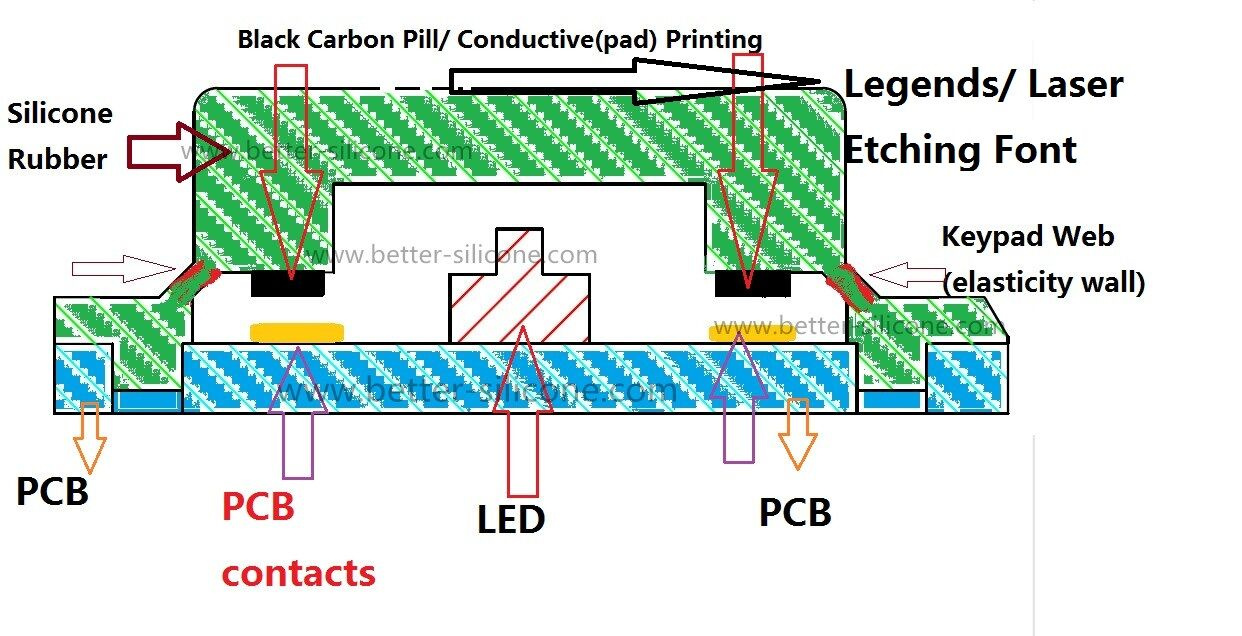

Laser Etched Keypad Production Process
1) Laser etched rubber keypads are manufactured using translucent silicone rubber that is available in a variety of colors.
2)The laser keypad is then sprayed with opaque coating.
3)After coating, the translucent silicone rubber is laser etched with the desired legends to expose the translucent material on the surface of the custom keypads.
Laser Etched Keypad Product Feature

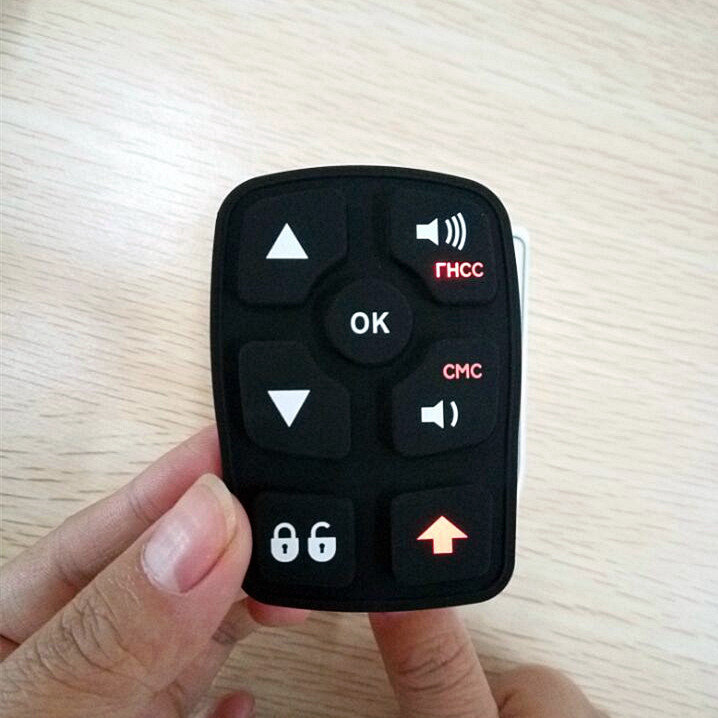

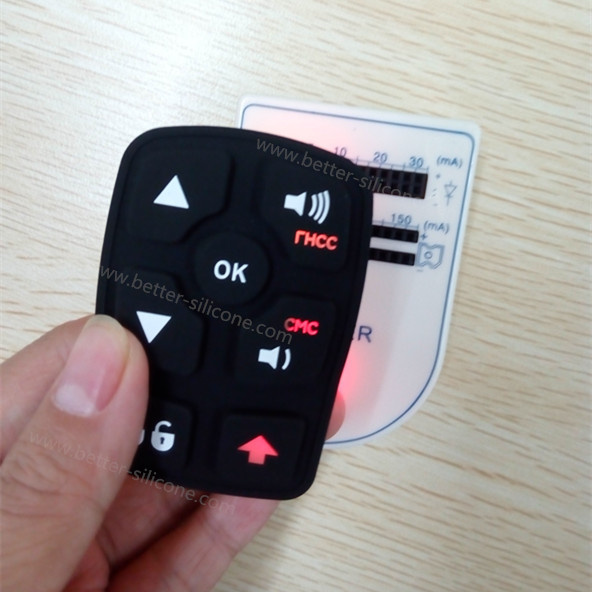

When backlit only the etched characters on the laser keypads transmit light. This makes them ideal for applications where excess light spillage, would and light glare would detract from the usability of the end product.
Laser Etched Keypad Applications
Cell phone, electronic dictionary, calculator, remote controller, POS terminal, etc.
Laser Etched Keypad Advantages
1)high precision and good aesthetic
2)cost effective to large quantities
3)long lifespan keypad
4)all shapes and colors are available for customer's design
Quickly Quotation Requirements:
1. Show a top and side view
2. Dimension as shown
3. Include number of legend and rubber colors
4. With or without carbon pills
5. Quantities to be quoted
These are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.
| 1. | Offering 2D/3D design drawings, Samples or other basic infromation |
| 2. | Materilas Demands |
| 3. | Sizes Tolerance Demands |
| 4. | Hardness Demands: |
| 5. | Color Demands |
| 6. | Mold Life Demands, Mold Steel Demands |
| 7. | Surface Demands |
| 8. | Flame Retardant, Oil-proofing etc. |
Silicone Rubber /Plastic Keypads Custom-Made Types:
1. Laser etched silicone rubber keypad,
2. Plastic Keypads with Plastic Keycaps ( protect ive transparent PC, PMMA acrylic key cap) / Keypad Cover
3. Double -color button pad without Coating / Printing
4. Silicone Electronic Conductive Printing / Coating control button
5. Phosphorescent / Fluorescent Silicone Rubber Keypad
6. Elastomeric (silicon gel, elastomer, elastosil) Silicone Rubber Keypad with Dual Durometer / Hardness Keys
7. Silicone Rubber Keypads with Epoxy Keypad
8. Custom Rubber Keypads with In-Mold Graphics
Our Advantages:
1). Precision Own Mold-Making Technology (Since 1998)
2). Competitive Price: Origin Manufacturer.
a. Mold-Making Plant
b. Silicone Rubber Compression Plant
c.Plastic Injection Plant
d.Liquid Silicone Rubber Injecton Plant (LSR)
e. Assembly Plant.
3). Five Experienced Designers and Engineers. Experienced Workers, QC Persons to assure Higher Qualified Products
4). Production and Test strictly according to ISO9001.
Eco-friendly Materials: ROHS, SGS, ISO FDA, LFGB Certification
Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer, etc.
5). Production Environment
6). Rapid Reaction Organization: Support Customer at short time
Short Leading Time to make molding tools.
Offer qualified samples and products in short time.
Professional manufactory with High quality + Cheapest price+ Best service+
Strong design+Fast delivery |
| Material | 100% high quality silicone |
| Size | customized |
| Usage | suitable for remote controller, keyboard, calculator, cell phone |
| Color | any colors available |
| OEM | yes |
| MOQ | 1000pcs |
| Package | opp bag or customized |
| Payment | T/T, Paypal , Western Union |
| Delivery | 3 days for samples, 15-20 days for orders, just depend on different order quantity |
| Shipping | Goods can be delivered by Sea, Air and Express ( DHL, EMS, FedEx) |
| Your inquiry will be welcome anytime. |
Xiamen Better Silicone Import and Export Co., Ltd, which specialized in making Rubber Compression / plastic injection /Liquid Silicone Rubber Injection mold tool and producing silicone rubber compression parts, plastic injection parts, Liquid silicone rubber injection parts: Rubber Sheet, Gasket, O-RING, Seal, Silicone Rubber Valve, Silicone Rubber Keyboard, Rubber Nozzle, Rubber Grommet, Silicone Bushing Sleeves, Rubber Damper, Rubber Bumper, Rubber Bellows, Silicone / Liquid Silicone Mask, Connectors etc.
Xiamen Better Silicone Import and Export Co., Ltd have five production Plant:
1. Mold-Making Plants: Rubber Compression Mold, Plastic Injection Mold, Liquid Silicone Rubber Injection Mold
2. Rubber (Silicone) Compression Plant
3. Plastic Injection Plant
4. Liquid Silicone Injection Plant (Clear Room)
5. Assembly Plants (Clear Room)
As a factory management cooperation, we focus on improving Mold-making technology, each production plant efficiency, and take full advantage to enjoy customer's demands and meet marketing demand.
Our Advantage:
Own Precision Mold-making Technology (since 1998 years)
Experienced Technical Persons and Workers
One-stop Service: Mold Tool Making, Silicone Rubber Compression Production, Plastic Injection Production, Liquid Silicone Injection Production and Assembly.
Experienced Industry Knowledge, Leading industry: Electronic Industry (like Precision Silicone Rubber Smart Cellphone Parts, Rubber Keypad, 3M Adhesive Tape+Silicone Rubber etc), Medical Industry (like Silicone/Liquid silicone rubber mask/valve/gasket etc), Sanitary Industry (like Silicone Shower Head Nozzles).
Well-established and Down-to-earth Company: Improve production technology and also use qualified formal materials
