| Prod Model: |
WB-DPDU-04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions: |
261*44.45*44.45 mm |
| Rated Current: |
13A |
| Rated Voltage: |
220~250V |
| Materials: |
Aluminum Alloy+PC |
| Outlet: |
BS1363 + USB2.0 |
| Height: |
Desktop Series |
| Grounding: |
Standard Grounding |
| Shell Material: |
Aluminum Alloy |
| Application: |
Residential/General-Purpose |
| Cable Length: |
2 Meter |
| Color: |
Black |
| IP Rating: |
IP20 |
| Certification: |
ISO: 9001 |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Feature

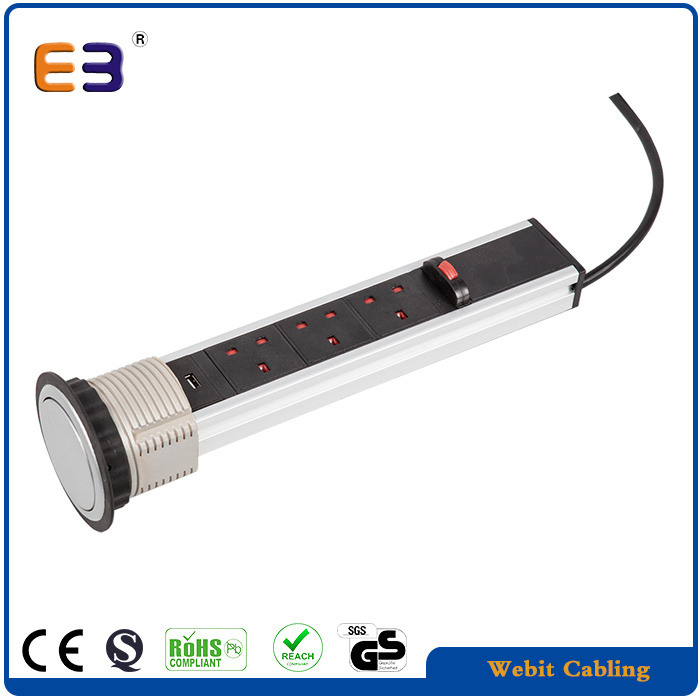

In-desk type retractable PDU, with leak-current protector
Aluminum-alloy shell,made from block burn PC
According to customer request, we could add AC or DC display
Color: Black or silver
Children safty protect.
Parameter
Rated current | 13A |
Rated load | 2500W |
Rated voltage | 220V |
Household voltage | 220V |
Number of sockets | 4 ways + 2 ways |
Size | In desk type |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | 3G*1.5mm2*2 mtr |
Type of plug | British used plug |
IP rate | IP20 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |
Usual Webitelecomms PDU optional function
| Protection | On/off switch (defaulted) |
| 3-lights protection |
| 1-light indictor |
| Surge protection |
| Fuse |
| Current Meter |
| Circuit breaker |
| Locking |
| Overload protector |
| NEON Light |
| Cables | PVC (defaulted) |
| RUBBER |
| LSZH |
| Shell | Alu-alloy (defaulted) |
| Plastic |
| SPCC |
| Mounting | 1U ears (defaulted) |
| Revolving ears |
| Hook |
| Desktop |
Package details
Carton size | 53*30*44cm |
Product box size | 52.5*29*7.5 cm |
Quantity in one carton | 10 pcs |
Metal enclosure |
Gross weight for one carton | 16kg |
Net Weight for one carton | 14kg |
Plastic enclosure |
Gross weight for one carton | 15kg |
Net Weight for one carton | 13kg |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) Can I require UK PDU with 5A fused
---Yes,Customized requirements is welcome.
3) What's your MOQ and how you suggest to delivery it?
---25pcs(1 carton) , Delivered by EXPRESS service, 3~5 days delivery time
4) Do you have CE for UK market?
---Sure,it is basic quality requirement of products. all PDUs have CE,RoHS to meet European Market's needs.
5) Can you produce 10" standard PDU for smart SOHO cabinet?
---10" , 19", non-19" all can be done as per your needs.
6) What is the Loading Port?
--- Usually Ningbo or Shanghai port.
7) What is your MOQ?
---Most of Webitelecomms PDU sold with 50 pcs MOQ, different items will be different. We have indicated the MOQ for each item in the price list.
8) Any certifications ?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
