Voltage:	220V
Cable Length:	1.95m
Max Pump:	550W
Max Current:	10A

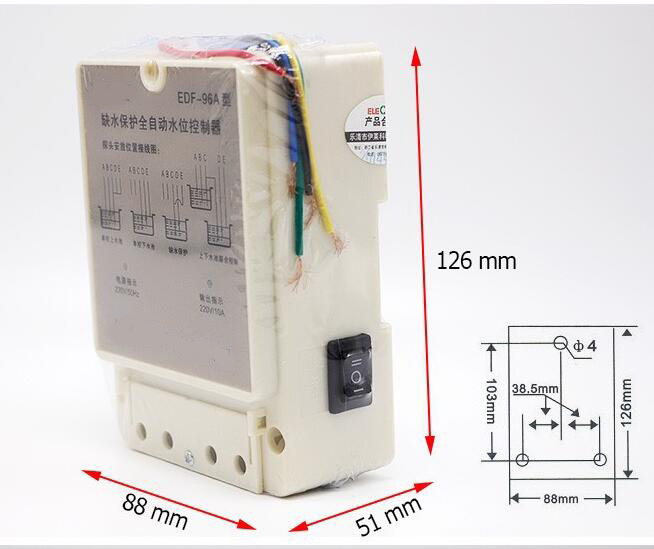

Dimensions:	126X88X51mm
Mounting Type:	Wall Mount

Product Description

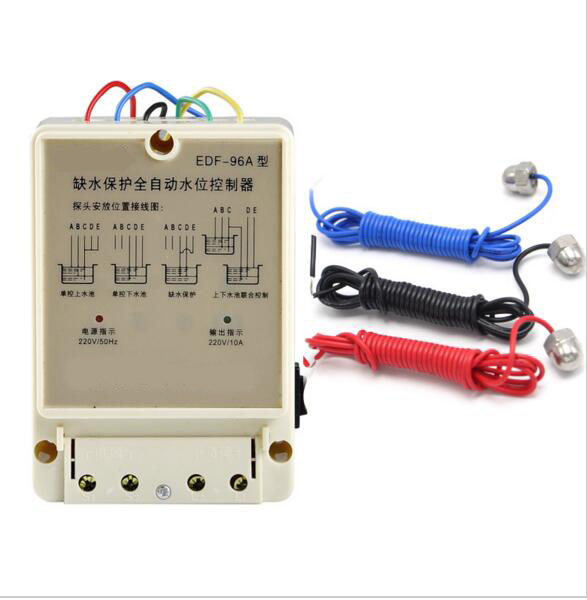

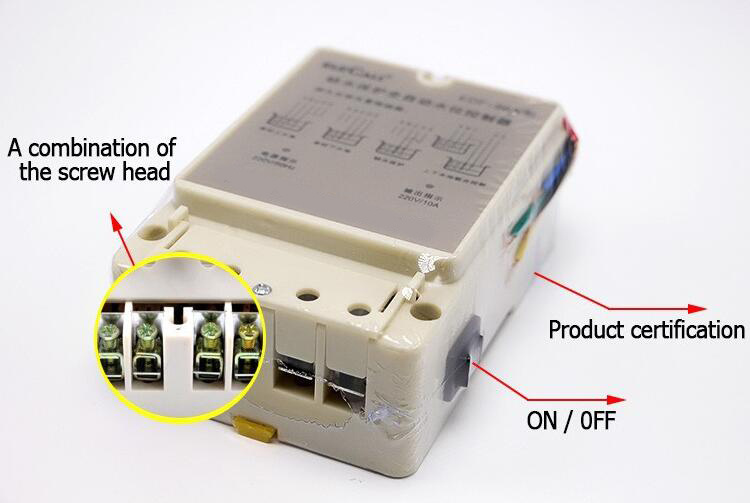

DF-96A DF96A 220V 10A float switch type Auto water Electronic Water Level Controller With 3 Probes





Function and Purpose
This product uses the integrated circuit, combined with the high-rise buildings, the sink (water tower) is designed to enhance the level classification has joint control under the sink, sink drainage and water protection and other functions, can automatically tank water, drainage , and effective pool water level to prevent water overflow or pump idling high damage, is an industrial, household products are applicable Very suitable for urban, rural, school, where mining enterprises and domestic water wells. Well Water Project, is widely used inprinting and dyeing, chemical, food, beverage, wine, sugar and other industries.

Performance Characteristics

Model	DF-96A	DF-96B	DF-96D
Dimensions	126x88x51mm	126x88x51mm	126x88x74mm
Operating Voltage	220V	380V	220V
Mounting Type	Wall mount& Din Rail Mount	Wall mount& Din Rail Mount	Din Rail Mount

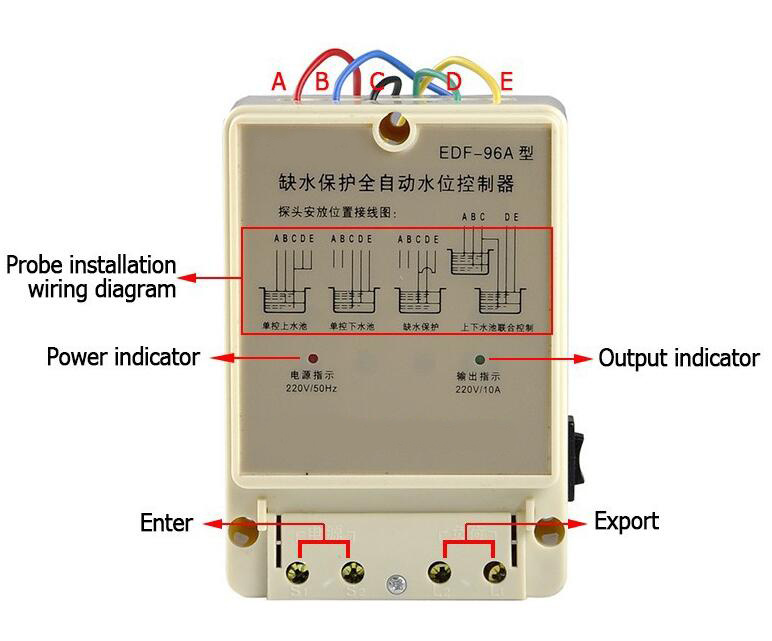

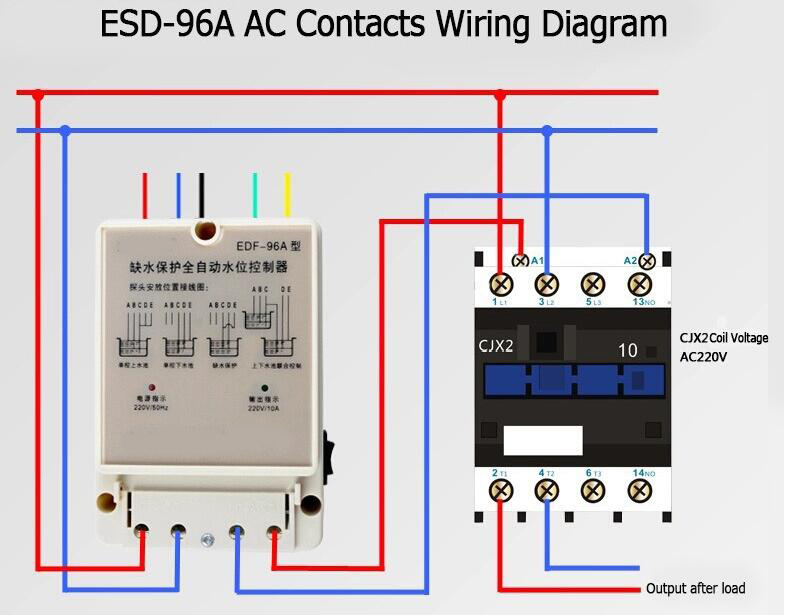

(A) single control head on the sink installation instructions to install the control diagram shown in Figure 1:
A (warp) - is the tank (water tower) upper level control point, the water level rises to reach point A water level, water in contact with the probe, the controller automatically shuts the water they pump;

B (blue line) - the upper pool (water tower) the lower level control point, the water level drops below the water table to point B, the probe out of contact with water, the water level controller automatically open the pump, pool filled with water;
C (black line) - for the pool (water tower) ground, the lowest point on the tank in contact with the bottom of the pool;
D (green line), E (yellow line) points and received C

(B) under the control of a single pool (ie drainage pond) probe installation instructions to install the two shown in Figure:

E-limit pond level control for the next point, the water reached the point E are rising water level, water in contact with the probe, the water level controller automatically open the pump, pond drainage; Without drainage, the E point is not connected ;

D-limit for the next pond level control point, the water level dropped to D level, water control head disengagement, water level controller automatically shuts the pump to stop the drainage basin;

C-ground pool is the lowest point to put in contact with the bottom of the water tank;

A, B point is not connected.
(C) water protection probe installation instructions to install the diagram shown in Figure 3:

C, D point to the lower pool level control point, the water level down to the lower level, C, D probe and the surface of the disengagement, water level controller relay immediate action, cut output, the pump stopped working;

Point C and point E shorted;
A, B point is not connected.

(D) joint control up and down the pool installation instructions to install the probe is shown in Figure III:
A-is the pool (water tower) ceiling level control point, the water level rises to reach point A water level, water control head contact, the controller automatically shuts the water they pump;

B-is the pool (water tower) limit their fluid control point, the water level drops below the water table to point B, water and probe disengagement, automatic level control pump, pool filled with water;

C-upper, without the pool (water tower) public online, on the lowest point of contact with the bottom of the sink basin;

D-limit for the next pond level control point, the water level dropped to D level, water and probe disengagement, water level controller automatically shuts the pump to stop the drainage basin;
E-limit pond level control for the next point, the water level rises to the point E water level, water in contact with the probe, the water level controller automatically open the pump, pond discharge head; Without drainage, the E point is not connected.
