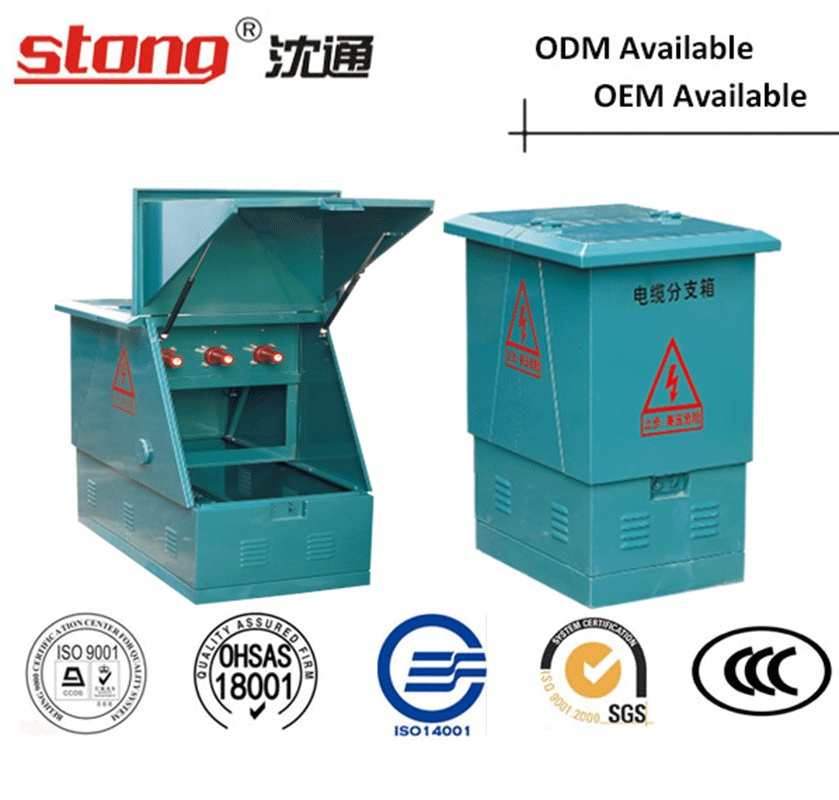

Dfw Series Electrical Cable Branch Box
| Price: |
US $ 8000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,Western Union,Paypal |
| Prod Model: |
DFW |
| Rated Frequency: |
50Hz |
| Customized: |
Available |
| Attribute: |
Electric Cabinet |
| Function: |
Power Transmission |
| Main Accessory: |
Vacuum Circuit Breaker Vcb |
| Position: |
Outdoor |
| Effect: |
Transformer |
| Rated Operating Voltage: |
AC 380V |
| Type: |
Prefabricated |
| Structure: |
Box |
| Brand: |
Shentong |
Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

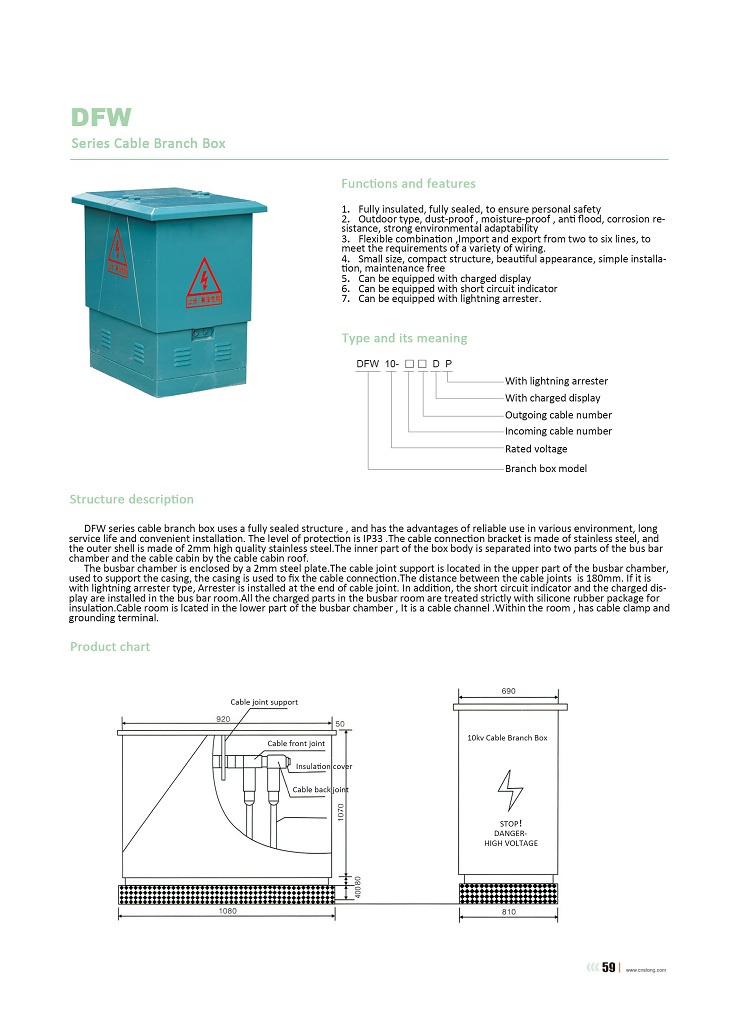

Functions and features:
1.Fully insulated, fully sealed, to ensure personal safety
2.Outdoor type, dust-proof , moisture-proof , anti flood,corrosion resistance, strong environmental adaptability
3.Flexible combination ,Import and export from two to six lines, to meet the requirements of a variety of wiring.
4.Small size, compact structure, beautiful appearance,simple installation, maintenance free
5.Can be equipped with charged display
6.Can be equipped with short circuit indicator
7.Can be equipped with lightning arrester.
Model meaning:
DFW----------Branch box model
10-------------Rated voltage
-------------Incoming cable number
-------------Outgoing cable number
--------------With charged display
--------------With lightning arrester
Description
DFW series cable branch box uses a fully sealedstructure , and has the advantages of reliable use in various environment, long service life and convenientinstallation. The level of protection is IP33 .The cable connection bracket is made of stainless steel, and theouter shell is made of 2mm high quality stainless steel.The inner part of the box body is separated into two parts ofthe bus bar chamber and the cable cabin by the cable
cabin roof.
The busbar chamber is enclosed by a 2mm steelplate.The cable joint support is located in the upper part
of the busbar chamber, used to support the casing, the casing is used to fix the cable connection.The distance
between the cable joints is 180mm. If it is with lightning arrester type, Arrester is installed at the end of cable
joint. In addition, the short circuit indicator and the charged display are installed in the bus bar room.All the
charged parts in the busbar room are treated strictly with ilicone rubber package for insulation.Cable room is
lcated in the lower part of the busbar chamber , It is a cable channel .Within the room , has cable clamp and
grounding terminal.
