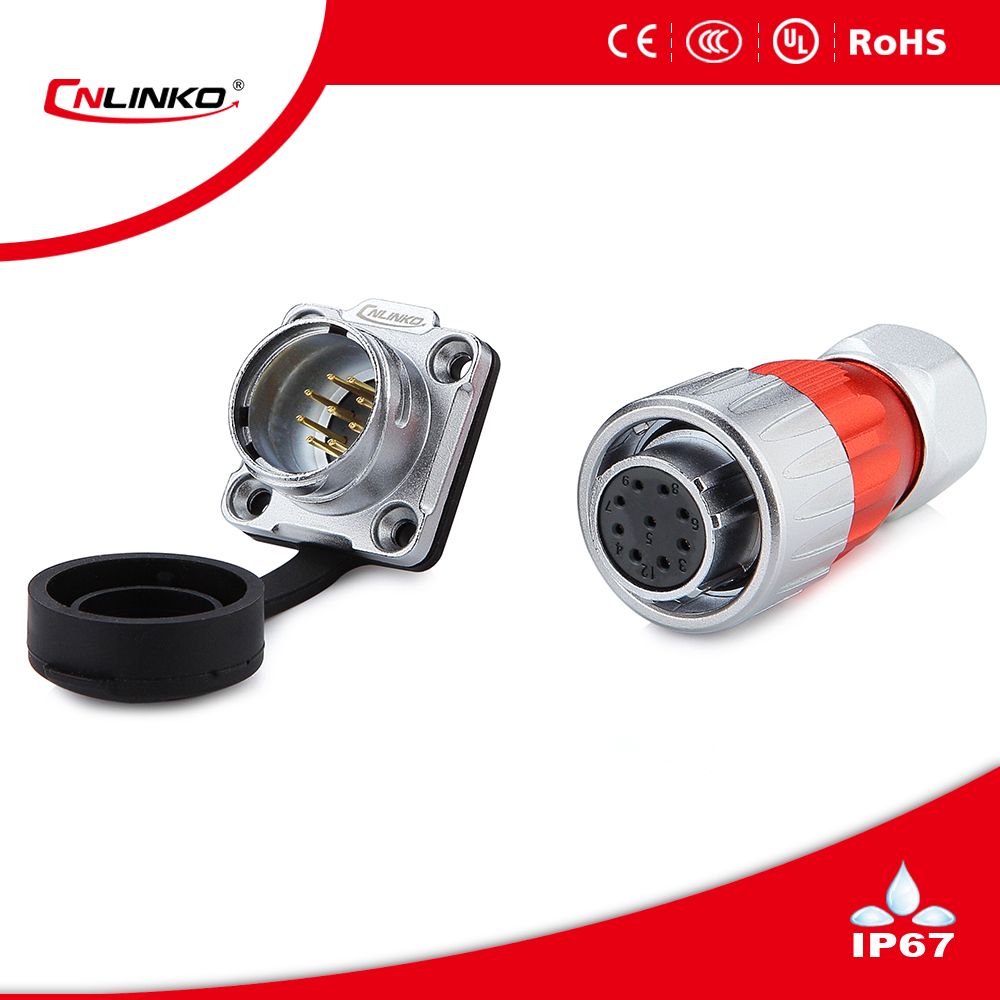

Dh-20 Power Waterproof Connector with 9pins

Name: Dh-20 Power Waterproof Connector with 9pins
Brand: all-electronics-online.com
SKU: 803053695
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 7.49-8.38/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DH-20-C09PE-01-001, DH-20-J09SX-01-001
Contact Diameter × Number:	Φ1.0×9
Rated Current:	5A
Operating Voltage (AC.V.RMS):	400V
Contact Resistance:	<5mΩ
Withstanding Voltage(AC.V)1 Minute:	2500V
Protection Level:	IP67
Assembly Wire:	Solder
Waterproof Circle:	Silica Gel
Connecting Mode:	1/4 Bayonet Connector
Housing:	Zinc Alloy
Application:	LED Display, Industrial Equipment
Gender:	Male and Female

Product Description

Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727071103_21380.jpg

DH20 serials waterproof connector, with unique wave spring design, standard card slot, rotary locking type and fashionable design to meet customer's demands, widely be used in LED display screen, industrial equipment, stage lighting equipment and other field.

1.Three positioning, designing with wave spring knob, the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
2.Using wave spring structure,making elastic wave spring stranded automatically while connection.
3.Using outer alloy ring, keeping the plug and socket more stable while closed , making the power supply or signal transmission more stable and comparable while connection.
4.Using tail jaws designing, to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and making the nuts anti-back effectively.
5. Waterproof clip coil designing, making the products have better waterproof rating while closed.
6. Waterproof IP65/IP67 while connection.

Cable specification:	0.15mm²~0.2mm²/26-24 AWG
Diameter range:	Φ5.5mm~Φ7mm
Contact diameter × number:	Φ1.0×9
Rated Current:	5A
Operating voltage (AC.V.rms):	400V
Contact resistance:	<5mΩ
Temperature rise:	/

Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP65/IP67	Durability:	≥500 times
Working temperature:	-40ºC~80ºC	Connecting mode:	1/4 Bayonet connector
Assembly wire:	solder	Housing:	Zinc alloy
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy (gold-plated 4U)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.
