| Prod Model: |
DH-24-USB3.0-P01, DH-24-USB3.0-S01 |
| Rated Current: |
1.5A |
| Operating Voltage (AC.V.RMS): |
30V |
| Cable Specification: |
0.15mm-0.2mm2/26-24AWG |
| Contact Diameter × Number: |
9pin(3.0)&4pin(2.0) |
| Diameter Range: |
5.5mm~7mm |
| Contact Resistance: |
<30mΩ |
| Withstanding Voltage(AC.V)1 Minute: |
2500V |
| Protection Level: |
IP65/IP67 |
| Durability: |
More Than 500 Times |
| Connecting Mode: |
1/4 Bayonet Connector |
| Application: |
LED Display, Industrial Equipment |
| Gender: |
Male and Female |
Product Description

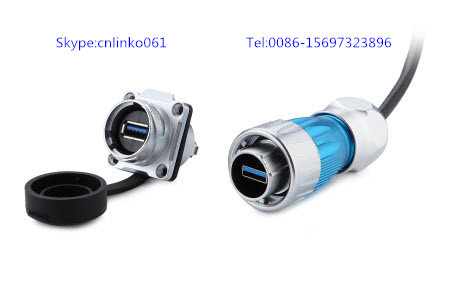

DH24 USB Connector for LED display screen, industrial equipment and other field
DH24 serials waterproof connector includes power, signal, USB and optical fiber, which is with alloy metal shell, unique design and rotary locking type to meet different industrial requirement, widely be used LED display screen, industrial equipment, stage lighting equipment and other field.
1.Three positioning, with wave spring knob, and the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
2.With wave spring structure,keeping elastic wave spring stranded automatically while connection.
3.With copper needle retainer, copper welding operations and install socket separated, making the products simple and convenient operated in harsh environments .
4.With outer alloy ring, making the plug and socket more stable while closed , keeping the power supply or signal transmission more stable and comparable while connection.
5.With tail jaws , to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and keeping the nuts anti-back effectively.
6. Using waterproof clip coil designing, keeping the products have better waterproof rating while closed.
7. Waterproof IP65/IP67 while connection.
Cable specification: 0.15mm²~0.2mm²/26-24 AWG
Diameter range: Φ5.5mm~Φ7mm
Contact diameter × number: 9PIN(3.0)& 4PIN(2.0)
Rated Current: 1.5A
Operating voltage (AC.V.rms): 30V
Contact resistance: <30mΩ
Temperature rise: /
| Withstanding Voltage(AC.V)1 minute: | 2500V | Insulation resistance: | >500MΩ |
|---|
| Protection level: | IP65/IP67 | Durability: | >500 times |
|---|
| Working temperature: | -40ºC~80ºC | Connecting mode: | 1/4 Bayonet connector |
|---|
| Assembly wire: | solder | Housing: | Zinc alloy |
|---|
| Hardware: | / | Copper needles: | Contact terminal |
|---|
| Waterproof circle: | Silica gel | Flammability rating: | UL94-V0 |
|---|
