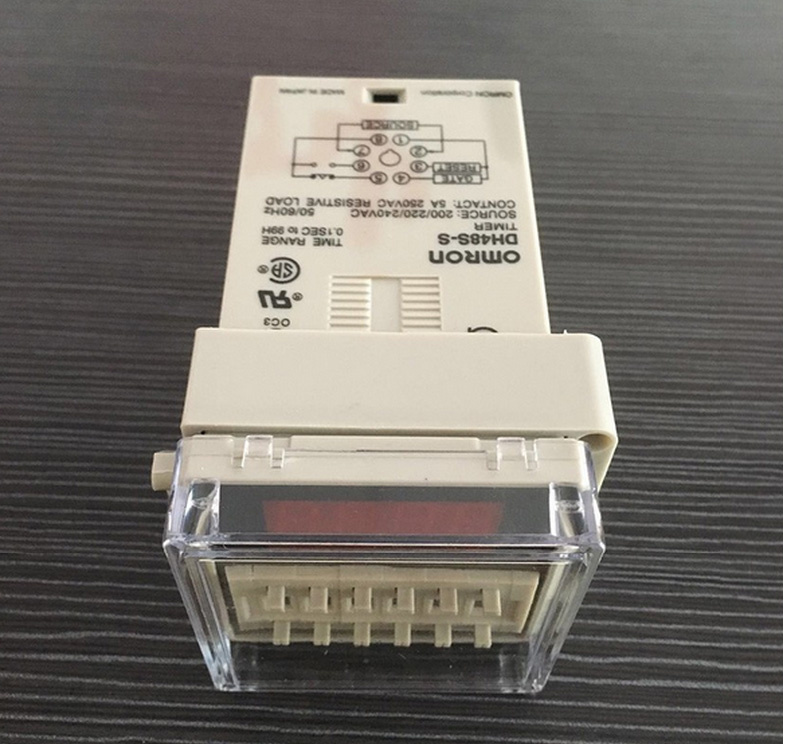

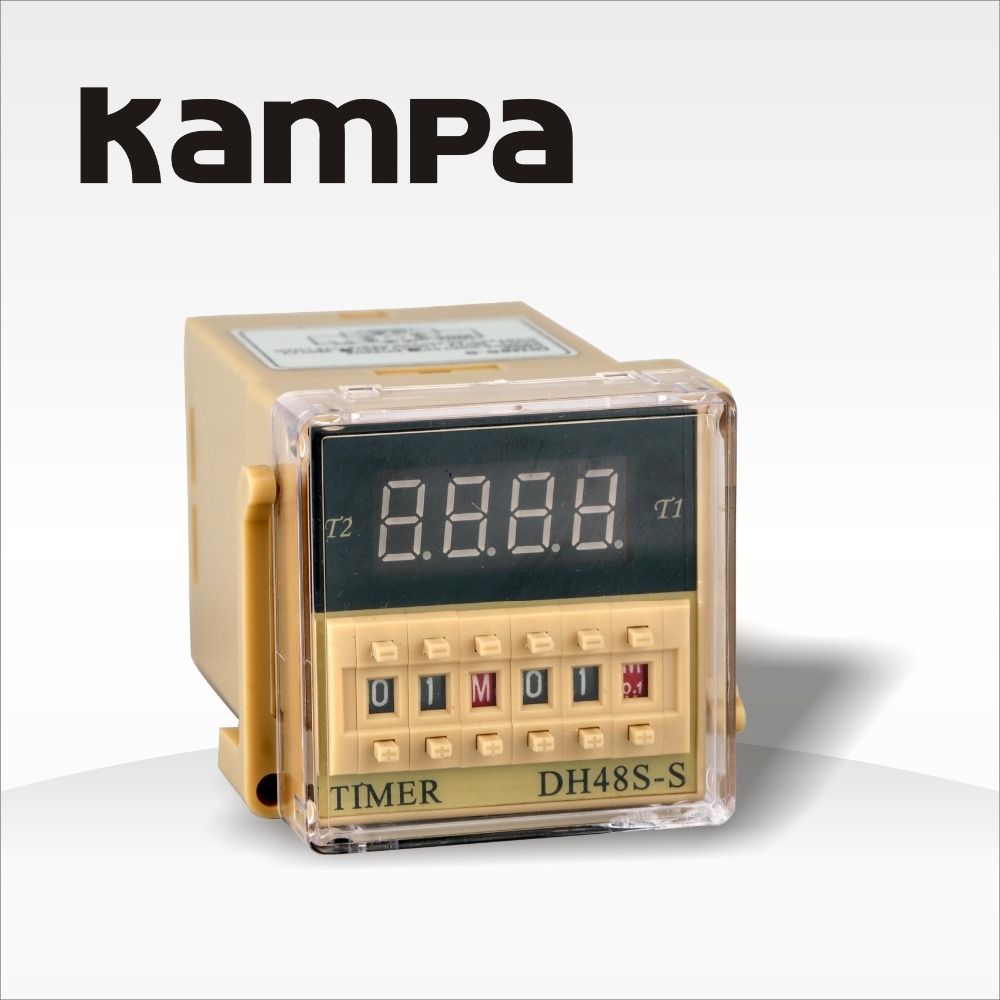

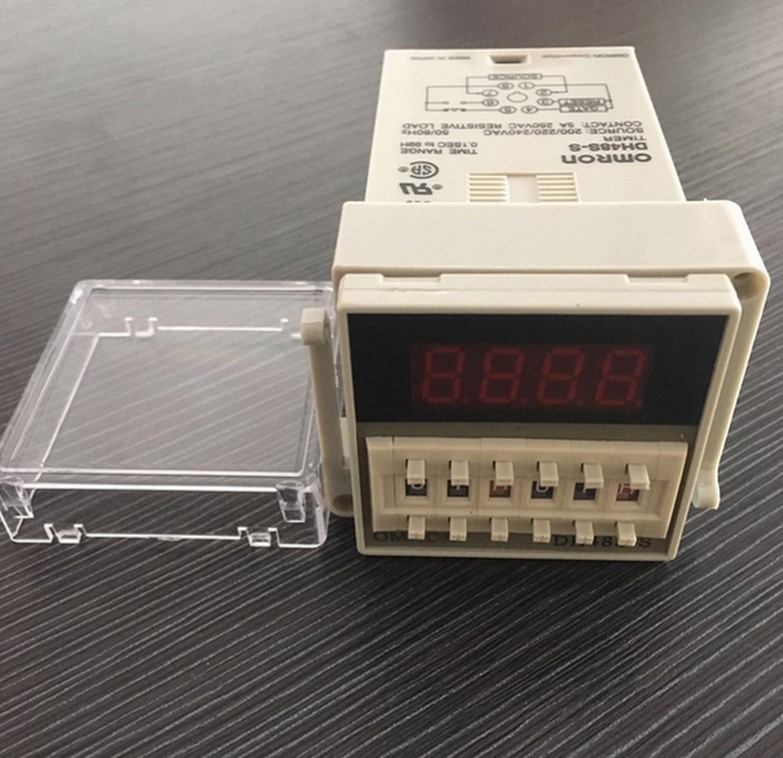

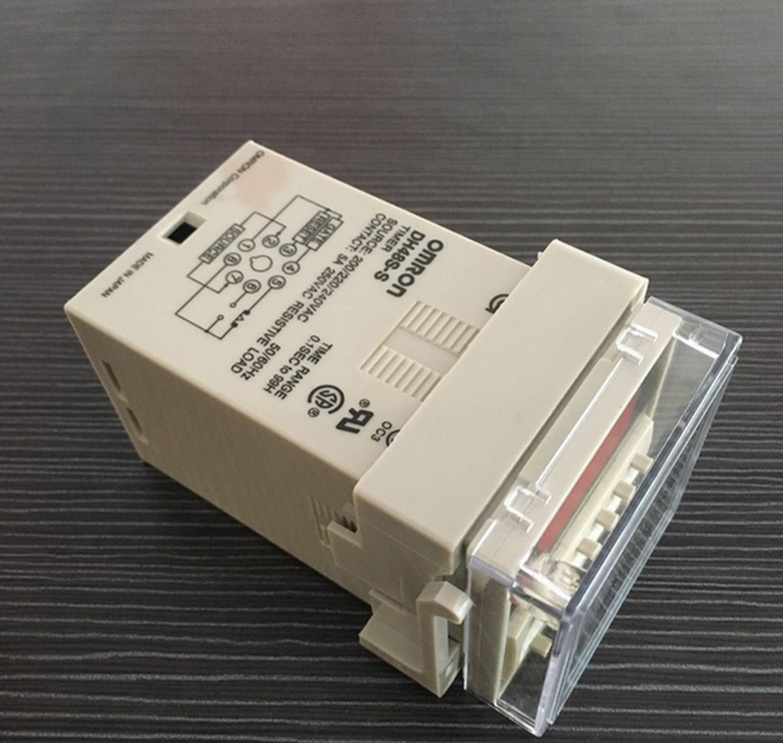

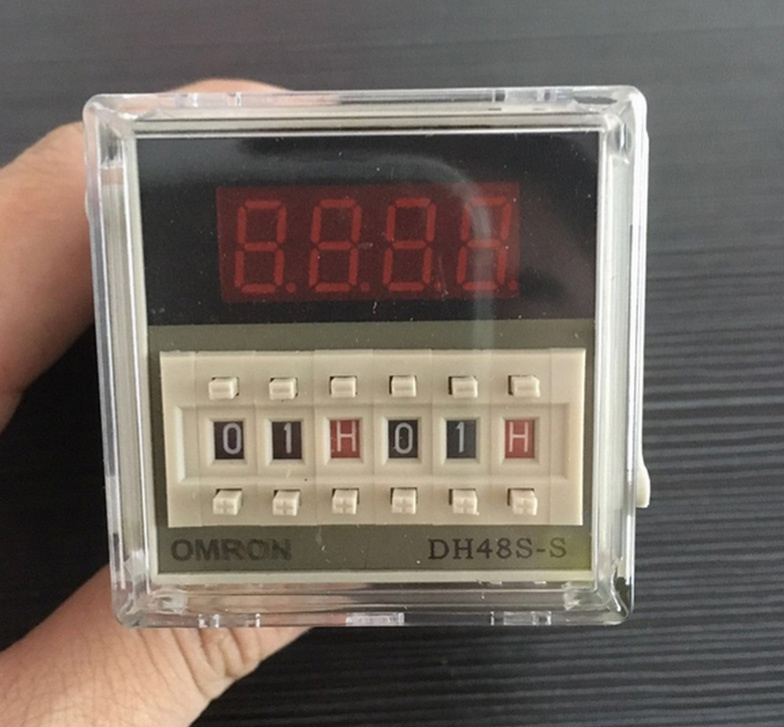

Dh48s-S 12V DC Repeat Cycle Control Circuit Digital Relay Timer Monthly

SPECIFICATION
ITEM:DIGITAL DISPLAY TIME DELAY
MODEL:DH48S/DH48S-S
OPERATING POWER:AC24V,220V,380V,50HZ,DC24V
POLE SIZE:45*45MM
CONTACT CAPACITY:5A AC220V(RESISTANCE)
CONTACT FORM:
JSS48A:DPDT WITH RESET AND PAUSE FUNCTION
DH48S:SPDT WITH RESET AND PAUSE FUNCTION
DH48S-2Z:DPDT
JSS48A-2Z:DPDT  WITH CONNECT WIRE AFTER PANEL
DH48S-SI:DPDT WITH RESET AND PAUSE FUNCTION
DH48S-S2:DPDT
OPERATING PATTERN:DH48S:ON-DELAY DH48S-S:CIRCULAR DELAY,AND CIRCULAR WORKING TIMES COULD BE CHOOSE FROM 1-15
REPEAT ERROR:≤1%
TIMING RANGE:DH48S:0.01~99,99S 1s~99m99s 1M~99H99M DH48S-S:01`990H
OUTLINE SIZE:48*48*105MM
MOUNTING TYPE:PANEL MOUNTING






YUEQING KAMPA ELECTRIC CO.,LTD
A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
