| Prod Model: |
DHR-400 |
| Shape: |
J Type Wedge |
| Form Of Installation: |
Pole or Wall Mounting |
| Execution Standard: |
GB13539\IEC60269\BS88 |
| Brand: |
Dhecn |
Product Description
Product DescriptionJ wedge fuse is according with GB13539, IEC60269 and BS88 standard.
The product has been used for overload and short circuit protection of distributing line. its rated voltage is 415V and rated current up to 630A AC 50Hz.
Technical DataRated voltage:415V AC
Breaking capacity:80KA
Function grade:gG /gL/gtr/aM/gM
| Type | Spec | Competitor part number | Rated voltage(V) | Class rating(A) | Dimensions(mm) |
| A | B | C | D | E | F | G | H | I | J | K | L |
| J | 82 | RGJ | 415 | 32~200 | 110 | 82 | 45.2 | 40.5 | 30 | 14.8 | 18 | 6.5 | 2.4 | 17.5 | 9.8 | 30.8 |
| J | 82 | RGJ | 415 | 200~400 | 110 | 82 | 44.8 | 40 | 30 | 14.4 | 18 | 6.5 | 2.4 | 17.5 | 9.8 | 38 |
| J | 92 | RGJ | 415 | 20~315 | 131 | 92 | 46.8 | 40.5 | 41 | 17.4 | - | 8.7 | 3.2 | 20.7 | 11 | 30.8 |
| J | 92 | RGJ | 415 | 355~400 | 131 | 92 | 46.4 | 40 | 41 | 17.4 | 24 | 8.1 | 3.2 | 20.7 | 10 | 38 |
| J | 92 | RGJ | 415 | 315~500 | 131 | 92 | - | 45 | 38 | 16.5 | 22 | 8 | 3.2 | 20.6 | 11 | 50 |
| J | 92 | RGJ | 415 | 560~630 | 129 | 92 | 44.5 | 47.8 | 38 | 16.5 | 22 | 8 | 3.2 | 20.6 | 11 | 73.3 |

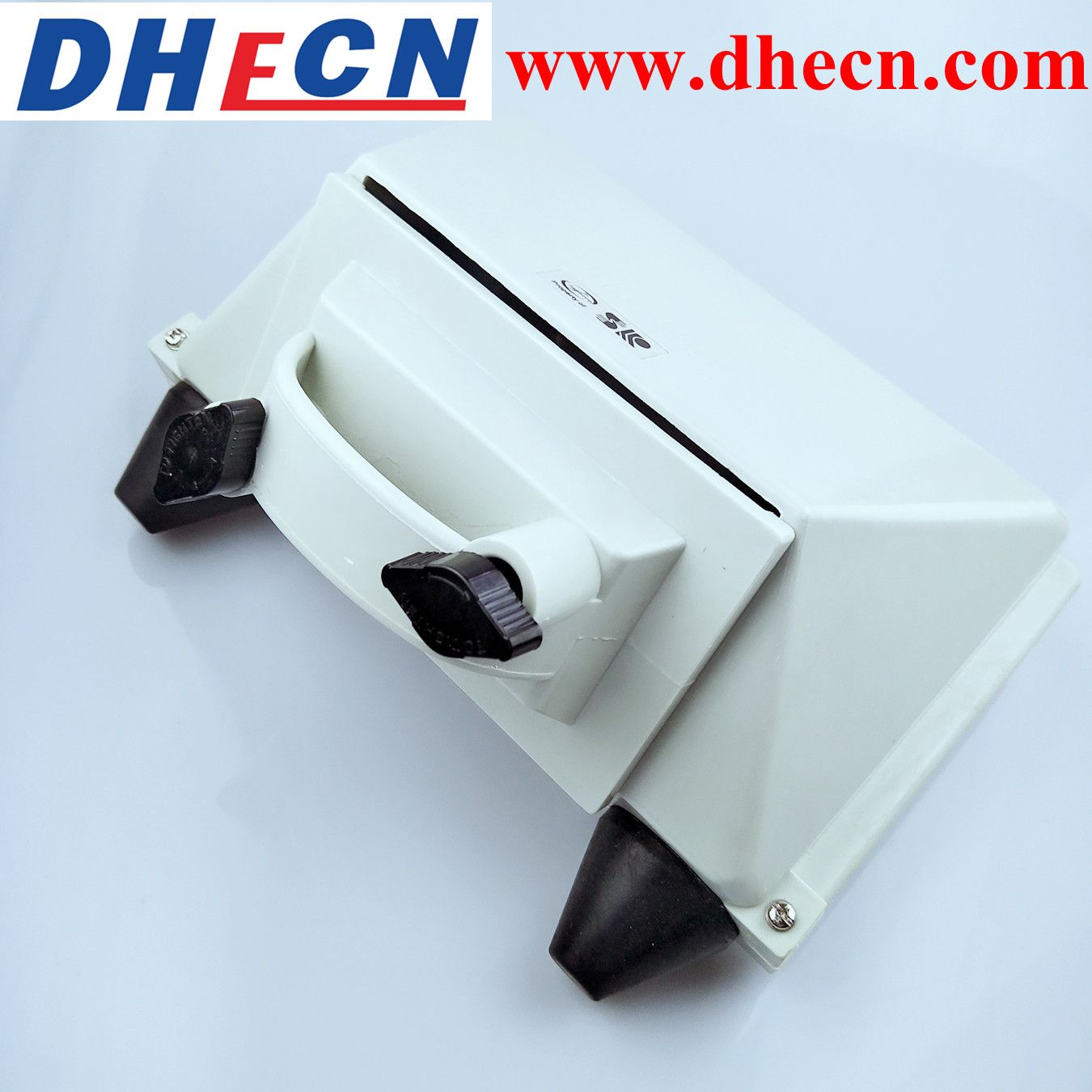

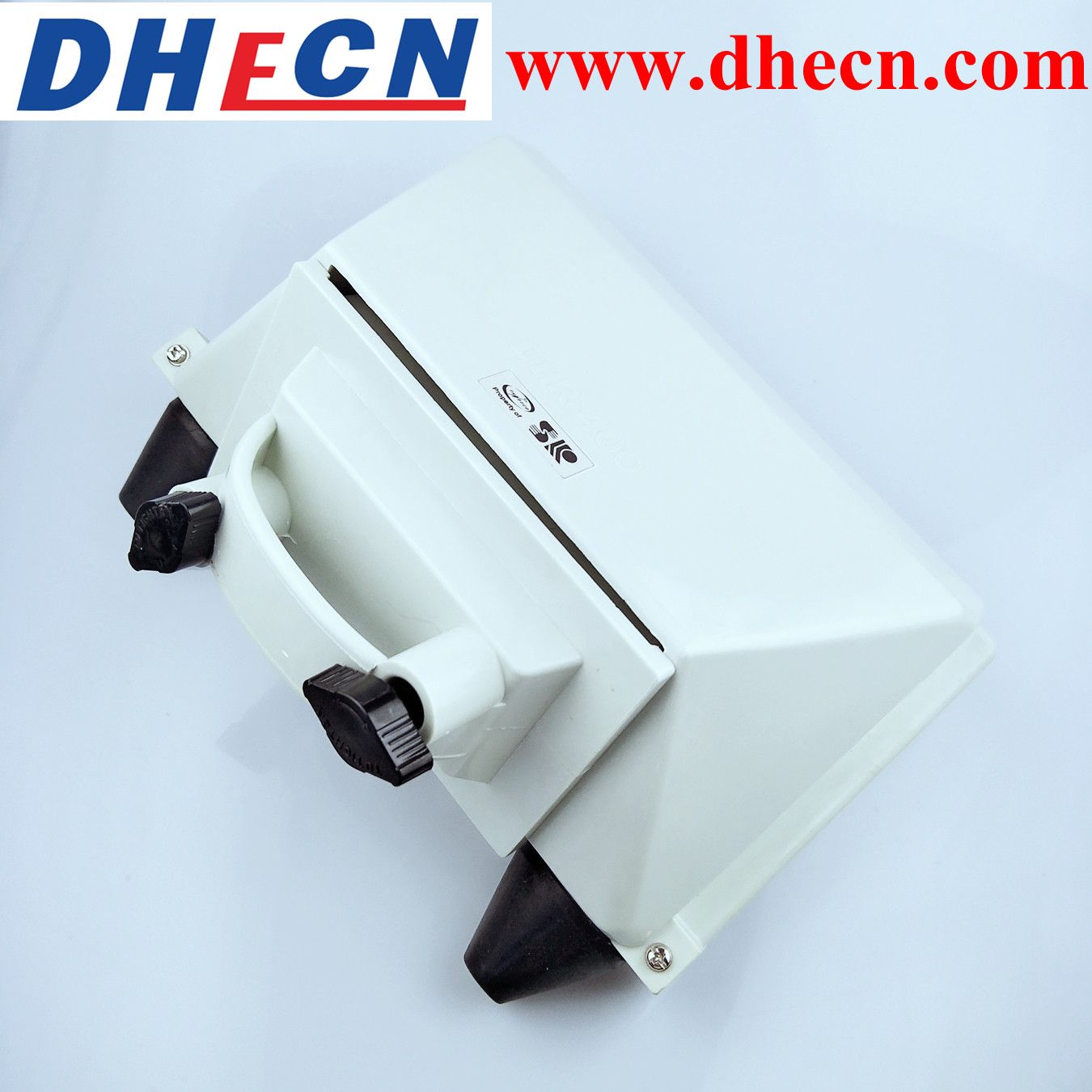

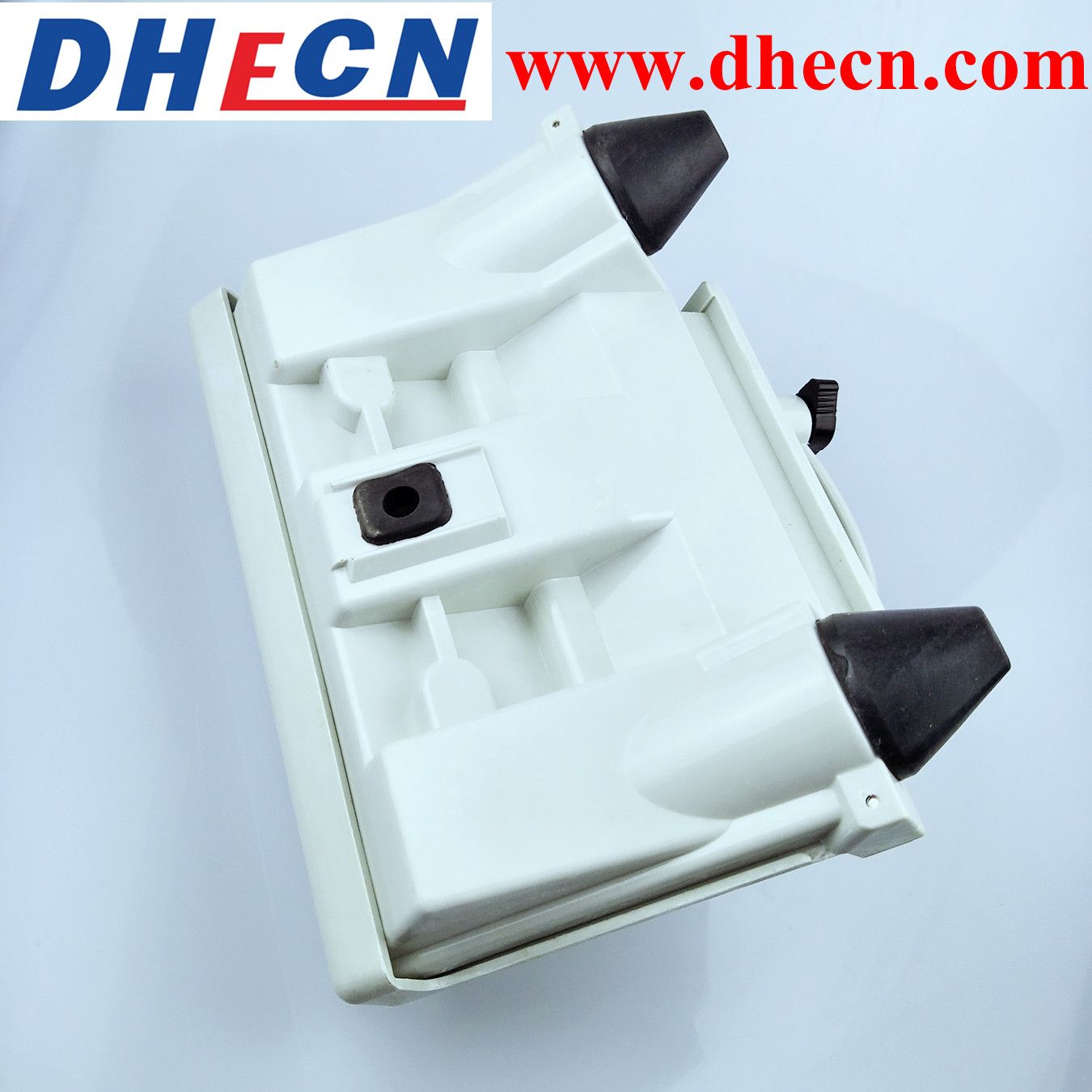

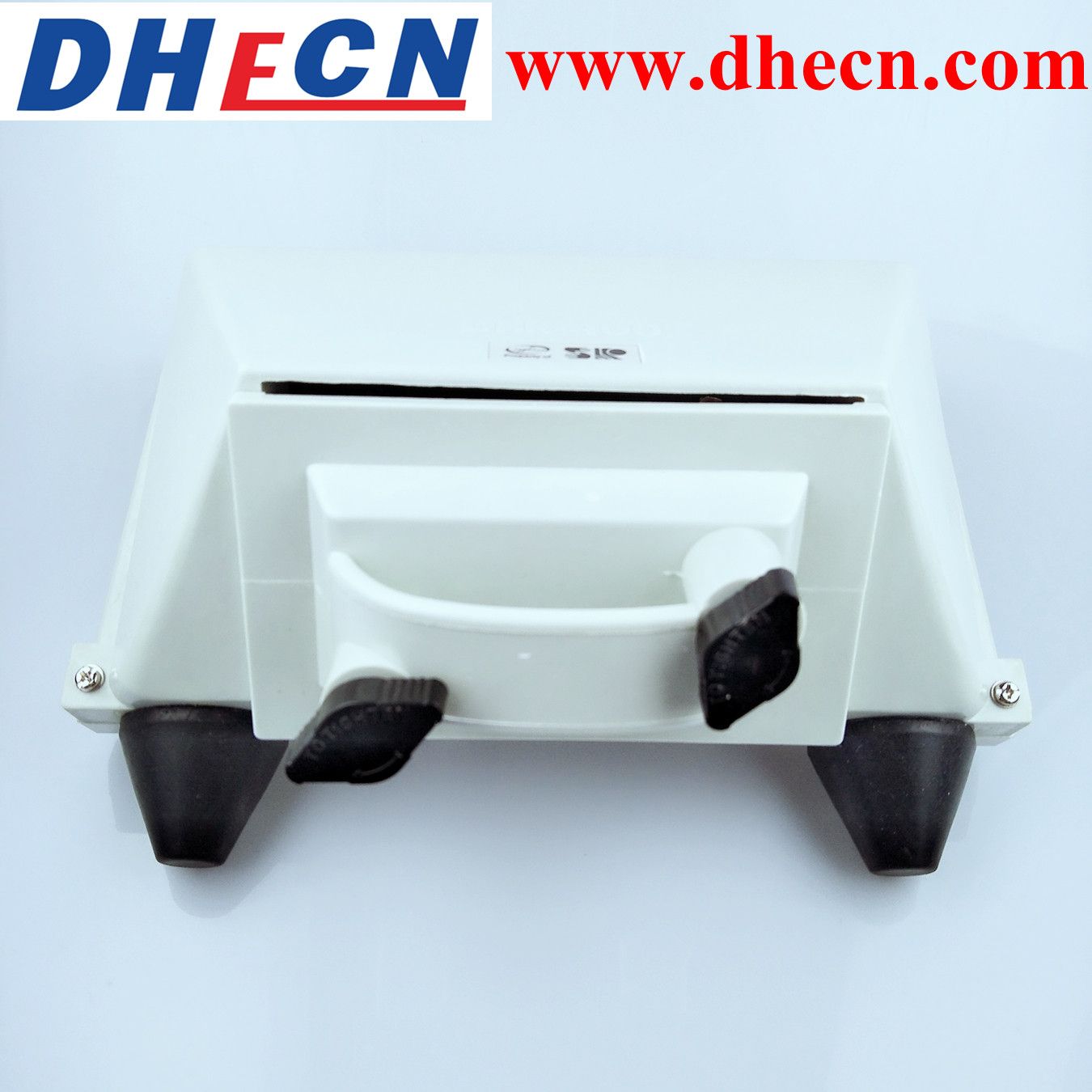

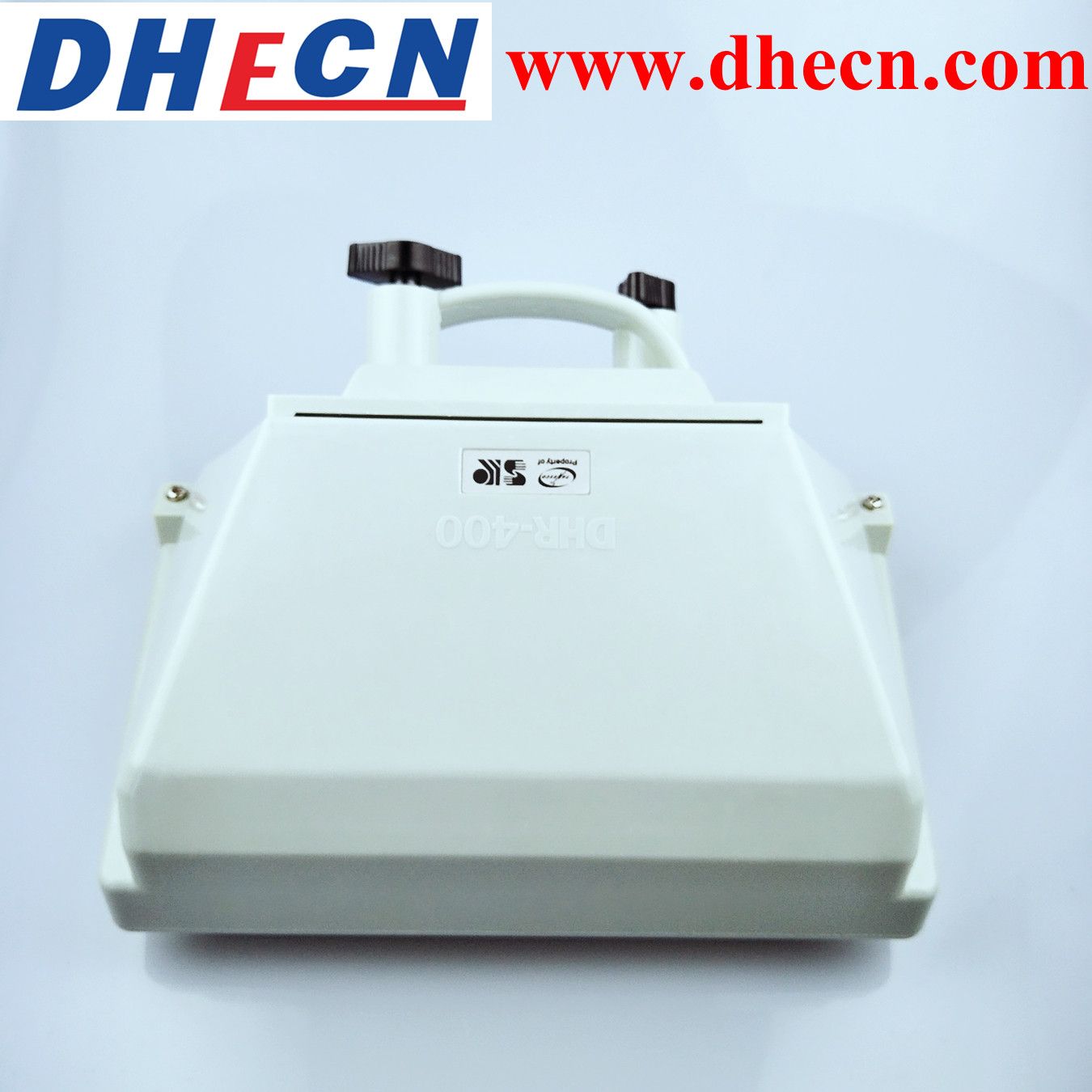

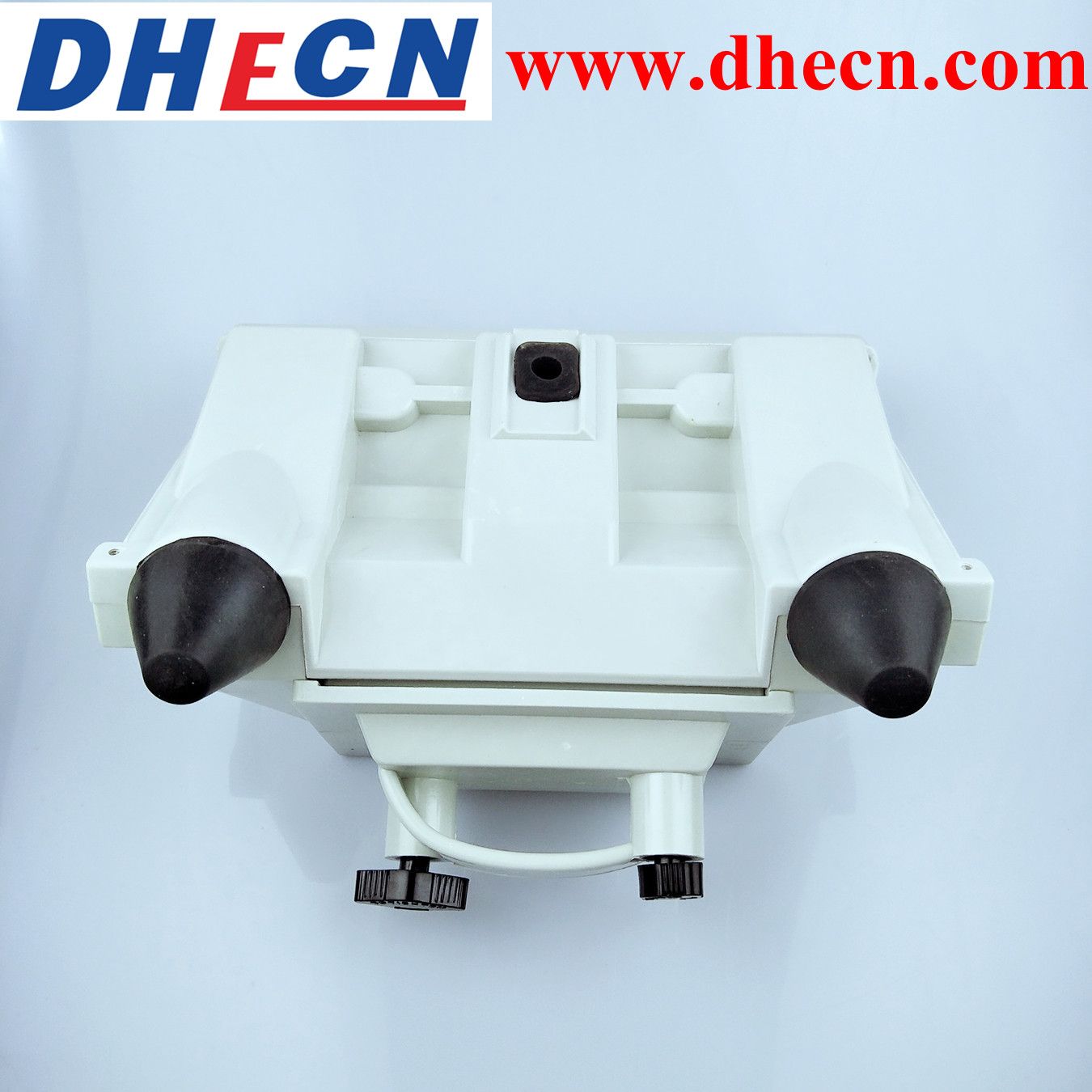

DHR-400
400A Fuse cut-out for pole or wall mounting c/w M12 coach screw.
Structure Feature
Vandal resistant tough design, using our own formulation of GRP.
Slide fit front cover for ease of jointing.
'Easy fit' studs accept cable sockets(lugs) up to 300mm².
Designed to accept standard 'J' type fuse links
Compliant with the requirements of BS7656:1993
Compliant with the design criteria of IP43
Fuse links
This fused Cut-out is designed to accommodate standard wedge type fuse links to BS88-5:1988, conform to 415AC80.
Fixing centre requirement is 82mm.
Standard fuse link rating range from 20A to 400A.
Product image
