Dhr-400 J Wedage Fuse and Base
| Price: |
US $ 0.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
DHR-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Curerent: |
200A,400A,630A |
| Rated Voltage: |
AC 400V/500V/690V |
| Breaking Capacity: |
High |
| Type: |
Temperature Fuse |
| Usaga: |
High Voltage |
| Standard: |
GB13539\IEC60269 and BS88 |
Product Description
Bolting offset tags J wedge fuse
Product brief
J wedge fuse is according with GB13539,IEC60269 and BS88 standard.
The product has been used for overload and short circuit protection of distributing line. its rated voltage is 415V and rated current up to 630A AC 50Hz.
Technical Data
Rated voltage:415V AC
Breaking capacity:80KA
Function grade:gG /gL/gtr/aM/gM
| Type | Spec | Competitor part number | Rated voltage(V) | Class rating(A) | Dimensions(mm) |
| A | B | C | D | E | F | G | H | I | J | K | L |
| J | 82 | RGJ | 415 | 32~200 | 110 | 82 | 45.2 | 40.5 | 30 | 14.8 | 18 | 6.5 | 2.4 | 17.5 | 9.8 | 30.8 |
| J | 82 | RGJ | 415 | 200~400 | 110 | 82 | 44.8 | 40 | 30 | 14.4 | 18 | 6.5 | 2.4 | 17.5 | 9.8 | 38 |
| J | 92 | RGJ | 415 | 20~315 | 131 | 92 | 46.8 | 40.5 | 41 | 17.4 | - | 8.7 | 3.2 | 20.7 | 11 | 30.8 |
| J | 92 | RGJ | 415 | 355~400 | 131 | 92 | 46.4 | 40 | 41 | 17.4 | 24 | 8.1 | 3.2 | 20.7 | 10 | 38 |
| J | 92 | RGJ | 415 | 315~500 | 131 | 92 | - | 45 | 38 | 16.5 | 22 | 8 | 3.2 | 20.6 | 11 | 50 |
| J | 92 | RGJ | 415 | 560~630 | 129 | 92 | 44.5 | 47.8 | 38 | 16.5 | 22 | 8 | 3.2 | 20.6 | 11 | 73.3 |

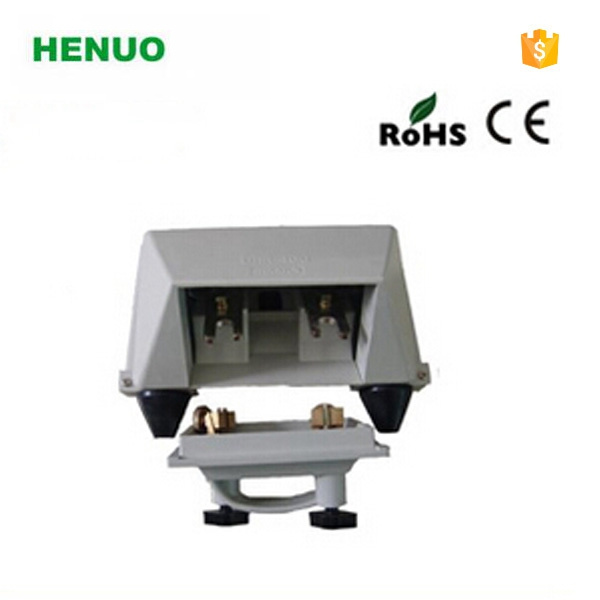

DHR-400
400A Fused cut-out for pole or wall mounting c/w M12 coach screw.
Structure Feature
Vandal resistant tough design, using our own formulation of GRP.
Slide fit front cover for ease of jointing.
'Easy fit' studs accept cable sockets(lugs) up to 300mm².
Designed to accept standard 'J' type fuse links
Fully compliant with the requirements of BS 7656:1993
Fully meeting the design criteria of IP43
Fuse links
This fused Cut-out is designed to accommodate standard wedge type fuse links to BS88 PART 5:1988.Tested and approved for category of duty 415AC80.
Fixing centre requirement is 82mm.
Standard fuse link rating range from 20A to 400A.
