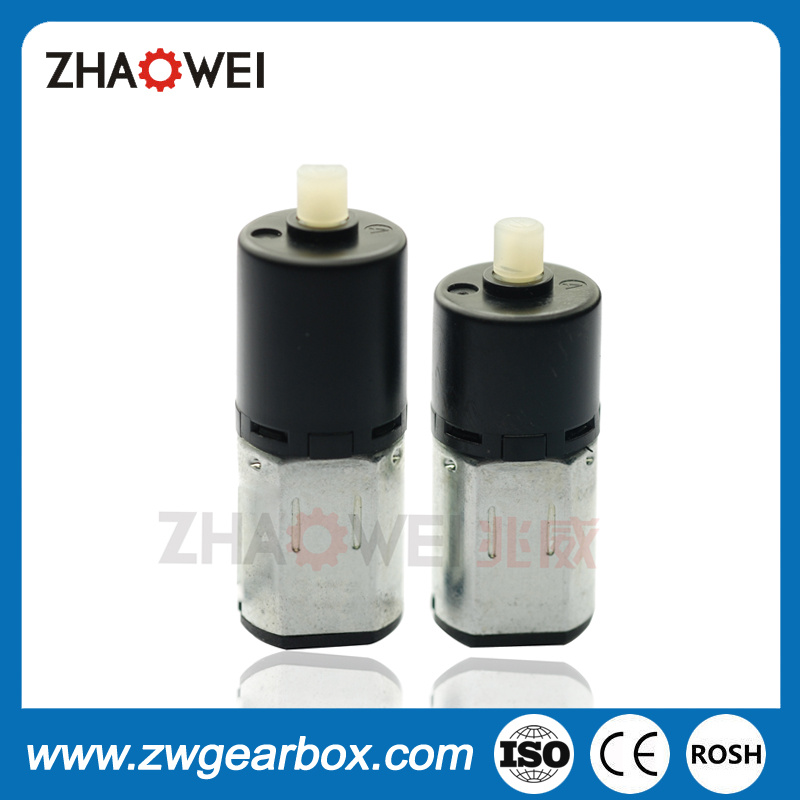

Diameter 12mm Micro Worm Gear Motor

Name: Diameter 12mm Micro Worm Gear Motor
Brand: all-electronics-online.com
SKU: 771982235
Availability: InStock
Rating: 4.9 (64 reviews)

Price:	US $ 4.5-6/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Prod Model:

ZWPD012012-384

Markets:

North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Rated Voltage:

3.0 V

Load Speed:

26rpm

Load Current:

135mA(Max)

No Load Speed:

29rpm

No Load Current:

95mA(Max)

Load Torque:

243gf.Cm

Max Rated Torque:

550gf.Cm

Max Instant Torque:

1100gf.Cm

Gear Ratio:

384:1

Motor Type:

Worm Gear Motor

Application:

Power Tools

Operating Speed:

Low Speed

Structure And Working Principle:

Brush

Excitation Mode:

Permanent Magnet

Casing Protection:

Drip-Proof

Type:

Gearbox

Certification:

RoHS

Brand:

Zhaowei

Diameter 12mm Micro Worm Gear Motor

Product Description

customizable as requirements
appoved by RoHS, ISO 14001, ISO 9001, TS 16949
Partners: HUAWEI, Panasonic, OPPO, Brose, Bosch, SAMSUNG, other World Fortune 500 companies, etc.

Specification

Model: ZWPD012012-384

Rated Voltage: 3.0 V

No Load Speed: 29 rpm

No Load Current: 95 mA MAX

Rated Load Speed: 26 rpm

Rated Load Current: 135 mA MAX

Rated Load Torque: 243 gf.cm

Max Rated Torque of Gear Box: 550 gf.cm

Max Instant Torque of Gear Box: 1100 gf.cm

Overall Length L: 33.3 mm

Gear Box Length L1: 18.3 mm

We also have the following items with different gear ratio:

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque		Overall Length L
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWPD012012-24	3.0	478	90	417	130	27	2.6	25.7	250	800	24	10.7
ZWPD012012-36	3.0	319	90	278	130	41	4.0	25.7	250	800	36	10.7
ZWPD012012-64	3.0	174	90	156	135	54	5.3	29.5	350	1000	64	14.5
ZWPD012012-96	3.0	116	90	104	135	81	7.9		350	1000	96
ZWPD012012-144	3.0	77	90	69	135	122	11.9		350	1000	144
ZWPD012012-216	3.0	52	90	46	135	182	17.9		350	1000	216
ZWPD012012-256	3.0	44	95	39	135	162	15.9	33.3	550	1100	256	18.3
ZWPD012012-384	3.0	29	95	26	135	243	23.8		550	1100	384
ZWPD012012-576	3.0	19	95	17	135	365	35.7		550	1100	576
ZWPD012012-864	3.0	13	95	12	135	547	53.6		550	1100	864
ZWPD012012-1296	3.0	9	95	8	135	550	53.9		550	1100	1296

above specifications just for reference and customizable according to requirements

Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk
Office automation equipments	CD-ROM, OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, automatic vending machine
Toys and models	radio control model, automatic cruise control, ride-on toy
Medical equipments	blood pressure meter, breath machine
Industrials	air freshener, display, flow control valves
Electric power tools	electric drill, screwdriver
Precision instruments	monitor, optics instruments

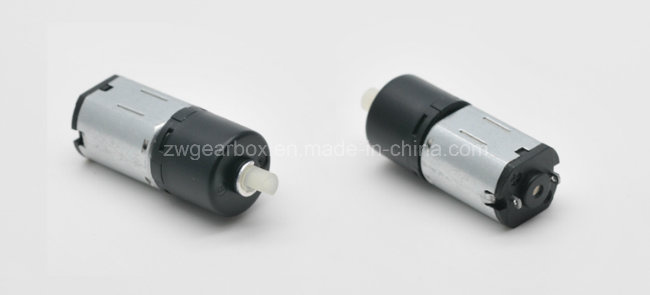

Product details show

Our Services

ODM & OEM
Gearbox design and development
Related technology support

Packaging & Shipping

1) Packing Details

packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.

2) Shipping Details

samples will be shipped within 10 days;
batch order leading time according to the actual situation.

Company Information

Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.

1) Competitive Advantages

18-year experience in manufacturing motor gearbox
Experienced Staff: average 7-year experience in R&D , ODM &OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted

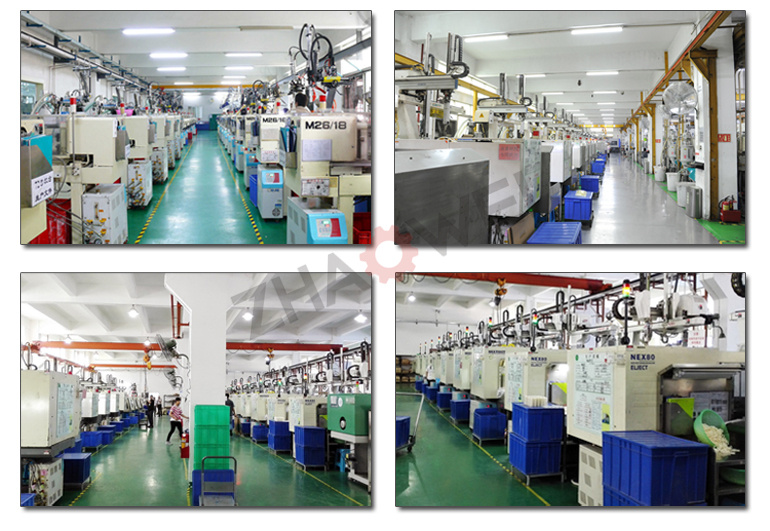

Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.

2) Main Products

Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm;
Customized worm and gear transmission machinery;
Precise electromechanical motion module;
Precise component and assembly of plastic and metal powder injection.

Certifications

We Have passed to hold ISO9001, ISO14001 and TS16949.

and more...

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have strong R&D capability, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .
